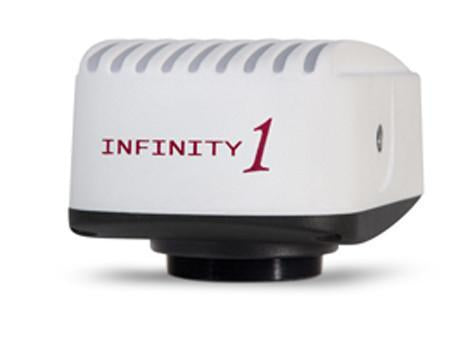

Lumenera 1-5C 5 Megapixel CMOS Digital Camera

Lumenera 1-5C 5 Megapixel CMOS Digital Camera

Available: In Stock
Wishlist
$2,610.00 $2,900.00
Request Quote
INFINITY1-5C — 5.0 Megapixel Color CMOS Camera

Lumenera’s INFINITY1-5 digital camera is designed to be a cost-effective, versatile solution for documentation in life science, clinical, material science and industrial applications.

For applications that demand extremely high resolution, the INFINITY1-5 camera produces a full 2592 x 1944 video preview with speeds of 7 frames per second (fps) in both color and monochrome formats. This full 5.0 megapixel sensor allows users to view fine detail in samples and provide a high resolution preview to large monitors and overhead projectors.

Years of experience in the microscopy market have allowed Lumenera to develop specialized color algorithms ensuring excellent color reproduction in samples ranging from stained cells to wafer inspection.

Every INFINITY camera includes INFINITY ANALYZE software for advanced camera control, image processing, measuring and annotation, as well as INFINITY CAPTURE, an intuitive user interface which includes all of the basic features needed to control your INFINITY camera and capture images.

Product Highlights:

  • Low noise progressive scan 1/2.5" 5.0 megapixel image sensor
  • Full color sub-windowing for rapid focus and scanning of samples
  • 7 fps at full 2592x1944 resolution and 60 fps at 640x480 resolution
  • High-speed USB 2.0 for ease of installation on any computer
  • Selectable 8 & 12-bit pixel data modes

    Technical Specifications:

    Camera Sensor
    Image Sensor: Micron MT9P031, 1/2.5” format, CMOS, color or mono, 5.7 x 4.28 mm array
    Effective Pixels: 2592 x 1944, 2.2µm square pixels
    Frame Rate: 7 fps at 2592 x 1944, 60 fps at 640 x 480
    Dynamic Range: 49 dB
    Bit Depth: 8 or 12-bit
    Read Noise: 20 e-
    Camera Controls
    Dimensions: 2.25 x 3.85 x 1.56 inch / 57.15 x 97.79 x 39.62 mm
    Mass: 330g
    Power Requirement: USB bus power only
    Power Consumption: ~2.5 W
    Operating Temperature: 0 to +50 °C
    Operating Humidity: 5 to 95%, non-condensing
    Exposure Range: 106 µs to 3 s (video), 106 µs to 3 s (snapshot)
    Shutter: Rolling shutter with single frame capture
    ROI: Any multiple of 8 x 8 pixels, 32 x 32 pixels minimum
    Exposure Control: Automatic and manual
    White Balance: Automatic and manual
    Gain Range: 1 to 3.38 x
    Interface: USB 2.0 high-speed interface
    Lens Mount: Adjustable C-mount standard

    Software compatible with Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.
