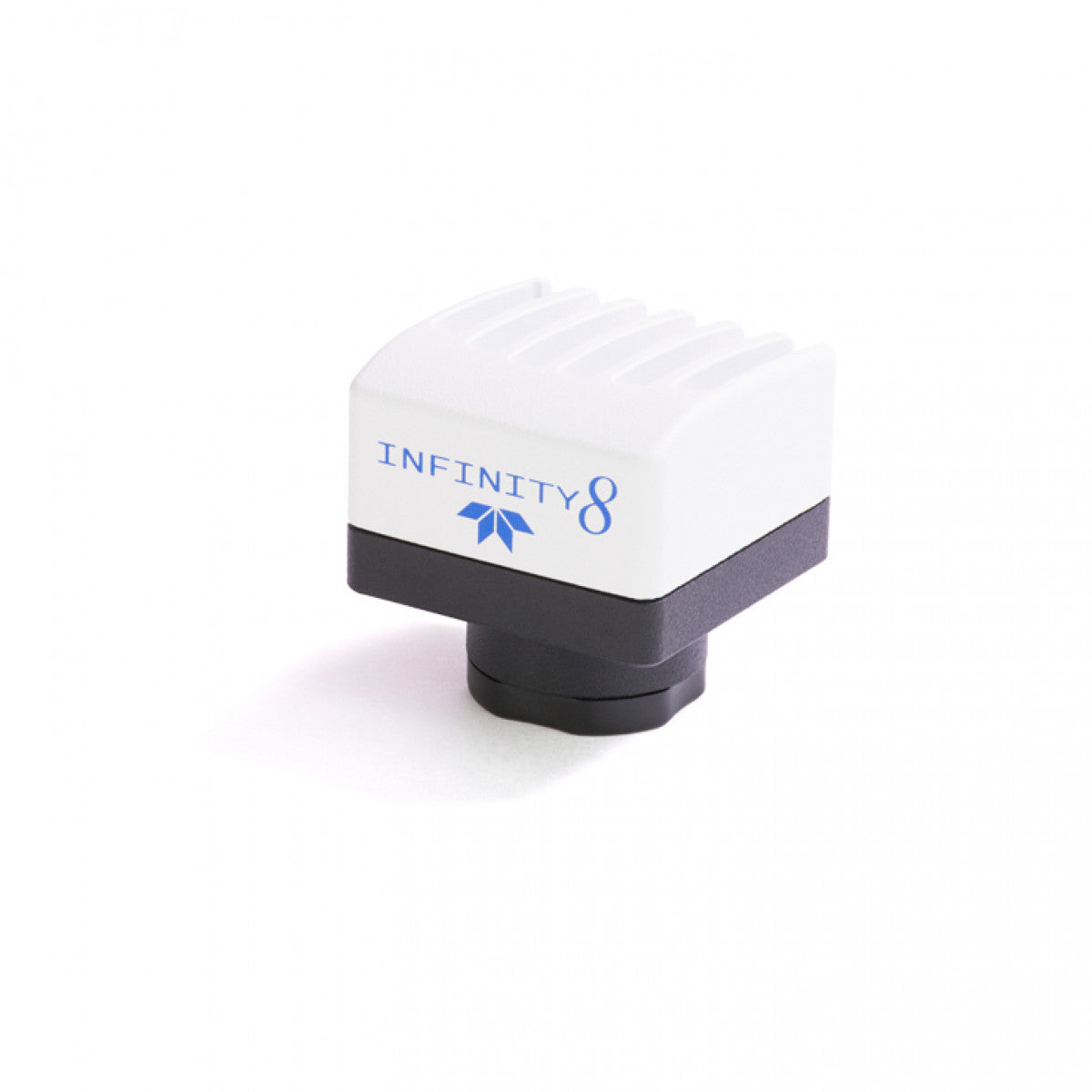

Lumenera INFINITY 8-8C Color Microscope Camera
Lumenera INFINITY 8-8C Color Microscope Camera
|
SKU: i8-LC00-08M
Couldn't load pickup availability
Description
The new INFINITY8-8C camera is designed to reproduce what your eye sees in the eyepiece, complete with an intuitive software package all for a price that will fit within the most tight budgets. Stream live videos or capture still images and share with ease.
The INFINITY8-8C provides crisp color images for applications requiring critical color reproduction and consistency.
Included with the INFINITY8-8C is the latest microscopy software from Teledyne Lumenera, INFINITY ANALYZE 7. This software suite provides a breadth of features including support for both brightfield and fluorescence imaging. The user-friendly interface makes capturing, annotating and other workflow items easy. Combined with Teledyne Lumenera’s world class technical assistance center (TAC), support is a click away.
- Color CMOS sensor with 1/1.8” optical format
- 8.3 megapixel camera with fast frame rates of 96 fps at full resolution (3840 x 2160)
- Direct USB3 interface for fast image delivery and simplified connectivity
- Compact form factor
- Support for locking industrial micro USB on the back for power and control
- INFINITY ANALYZE microscopy software included with purchase. No annual license fees. (camera requires INFINITY ANALYZE .7.0.3 or higher)
- Software support for Windows and Mac, along with third-party plugins for MetaMorph and MicroManager
- Selectable 8 or 12-bit pixel data
- Recommended coupler: 0.5x - 0.63x
| Camera Sensor | ||
|---|---|---|
| Image Sensor | SONY IMX334; CMOS format, color, 1/1.8” diagonal | |
| Effective Pixels | 3840×2160, 4.5μm square pixels | |
| Frame Rate | 96 fps maximum at full resolution in 8-bit or 12-bit mode | |
| Signal/Noise | 38.5 dB | |
| Digital Output | 8 or 12-bit | |
| Read Noise | 2.0 e- | |
| Camera Controls | ||
| Mass | 108g | |
| Power Requirement | 5V via Power Over USB3 Cable. | |
| Power Consumption | ~3.6 Watts | |
| Operating Temperature | 0° C to 50° C | |
| Operating Humidity | 10%-70%, Non-condensing | |
| Integration Time | Programmable in increments of 1μs; minimum (in μs) is 14 μs maximum is 76 minutes; Pulse controlled via Trigger pulse width. | |
| Shutter | Rolling Shutter with Global row reset function | |
| ROI | Full Frame | |
| Exposure Mode | Automatic / Manual | |
| White Balance | Automatic / Manual | |
| Gain | In-sensor Gain; 72 dB | |
| Interface Connector | USB 3.1 connector, A-male to computer | |
| Dimensions (L x W x H) | 41.5 mm (max) x 45 mm x 45 mm | |
| Lens Mount | C-Mount lens adapter | |
| Binning Options | 2 x 2 | |
