Labomed Lx400 Microscope Series
Labomed Lx400 Microscope Series

Labomed Lx400 Microscope Series

Available: In Stock
  • Binocular or Trinocular Head
  • Plan Achromat 4x, 10x, 40x, 100x Objectives
  • Rackless Stage
  • Halogen or LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Wishlist
  • Product SKU: 9126001
$986.00 $1,038.00
Request Quote

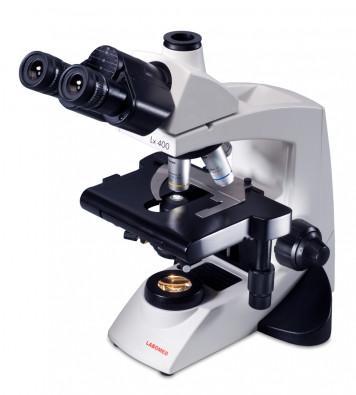

The Labomed Lx400 microscope is designed to offer high quality crisp images with user friendly features at an attractive price point. The binocular or trinocular head is 360 degree rotatable and come with a pair of 10x/20mm FOV eyepieces. The eyepices accept a 26mm reticle, and a dual viewing unit is available for this microscope. The reversted quadruple nosepiece comes with RP Infinity Plan Achromat 4x, 10x, 40x, and 100x objectives. The mechanical stage is a rackless stage with a scratch resistant finish. A fully focusable 1.25 N.A. condenser is provided with this microscope. The ergonomically positioned coarse / fine focus offers smooth and precise movements. You can choose between 20 watt halogen, 30 watt halogen, or LED rechargeable illumination.



Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head:

Siedentopf Binocular

OR

Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm

Dual Viewing Unit also available

Eyepiece: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination:
Options:
  • 6v 20w Halogen Up to 2,000 hours of Halogen lamp life
  • 6v 30w Halogen Up to 500 hours of Halogen lamp life
  • LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.

The Labomed Lx400 microscope is designed to offer high quality crisp images with user friendly features at an attractive price point. The binocular or trinocular head is 360 degree rotatable and come with a pair of 10x/20mm FOV eyepieces. The eyepices accept a 26mm reticle, and a dual viewing unit is available for this microscope. The reversted quadruple nosepiece comes with RP Infinity Plan Achromat 4x, 10x, 40x, and 100x objectives. The mechanical stage is a rackless stage with a scratch resistant finish. A fully focusable 1.25 N.A. condenser is provided with this microscope. The ergonomically positioned coarse / fine focus offers smooth and precise movements. You can choose between 20 watt halogen, 30 watt halogen, or LED rechargeable illumination.



Specifications
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head:

Siedentopf Binocular

OR

Trinocular 30° inclined, 360° rotatable, Inter pupillary distance 48 - 75mm

Dual Viewing Unit also available

Eyepiece: Widefield 10x/20mm focusable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: Options:
  • 6v 20w Halogen Up to 2,000 hours of Halogen lamp life
  • 6v 30w Halogen Up to 500 hours of Halogen lamp life
  • LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.

  Please Contact Us for all additional parts and accessories
