Accu-Scope EXC-120 LED Microscope

Recently viewed

Accu-Scope EXC-120 LED Microscope
Accu-Scope EXC-120 LED Microscope
Accu-Scope EXC-120 LED Microscope
Accu-Scope EXC-120 LED Microscope
Accu-Scope EXC-120 LED Microscope

Accu-Scope EXC-120 LED Microscope

  • SKU: EXC-120-3
$595.00 $718.00
  • Binocular or Trinocular
  • Achromat or Plan Achromat Objectives
  • All Metal Gears
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Head Type
Objectives
Request Quote

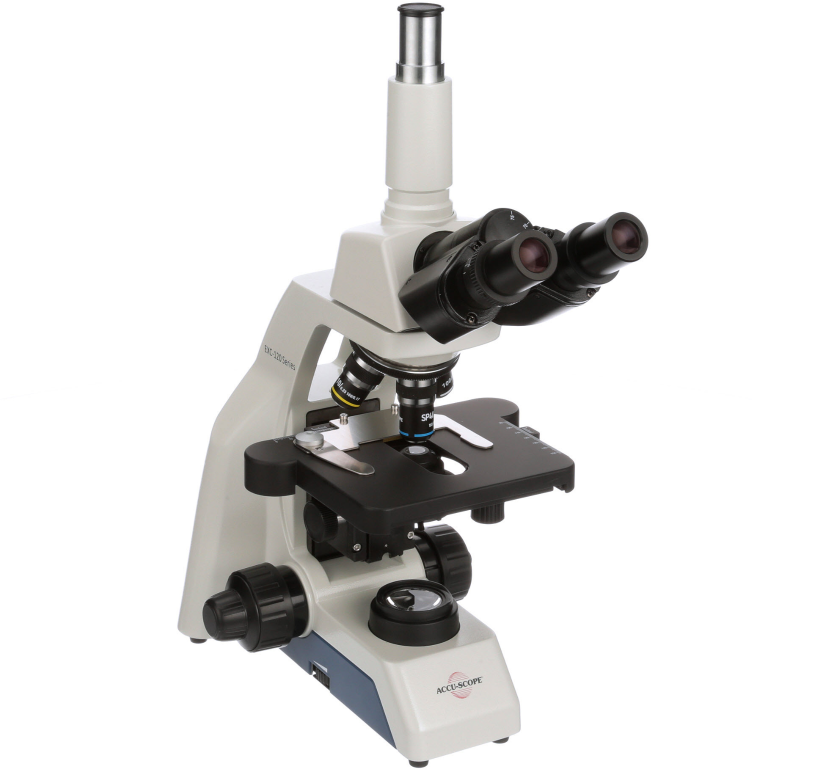

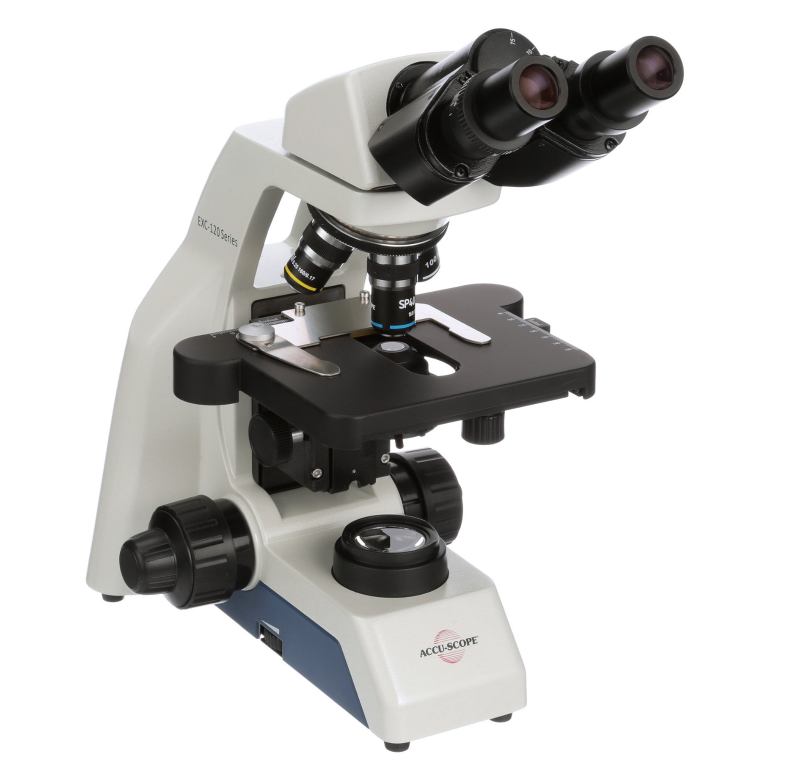

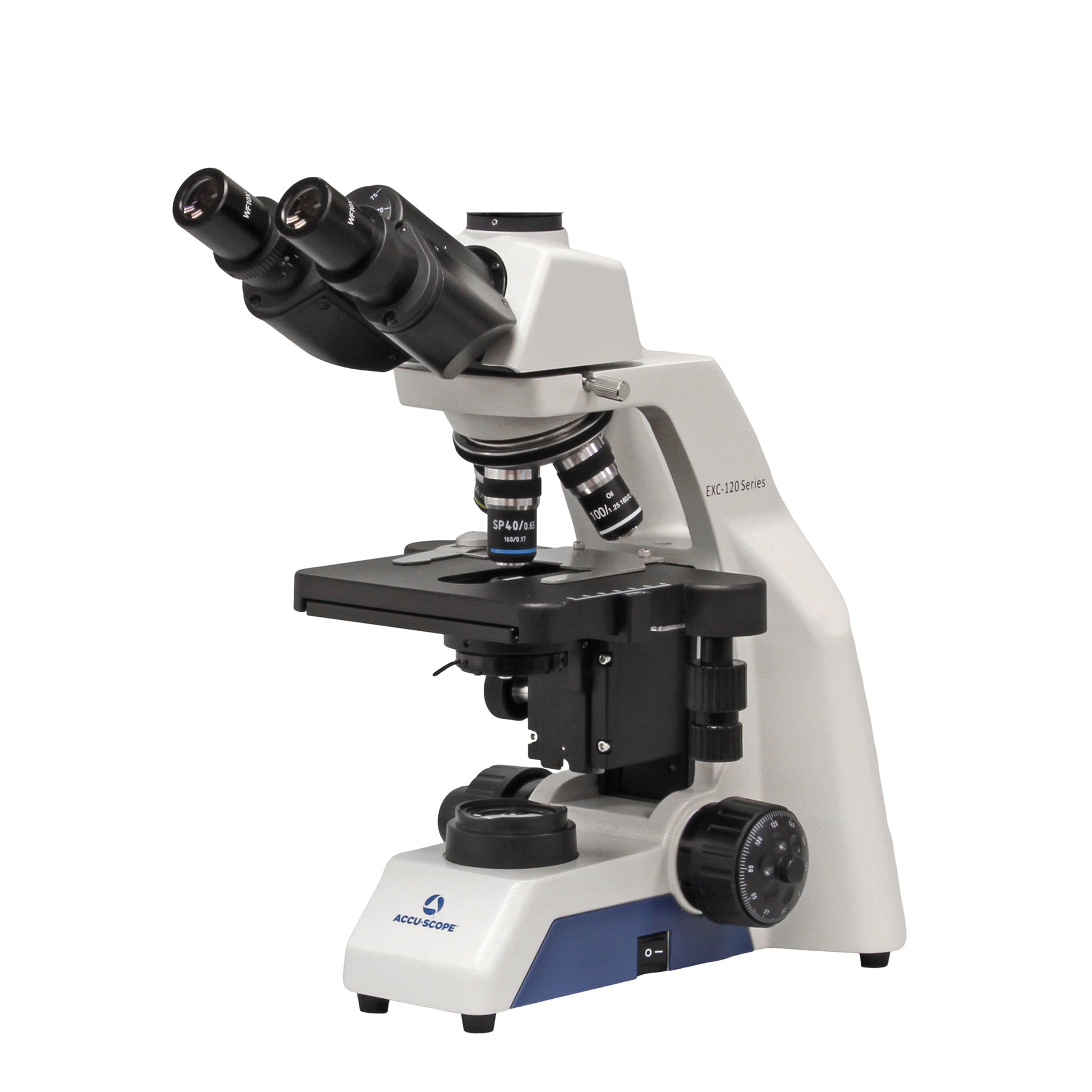

The Accu-Scope EXC-120 microscope is ideal for education and veterinary applications. It's solid construction and user friendly features make this microscope best in it's class. The microscope comes with your choice of a binocular or trinocular viewing head. The 10x eyepieces lock into position, and provide an 18.5mm field of view. A four position nosepiece can come with Semi-Plan or Plan Achromat objectives. The XY mechanical stage is rackless, so no bar protrudes out  the side of the microscope when you move the stage. The 1.25 N.A. condenser focuses fully up and down so you can adjust for contrast and optimal resolution. The microscope features a variable LED light source which provides over 20,000 hours of use.



  • Eyepieces Lock In To Avoid Tampering
  • Integrated Carry Handle For Safe Transportation
  • Rackless XY Mechanical Stage
  • Integrated Cord Wrap
  • Solid Construction - All Metal Gears
Specifications:
Head: Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment
Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles
Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
Objectives:

DIN Semi Plan Archomat 4x,10x, 40x

DIN Semi Plan Archomat 4x,10x, 40x, 100x Oil

Or

DIN Plan Achromat 4x, 10x, 40x, 100x Oil

Stage: Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
Focusing: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
Illumination: Variable LED illumination; bulb life rated for 20,000 hours
Accessories: Dust cover, immersion oil and instruction manual included
Warranty: 5 year limited warranty for parts, labor and electronic components.
1 year warranty on LED bulb

The Accu-Scope EXC-120 microscope is ideal for education and veterinary applications. It's solid construction and user friendly features make this microscope best in it's class. The microscope comes with your choice of a binocular or trinocular viewing head. The 10x eyepieces lock into position, and provide an 18.5mm field of view. A four position nosepiece can come with Semi-Plan or Plan Achromat objectives. The XY mechanical stage is rackless, so no bar protrudes out  the side of the microscope when you move the stage. The 1.25 N.A. condenser focuses fully up and down so you can adjust for contrast and optimal resolution. The microscope features a variable LED light source which provides over 20,000 hours of use.



  • Eyepieces Lock In To Avoid Tampering
  • Integrated Carry Handle For Safe Transportation
  • Rackless XY Mechanical Stage
  • Integrated Cord Wrap
  • Solid Construction - All Metal Gears
Specifications:
Head: Binocular, or trinocular, Inclined 30° and rotatable 360°, Interpupillary distance adjustment
Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent tampering and accept 19mm reticles
Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
Objectives:

DIN Semi Plan Archomat 4x,10x, 40x

DIN Semi Plan Archomat 4x,10x, 40x, 100x Oil

Or

DIN Plan Achromat 4x, 10x, 40x, 100x Oil

Stage: Rackless XY Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
Condenser: N.A. 1.25 Abbe condenser on rack and pinion with iris diaphragm and swing-out filter holder
Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
Focusing: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
Illumination: Variable LED illumination; bulb life rated for 20,000 hours
Accessories: Dust cover, immersion oil and instruction manual included
Warranty: 5 year limited warranty for parts, labor and electronic components.
1 year warranty on LED bulb
