3.5X-90X Zoom Stereo Trinocular Microscope on Dual-Arm Boom Stand with Dual-Fiber-optic LED Illuminator + 18MP USB3.0 Camera

3.5X-90X Zoom Stereo Trinocular Microscope on Dual-Arm Boom Stand with Dual-Fiber-optic LED Illuminator + 18MP USB3.0 Camera

This stereo industrial inspection microscopy system includes a triinocular 3.5-90X zoom microscope head, a double-arm boom, a 30 Watt LED fiber-optic illuminator, and a 18MP...

$1,184.98
Request Quote
Add to wishlist

This stereo industrial inspection microscopy system includes a triinocular 3.5-90X zoom microscope head, a double-arm boom, a 30 Watt LED fiber-optic illuminator, and a 18MP USB3.0 camera. It is a perfect inspection viewing system offering sharp crystal clear images. With 30mm super widefield high-eyepoint eyepieces and super widefield reduction objective lenses, the microscope gives extremely large zoom magnification range (26:1) and large working distance (8"). The double-arm boom stand allows you to turn the microscope head around three different axes (x, y and z); that is, you can point the microscope head in any directions you wish. With the addition of the trinocular photo port, you can use a camera to view live images on a large or small-format monitor, as well as record the inspection process.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

The illuminator comes with two 22"-long metal-sheathed fiber-optic cables, and provides bright and cool lighting. The fiber optic cables are flexible and can be bent into various positions. This inspection microscopy system is great for both industrial and biological applications. It is an ideal instrument for research labs, gemologists, and anyone in semiconductor and electronic industries.

Features :

  • A turnkey package of inspection microscope with Fiber Optic Light
  • High quality trinocular zoom head offering crystal clear stereo images
  • 3.5X-90X extremely large zoom magnification range
  • Versatile double-arm boom stand covering large working area
  • Turning microscope head around three different axis (x, y, and z)
  • Allowing you to point microscope head in ANY direction you wish
  • 45° inclined trinocular head with SUPER widefield high-eyepoint eyepieces
  • SUPER widefield 30mm WF10X/20 eyepieces (10X power with 20mm field of view - see the difference in the above picture)
  • High resolution optical system with great flatness and contrast
  • Sharp stereo erect images over a wide field of view
  • Original true color microscopy images
  • Dual eye tubes with adjustable diopter
  • Extremely large working distance up to 8" (200mm)
  • Sturdy cast metal boom stand finished with stain-resistant enamel
  • Accurate alignment ensuring a fatigue-free long hour view
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Rubber eye guards included
  • 30 watt LED fiber-optic light source with variable intensity
  • Built-in Heat Filter
  • Radiator and cooling space allows no cooling off time after use
  • 6400 Degrees Kelvin Lamp Color Temperature
  • Manufactured under ISO 9001 quality control standard
  • Excellent five (5) year manufacturer warranty
  • One (1) year warranty for electrical accessories
  • Unbeatable low price guaranteed or the difference back!
  • Satisfaction guaranteed or your money back!
  •

    Specifications :

  • Head: 45° inclined 360° swiveling trinocular
  • Eyepieces: 30mm SUPER widefield high-eyepoint WF10X eyepieces with 20mm field of view
  • Auxiliary Objective Lens: 0.5X 2.0X
  • Objective: 0.7-4.5X
  • Zoom Range: 26:1
  • Diopter Adjustment: ±5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: up to 8" (200mm)
  • Boom Stand: Boom Stand: 20" double arms (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
  • Fiber Optic 30 Watt LED Light Source with Variable Intensity
  • Power Supply: 100-240V AC to 12V DC adapter
  •

    Camera Specifications:

  • Sensor: Aptina (color)
  • Sensor Type: CMOS
  • Sensor Size: 6.14x4.61mm
  • Pixel Size: 1.25
  • Resolution: 18.0MP
  • Frame Rate: 32.2fps @ 1228x922, 18.1fps @ 2456x1842, 5.6fps @ 4912x3684
  • Sensitivity: 0.62 V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  •

    Packing List :

  • One Trinocular Stereo Zoom Head
  • One Pair of SUPER Widefield WF10X/20 Eyepieces
  • Two Barlow Lenses: 0.5X 2.0X
  • One Double-Arm Boom Stand with Focus Rack
  • One 30W Variable Intensity LED Light Source
  • Two Fiber Optic Gooseneck Lights
  • One Pair of Eye-Guards
  • User's Manual

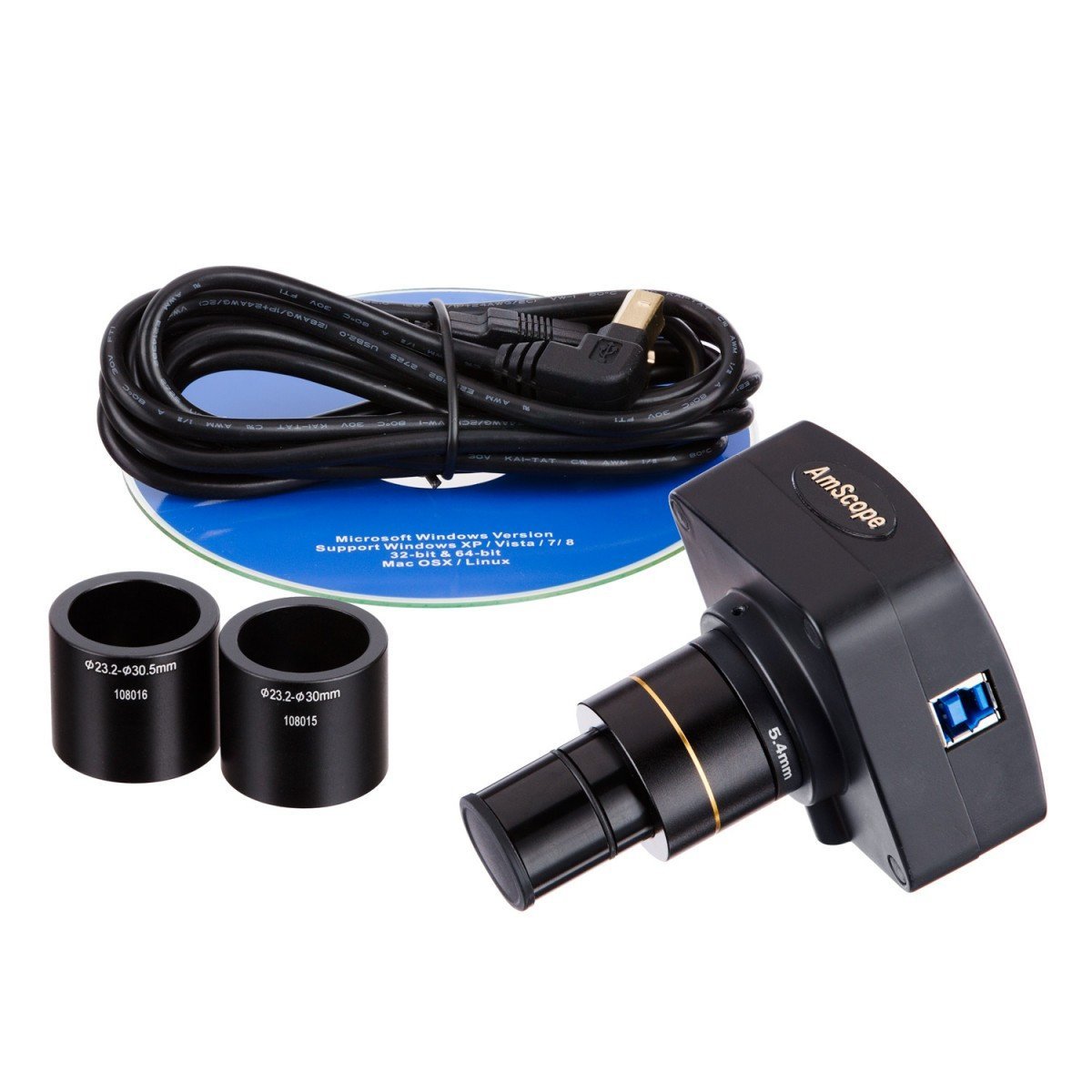

  • One 18MP USB3.0 Digital Camera Camera
  • One 0.5X reduction lens
  • One 6' (1.8m) USB Cable
  • Two Mounting Adapters
  • One software CD
  • AmScope SM-4TZ-30WY-18M3
