VIEW4K High Definition 4K HDMI, WiFi, USB Microscope Camera

Recently viewed

VIEW4K High Definition 4K HDMI, WiFi, USB Microscope Camera
VIEW4K High Definition 4K HDMI, WiFi, USB Microscope Camera
VIEW4K High Definition 4K HDMI, WiFi, USB Microscope Camera
VIEW4K High Definition 4K HDMI, WiFi, USB Microscope Camera

VIEW4K High Definition 4K HDMI, WiFi, USB Microscope Camera

  • SKU: VIEW4K
$1,400.00 $2,000.00
  • 4K High Definition Camera
  • HDMI, WiFi, LAN, USB Output
  • Feature Rich Built-In Software VIA HDMI Output
  • Measurements, Stitching, Time-Lapse, Extended Depth Of Focus
  • Add To Any Microscope
Quote Request

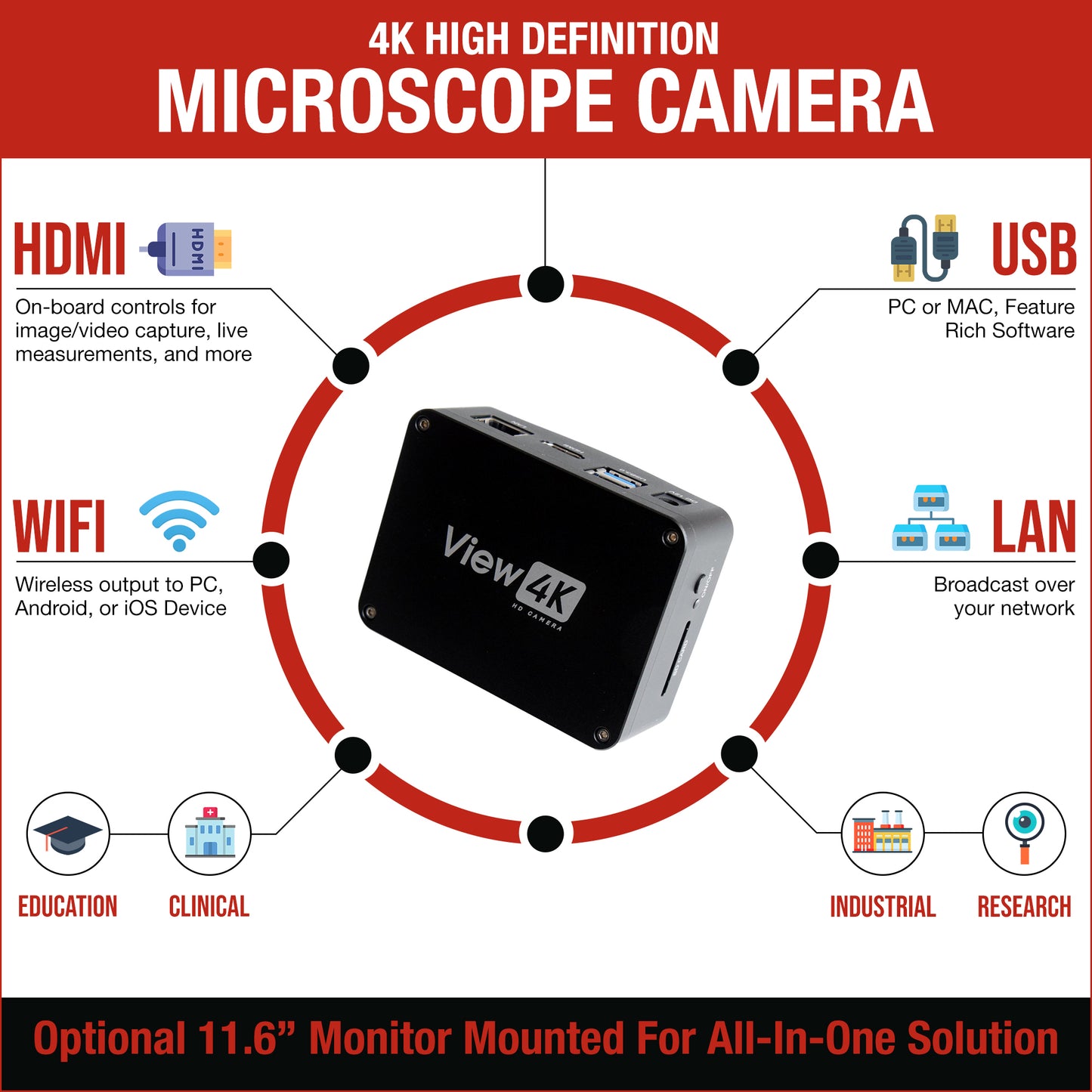

The View4K is a powerful new smart microscope camera that produces high-definition images of amazing clarity, and can output HDMI (4K Monitor NOT required), USB, or WiFi, or Network. You can choose the option to have an 11.6" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, and or use any of the other output methods listed below. For an all in one streamlined solution checkout the View4K with a 11.6" viewing screen.

HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either an SD card or USB stick to transfer to your computer. Added features include custom DXF overlays, and record audio with your videos with a microphone. Standing out from other HDMI cameras the View4K allows you more control such as giving you the option to name your image / video as its saved - rather than just saving them in number order.

USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.

WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use.  Output WiFi to use the included computer software.

LAN / Network Mode: Connect to your network with the LAN port to view images on a PC through the InFocus software, Media player, or device via the app.



Resolution (Live): 4K (3840 x 2160)
Mega Pixels: 8.0 M.P.
Sensor: 1/1.8" Sony IMX334 - CMOS
Pixel Size: 2.0 x 2.0μ
Sensitivity: 505mV @ 1/30s (f5.6)
Shutter: Rolling
Frame Rate:

HDMI 60 FPS @ (3840 x 2160)

HDMI 60 FPS @ (1920 x 1080)

WiFi, GE 30 FPS @ (3840 x 2160)

Image & Video Capture:

HDMI - Capture to removable SD card

PC - Capture w/ software

WiFi - Capture w/ APP

Exposure Time: 0.001 sec - 10.0 sec
Output Modes: HDMI, WiFi, USB, LAN (Network)
HDMI Compatibility: Any HDMI input monitor, projector, TV (4K Not Required)

Computer

Compatibility:

Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
MAC via WiFi

Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed

PC Software:

Windows:

Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping

Mac:

Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Warranty: 1 year
