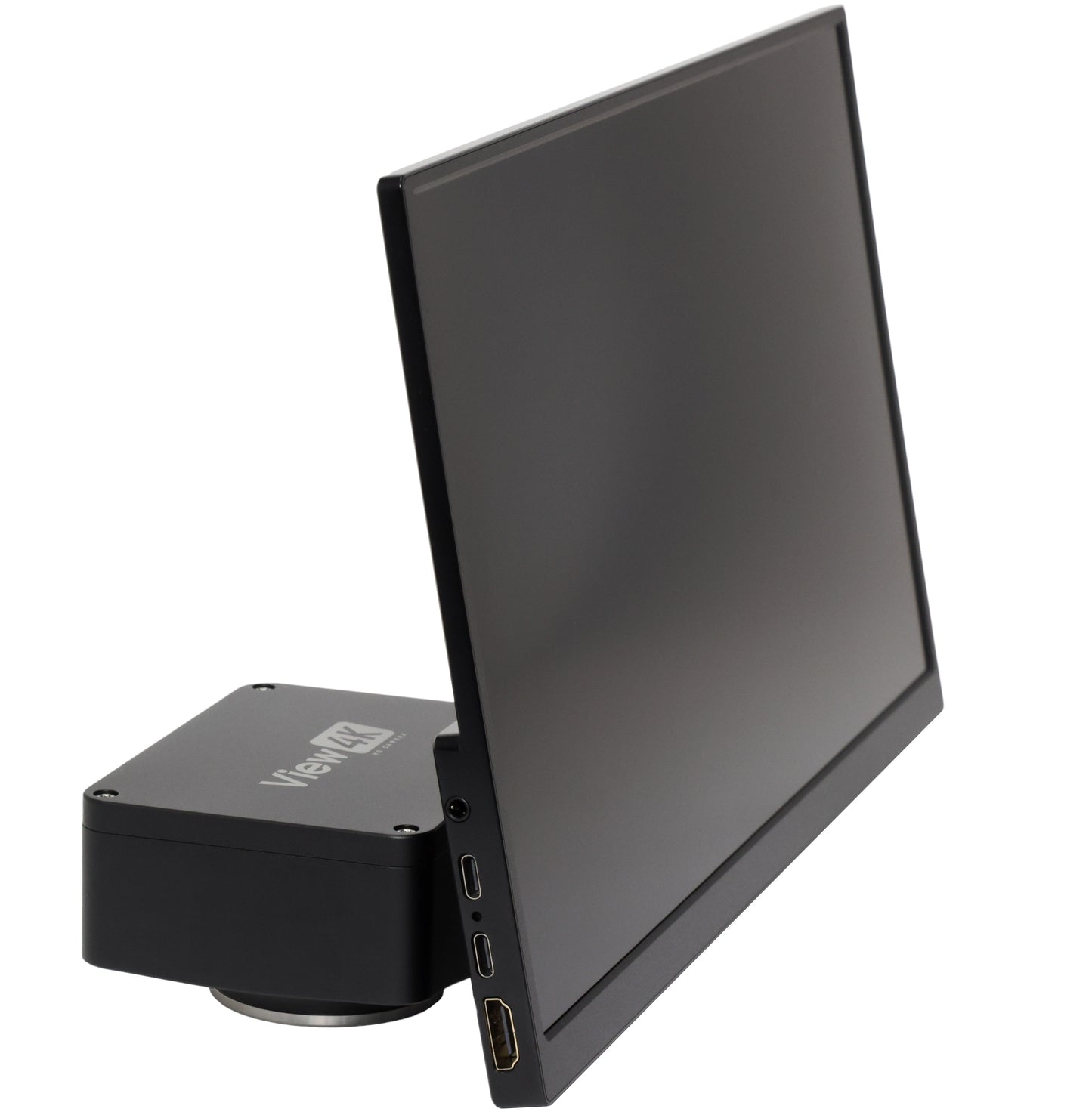

View4K 4K Digital Microscope Camera With Screen - HDMI, USB, WiFi
- SKU: VIEW4K-S
- 4K High Definition Camera
- HDMI, WiFi, LAN, USB Output
- Feature Rich Built-In Software VIA HDMI Output
- Measurements, Stitching, Time-Lapse, Extended Depth Of Focus
- Add To Any Microscope
The View4K is a powerful new microscope camera that produces high-definition images of amazing clarity, and can output HDMI (4K Monitor NOT required), USB, or WiFi, or Network. This version of the View4K comes with an 11.6" HD screen which mounts to the front of the camera to provide an all-in-one streamlined solution. In addition to using the screen, you can use the output methods. The camera can simultaneously output an image on the screen and with the additional output methods
HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either an SD card or USB stick to transfer to your computer. Added features include custom DXF overlays, and record audio with your videos with a microphone.
USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.
WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use. Output WiFi to use the included computer software.
LAN / Network Mode: Connect to your network with the LAN port to view images on a PC through the InFocus software, Media player, or device via the app.
Resolution (Live): | 4K (3840 x 2160) |
Mega Pixels: | 8.0 M.P. |
Sensor: | 1/1.8" Sony IMX334 - CMOS |
Pixel Size: | 2.0 x 2.0μ |
Sensitivity: | 505mV @ 1/30s (f5.6) |
Shutter: | Rolling |
Frame Rate: |
HDMI 60 FPS @ (3840 x 2160) HDMI 60 FPS @ (1920 x 1080) WiFi, GE 30 FPS @ (3840 x 2160) |
Image & Video Capture: |
HDMI - Capture to removable SD card PC - Capture w/ software WiFi - Capture w/ APP |
Exposure Time: | 0.001 sec - 10.0 sec |
Output Modes: | HDMI, WiFi, USB, LAN (Network) |
HDMI Compatibility: | Any HDMI input monitor, projector, TV (4K Not Required) |
Computer Compatibility: |
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed |
PC Software: |
Windows: Live video preview Mac: Live video preview |
Warranty: | 1 year |
