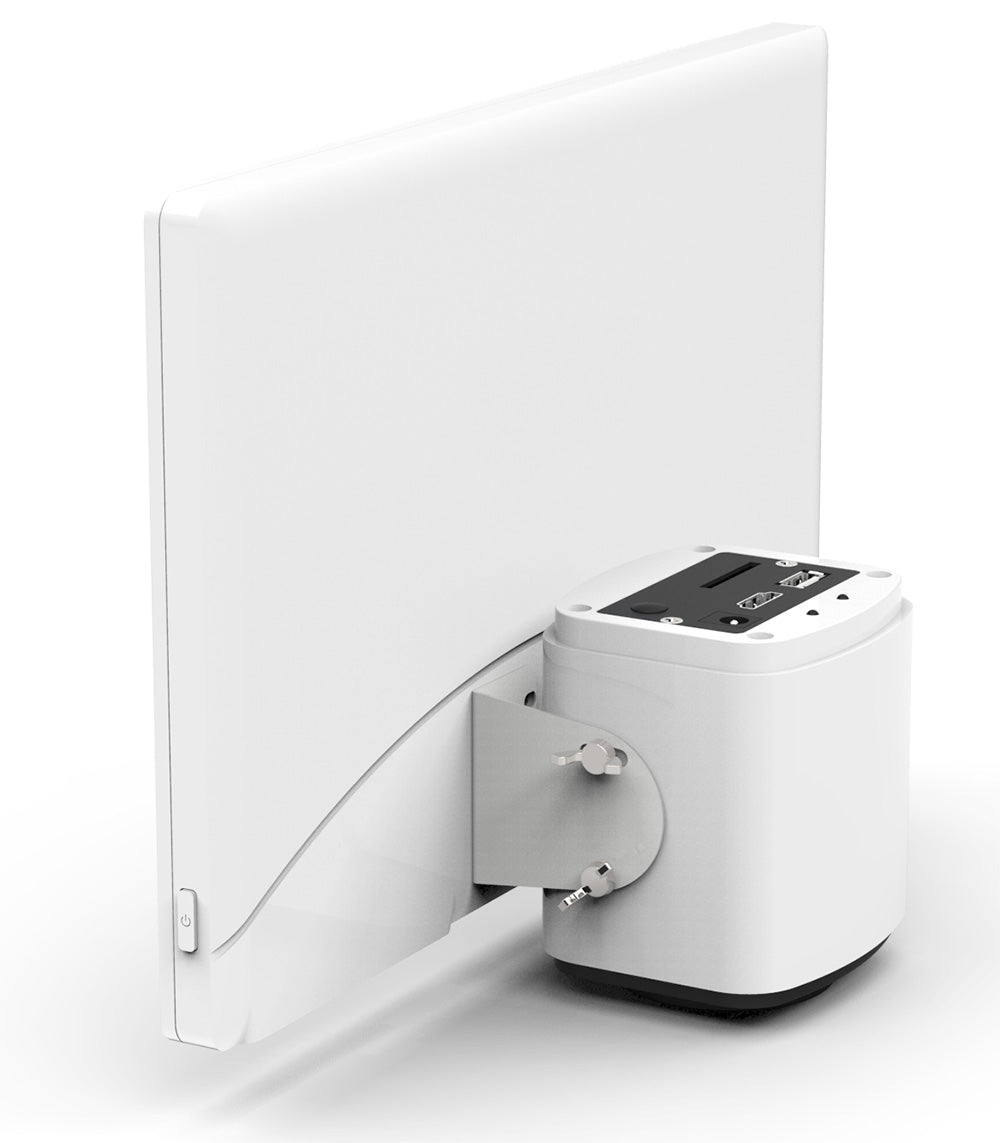

The new Labomed Vega camera is a high definition CMOS camera with super high 6.0 M.P. resolution. It offers on of the fastest frame rates in its class, high contrast, and unparalleled color accuracy. This camera offers HDMI or USB output methods. Using HDMI output you can view a real time live image on any HDMI input monitor. Use the SD card interface to capture images / videos. Additionally HDMI mode allows you to do live measurements, calibrations, and parameter settings. For a streamlined solution Labomed offers an optional screen that can mount to the camera for an all in one digital solution. You can also take advantage of USB output to your computer to capture directly to your PC.



Sensor 1/2.8” 6.0 MP Color CMOS
Active area 5.70mm x 4.28mm
Sensor resolution Dynamic 1920x1080 pixels
Static 3264x1836 pixels
Pixel Size 2.7μm x 2.7μm
A/D conversion 24 Bit RGB
Pixel clock 48 MHz
Dynamic range 65 dB
Max. Exposure 1ms-10s auto/manual, white balancing
Frame rate 30 fps (@1080p)
Image processing

High speed dual FPGA, progressive scan, advanced noise reduction

Interface USB 3.0, HDMI, SD card, mouse control
Optical connection C- Mount
Voltage supply AC power (universal)
Power indication Green LED indicating power on and ready for capture
Measurement Geometric and axial, calibration
Ambient conditions

Operating Temperature: 0-60˚C
Humidity: 45-85%

Software Requirments Microsoft Windows (XP and later versions) / Linux / Mac
