Accu-Scope Excelis 4K Ultra High Definition HDMI & USB Camera

SKU: AU-800-4K

$1,400.00 ~~$1,695.00~~

Ultra High Definition 4K Output
HDMI, USB, Ethernet
Stand Alone HDMI Controls
Advanced PC Software Features

Quote Request

The new Excelis™ 4K Ultra High Definition color camera delivers fast, full 4K, 2160p live images to a 4K monitor. The Excelis 4K produces video and images with outstanding color performance, exceptional resolution and clarity for microscopy imaging in clinical, research and educational environments. The Excelis 4K gives you 3 ways to connect and view images. Connect directly to a 4K monitor with the included HDMI cable and control the camera via its built-in software -- no need for a PC! Connect the camera to a PC with the supplied USB 3.0 cable and use our full-featured CaptaVision+ imaging software to control the camera, snap and measure images. Connect the camera to an Ethernet port and it can be controlled via a PC connected to the same local area network (LAN) via CaptaVision+ software. The new CaptaVision+ software also brings a new dimension to imaging with real-time stitching, real-time intelligent flatfield correction, depth of field fusion, dynamic measurements, and much more!

Specifications

Incredible resolution (4X higher than HD!) and superb color rendition
View full 4K 2160p live images at 30fps via HDMI to a 4K monitor (user supplied)

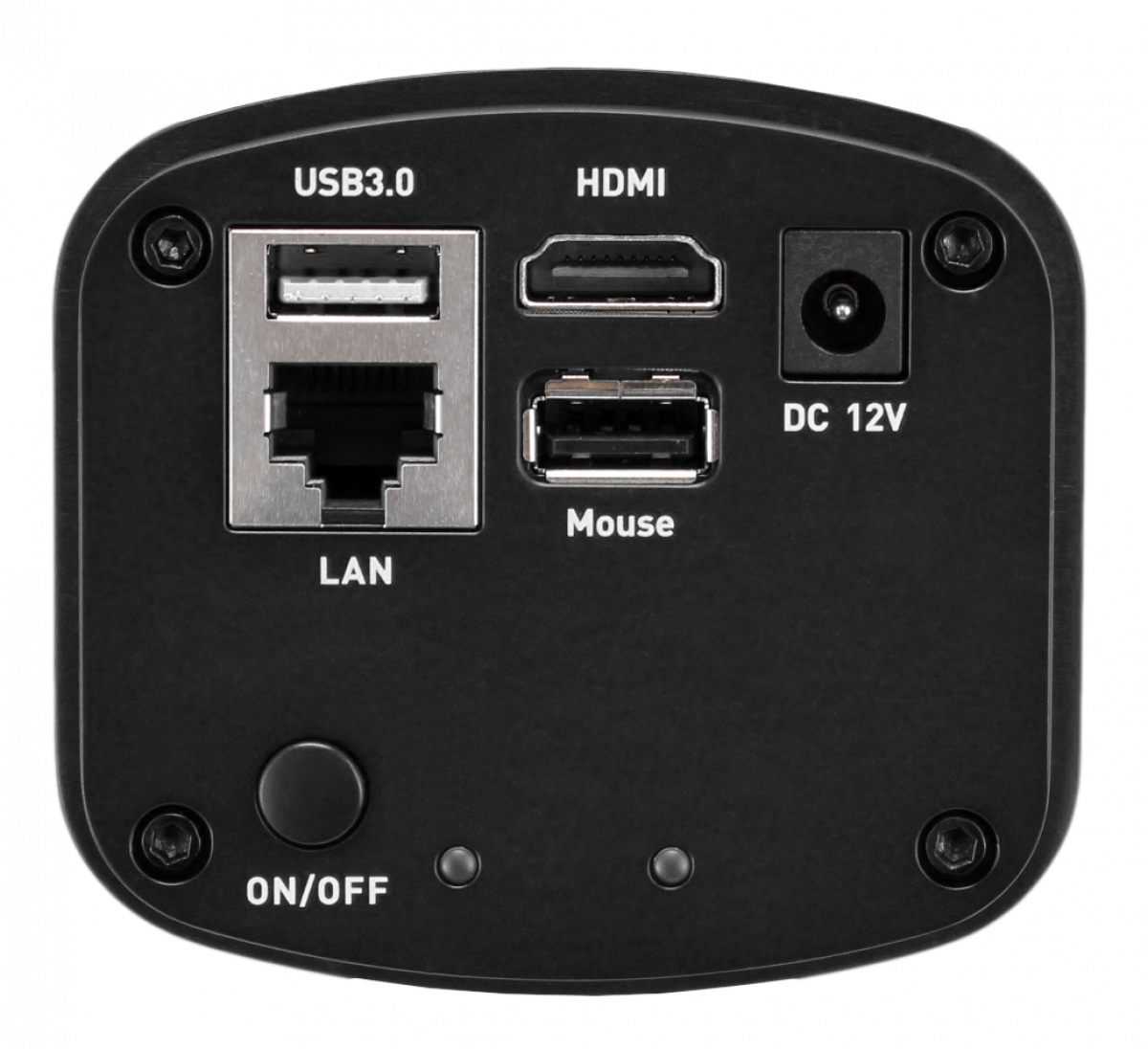

3 ways to connect: HDMI, USB 3.0 and Ethernet (Ethernet cable not supplied)
Real-time stitching (via CaptaVision+)
Depth of field fusion (via CaptaVision+)
Intelligent flatfield correction (via Captavision+)
Sony IMX485 color CMOS sensor
New CaptaVision+ Imaging Software (included) delivers full camera control, advanced image processing, customizable user interface, static and dynamic measurements with layers, and more (requires PC; not included).
Standard C-mount easily adapts to most microscopes; 0.65X camera adapter recommended.
1-year warranty
In the box: Excelis 4K Camera, USB 3.0 Cable, USB 2.0 Cable, USB 2.0 mouse, power adapter and cable, CaptaVision+ Imaging Software

Excelis 4K UHD Camera (AU-800-4K)
Sensor	1/1.2" Sony IMX485 color CMOS, 2.9µm pixels
Resolution	8MP; 3840 (H) x 2160 (V)
Frame Rate	HDMI: 30fps@3840x2160 USB 3.0: 29fps@3840x2160 Ethernet: 30fps@3840x2160
Image Capture	8MP / USB 3.0 memory stick (not included)
Exposure Time	2ms—10s
White Balance	Auto / Manual
Settings	Gain, gamma, saturation
Data Interface	USB 2.0, USB 3.0, HDMI, Ethernet
Imaging Software	HDMI: Built-in (Cloud 1.0) PC (USB 3.0/Ethernet): CaptaVision+ Imaging Software (for PC and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield correction; extended depth of focus (focus stacking); real-time image stitching; fluorescence image settings; fluorescence multi-color channel mixer merge; HDR (High Dynamic Range) function Image Types: JPG, PNG, TIF and DICOM (not available for Mac OS)
System Requirements (for PC Imaging Software)	Intel Processor (Core i5 or higher); 8GB RAM or more; USB 3.0 required
Power Supply	12V with dedicated power supply
Lens Mount	C-Mount lens adapter, 0.65X recommended
