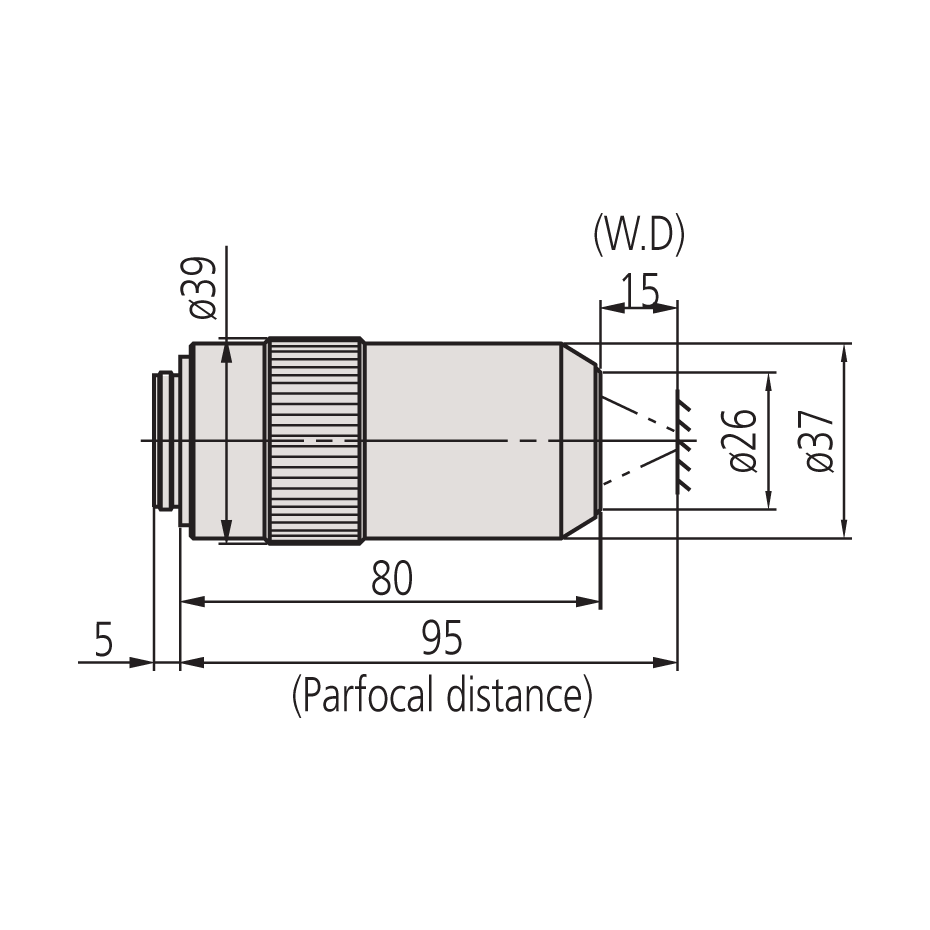

Mitutoyo 10x M Plan APO High Resolution Objective - 378-788-4

Mitutoyo 10x M Plan APO High Resolution Objective - 378-788-4

  • SKU: 378-788-4
$7,344.00 $8,160.00
Request Quote

Mitutoyo10x M Plan APO High Resolution Objective - 378-788-4. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications. The high N.A. of this objective provides high resolution.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 10x
N.A.: 0.42
Working Distance: 15.0mm
Focal Length: 20mm
Resolving Power: 0.7µm
Focal Depth:
1.60µm
Field of View with Ø24 Eyepiece Ø2.4
Real Field of View with 1/2" Chip Camera 0.48 x 0.64
Thread Size: M26
Part Number: 378-788-4
