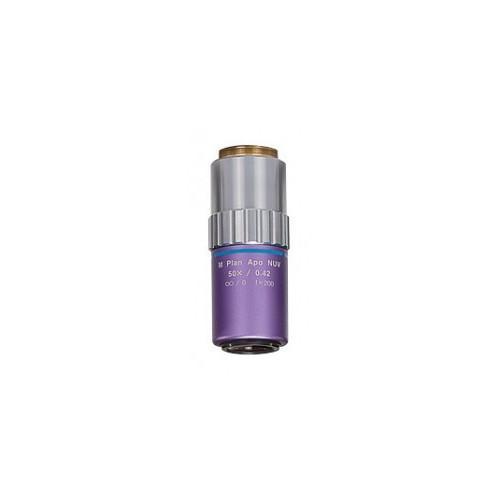

Mitutoyo 50x M Plan APO NUV Objective - 378-818-4

Recently viewed

Mitutoyo 50x M Plan APO NUV Objective - 378-818-4

Mitutoyo 50x M Plan APO NUV Objective - 378-818-4

  • SKU: 378-818-4
$6,360.00
Request Quote

Mitutoyo 50x Plan APO NUV Objective - 378-818-4. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 50x
N.A.: 0.42
Working Distance: 15.0mm
Wavelength Range: 355nm to 620nm
Focal Length: 4mm
Resolving Power: 0.7µm
Focal Depth:
1.6µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-818-4

Mitutoyo 50x Plan APO NUV Objective - 378-818-4. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 50x
N.A.: 0.42
Working Distance: 15.0mm
Wavelength Range: 355nm to 620nm
Focal Length: 4mm
Resolving Power: 0.7µm
Focal Depth:
1.6µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-818-4
