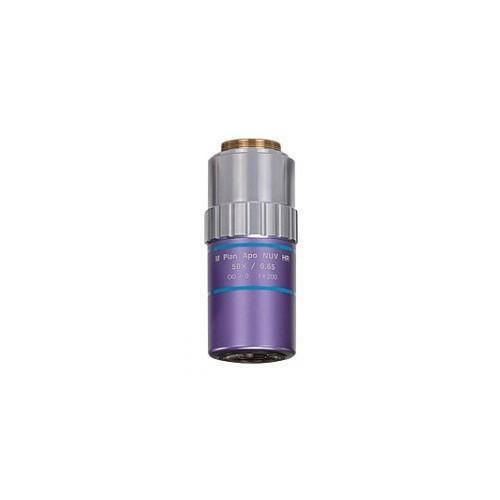

Mitutoyo 50x M Plan APO NUV High Resolution Objective - 378-888-6

Mitutoyo 50x M Plan APO NUV High Resolution Objective - 378-888-6

Available: In Stock
Wishlist
  • Product SKU: 378-888-6
$11,700.00 $13,000.00
Request Quote

Mitutoyo 50x Plan APO NUV High Resolution Objective - 378-888-6. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications. The high numerical aperture provides high resolution.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 50x
N.A.: 0.65
Working Distance: 10mm
Wavelength Range: 355nm to 620nm
Focal Length: 4mm
Resolving Power: 0.42µm
Focal Depth:
0.65µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-888-6

Mitutoyo 50x Plan APO NUV High Resolution Objective - 378-888-6. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications. The high numerical aperture provides high resolution.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 50x
N.A.: 0.65
Working Distance: 10mm
Wavelength Range: 355nm to 620nm
Focal Length: 4mm
Resolving Power: 0.42µm
Focal Depth:
0.65µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-888-6
