Mitutoyo 50x M Plan APO NIR Objective - 378-825-5
Mitutoyo 50x M Plan APO NIR Objective - 378-825-5

Mitutoyo 50x M Plan APO NIR Objective - 378-825-5

Available: In Stock
Wishlist
  • Product SKU: 378-825-5
$3,663.00 $4,070.00
Request Quote

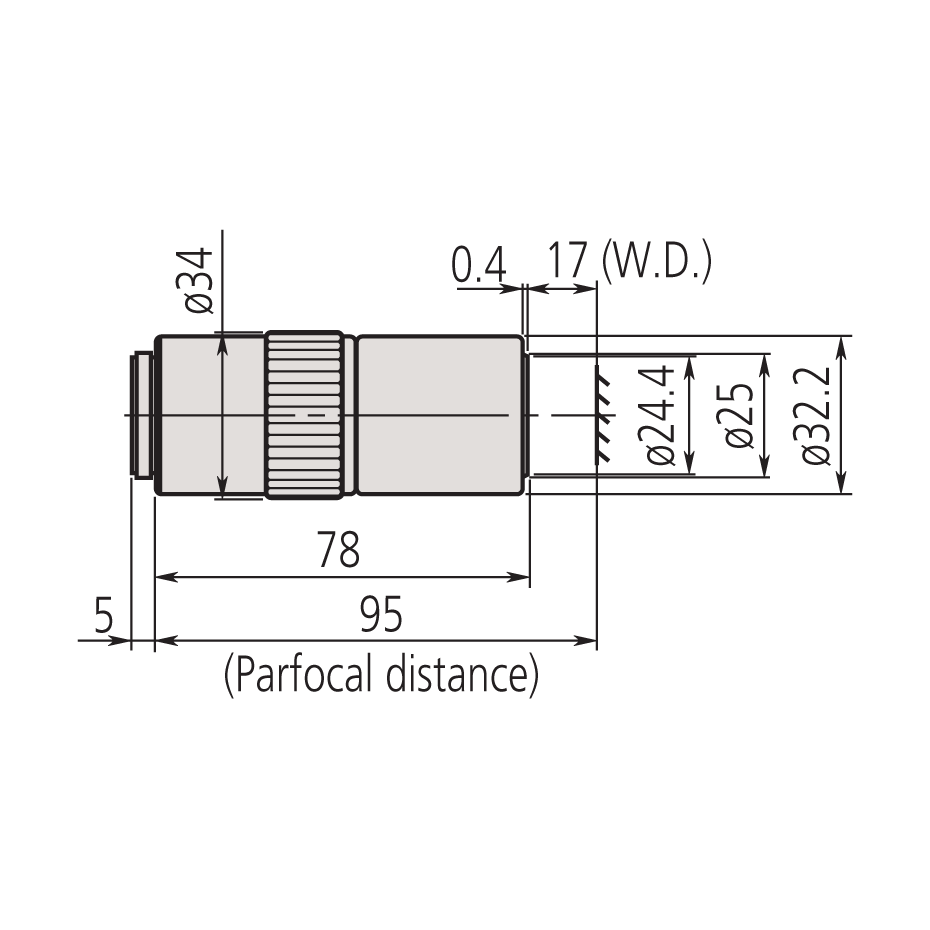

Mitutoyo 50x M Plan APO NIR Objective - 378-825-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 50x
N.A.: 0.42
Working Distance: 17mm
Wavelength Range: 480nm to 1800nm
Focal Length: 4mm
Resolving Power: 0.7µm
Focal Depth:
1.6µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-825-5

Mitutoyo 50x M Plan APO NIR Objective - 378-825-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 50x
N.A.: 0.42
Working Distance: 17mm
Wavelength Range: 480nm to 1800nm
Focal Length: 4mm
Resolving Power: 0.7µm
Focal Depth:
1.6µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-825-5
