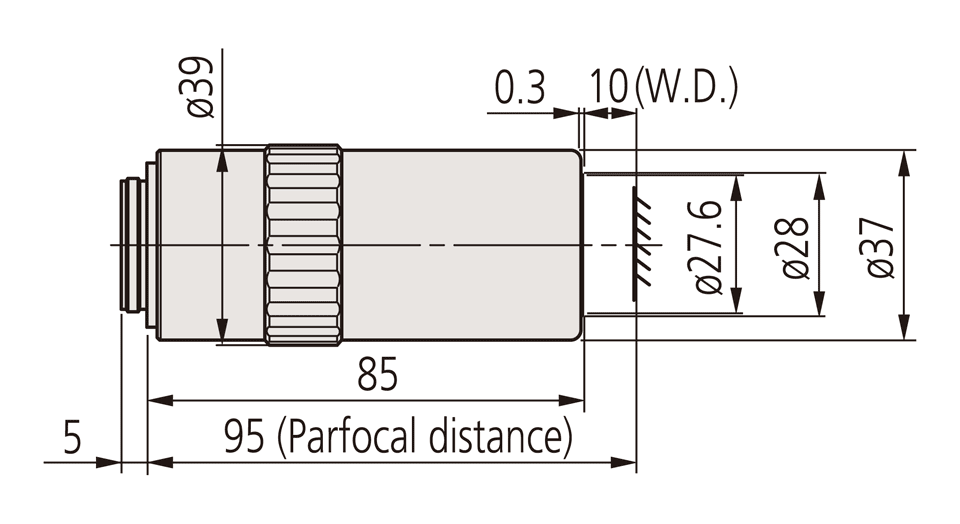

Mitutoyo 50x M Plan APO NIR High Resolution Objective - 378-863-5
Mitutoyo 50x M Plan APO NIR High Resolution Objective - 378-863-5

Mitutoyo 50x M Plan APO NIR High Resolution Objective - 378-863-5

  • SKU: 378-863-5
$8,091.00 $8,990.00
Request Quote

Mitutoyo 50x M Plan APO NIR High Resolution Objective - 378-863-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface. The high numerical aperture provides high resolution.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 50x
N.A.: 0.65
Working Distance: 10mm
Wavelength Range: 480nm to 1800nm
Focal Length: 4mm
Resolving Power: 0.4µm
Focal Depth:
0.7µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-863-5
