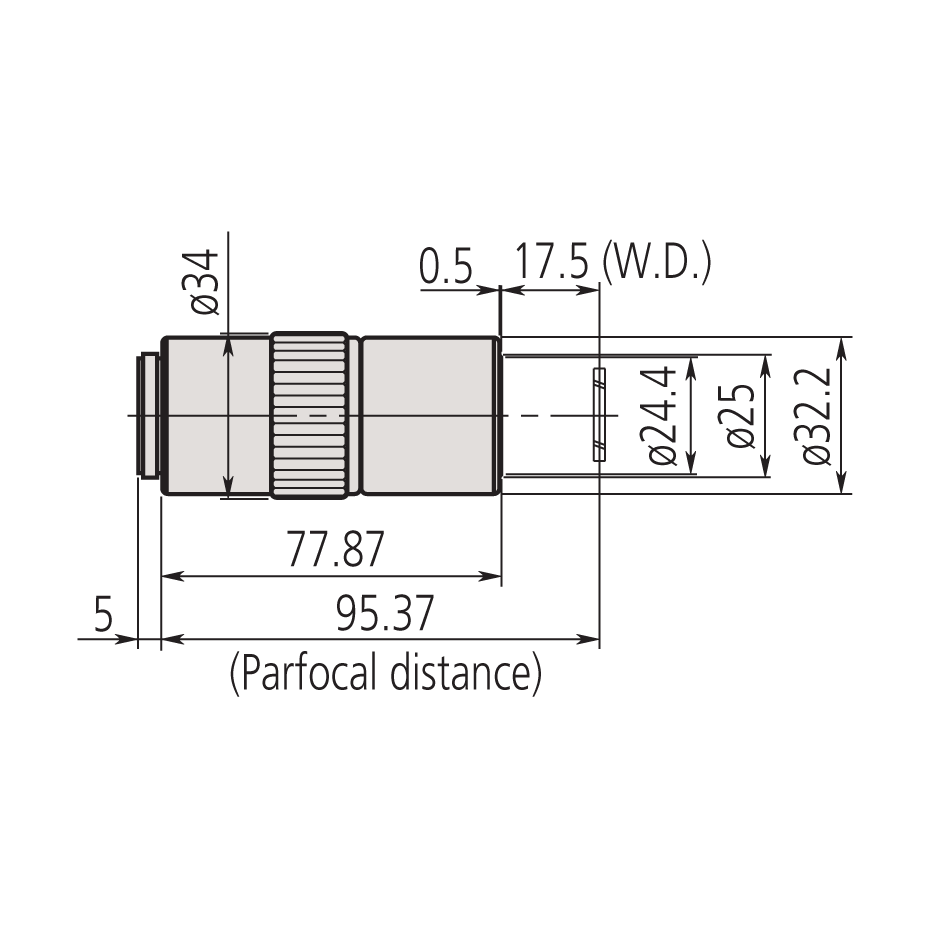

Mitutoyo 50x LCD Plan APO NIR Objective - 378-828-5
Mitutoyo 50x LCD Plan APO NIR Objective - 378-828-5

Mitutoyo 50x LCD Plan APO NIR Objective - 378-828-5

  • SKU: 378-828-5
$5,300.00
Quote Request

Mitutoyo 50x LCD Plan APO NIR Objective - 378-828-5. This objective is suitable for laser applications and the long working distance allows for observation through an LCD cover-glass 1.1mm thick.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 50x
Glass Thickness: 1.1mm
N.A.: 0.42
Working Distance: 17.13mm
Wavelength Range: 480nm to 1800nm
Focal Length: 3.9
Resolving Power: 0.7µm
Focal Depth:
1.6µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-828-5
