Mitutoyo 50x G Plan APO ULWD Objective - 378-848-3

Recently viewed

Mitutoyo 50x G Plan APO ULWD Objective - 378-848-3
Mitutoyo 50x G Plan APO ULWD Objective - 378-848-3

Mitutoyo 50x G Plan APO ULWD Objective - 378-848-3

  • SKU: 378-848-3
$3,915.00 $4,350.00
Request Quote

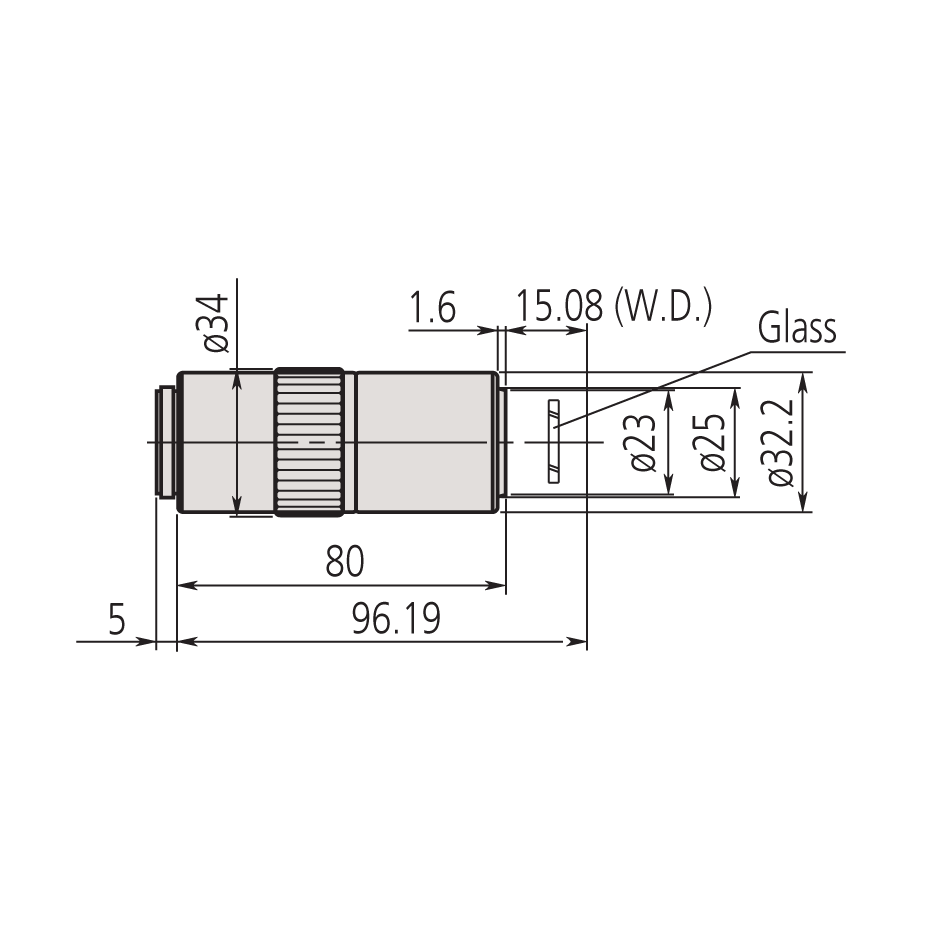

Mitutoyo 50x G Plan APO ULWD Objective - 378-848-3. This ultra long working distance objective is designed for observing through 3.5mm glass with its cover slip correction.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 50x
Glass Thickness: 3.5mm
N.A.: 0.50
Working Distance: 13.89mm
Focal Length: 4mm
Resolving Power: 0.6µm
Focal Depth:
1.1µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-848-3
