Mitutoyo 20x M Plan APO SL Objective - 378-810-3
Mitutoyo 20x M Plan APO SL Objective - 378-810-3

Mitutoyo 20x M Plan APO SL Objective - 378-810-3

  • SKU: 378-810-3
$2,799.00 $3,111.00
Request Quote

Mitutoyo 20x M Plan Apochromatic Super Long Working Distance Objective -378-810-3. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 20x
N.A.: 0.28

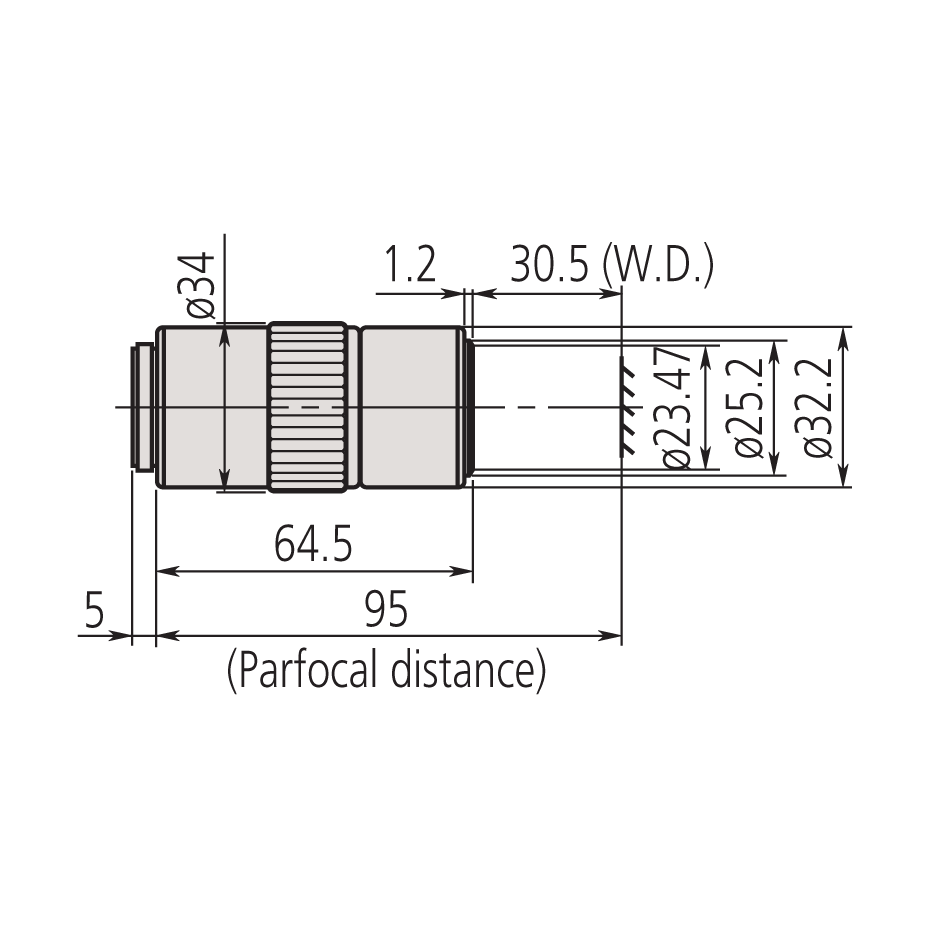

Working Distance: 30.5mm
Focal Length: 10mm
Resolving Power: 1.0µm
Focal Depth:
3.5µm
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-810-3
