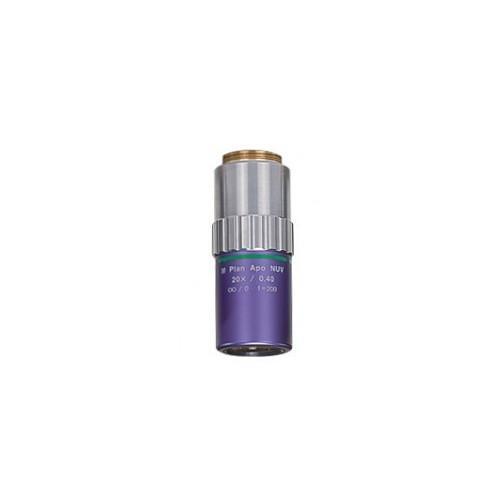

Mitutoyo 20x M Plan APO NUV Objective - 378-817-8

Mitutoyo 20x M Plan APO NUV Objective - 378-817-8

  • SKU: 378-817-8
$6,579.00 $7,310.00
Quote Request

Mitutoyo 20x Plan APO NUV Objective - 378-817-8. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 20x
N.A.: 0.40
Working Distance: 17.0mm
Wavelength Range: 355nm to 620nm
Focal Length: 10mm
Resolving Power: 0.7µm
Focal Depth:
1.7µm
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-817-8
