Mitutoyo 20x M Plan APO NIR Objective - 378-824-5
Mitutoyo 20x M Plan APO NIR Objective - 378-824-5

Mitutoyo 20x M Plan APO NIR Objective - 378-824-5

  • SKU: 378-824-5
$3,310.00
Request Quote
  • Order within

Mitutoyo 20x M Plan APO NIR Objective - 378-824-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 20x
N.A.: 0.40

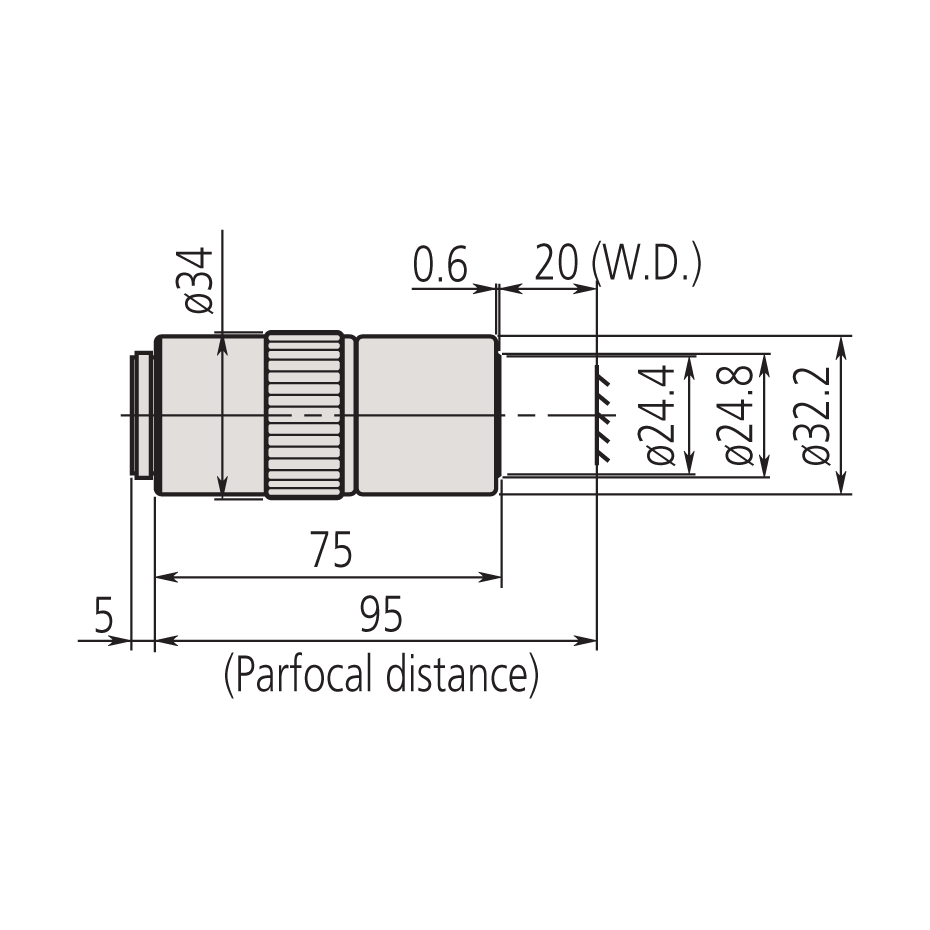

Working Distance: 20mm
Wavelength Range: 480nm to 1800nm
Focal Length: 10mm
Resolving Power: 0.7µm
Focal Depth:
1.7µm
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-824-5
