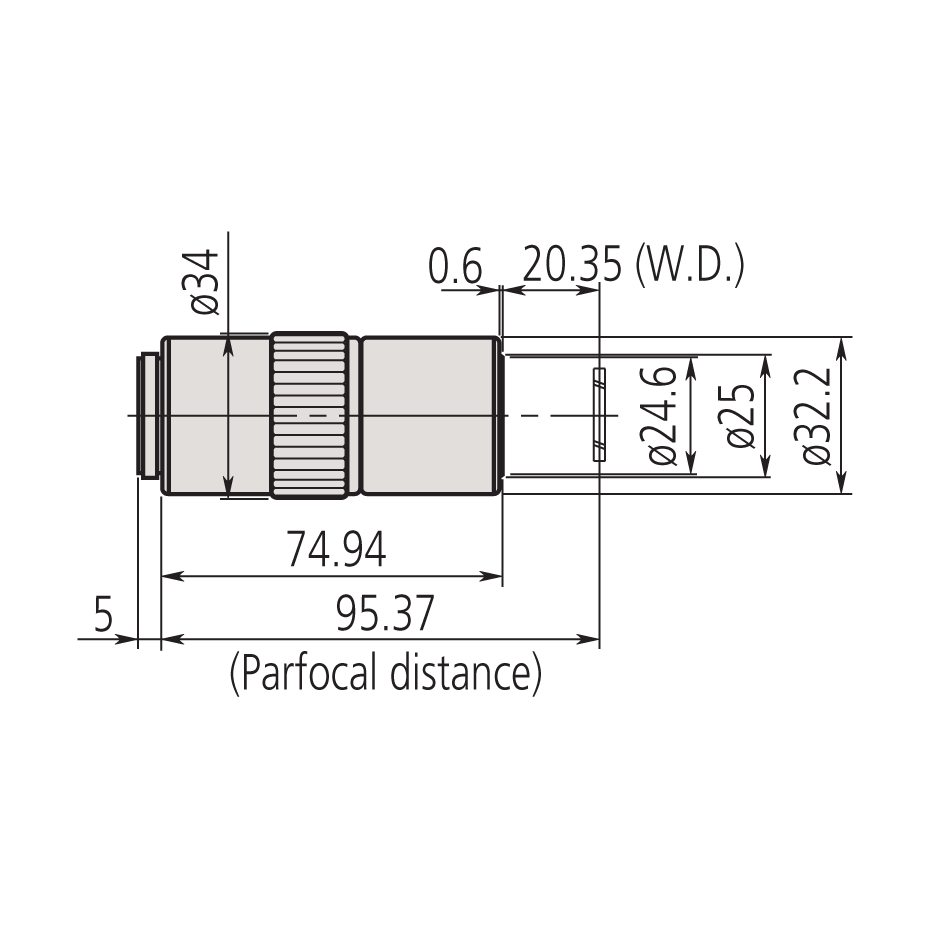

Mitutoyo 20x LCD Plan APO NIR Objective - 378-827-5
Mitutoyo 20x LCD Plan APO NIR Objective - 378-827-5

Mitutoyo 20x LCD Plan APO NIR Objective - 378-827-5

Available: In Stock
Wishlist
  • Product SKU: 378-827-5
$4,131.00 $4,590.00
Request Quote

Mitutoyo 20x LCD Plan APO NIR Objective - 378-827-5. This objective is suitable for laser applications and the long working distance allows for observation through an LCD cover-glass 1.1mm thick.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 20x
Glass Thickness: 1.1mm
N.A.: 0.40
Working Distance: 19.98mm
Wavelength Range: 480nm to 1800nm
Focal Length: 10mm
Resolving Power: 0.7µm
Focal Depth:
1.7µm
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-827-5
