Mitutoyo 20x G Plan APO ULWD Objective - 378-847
Mitutoyo 20x G Plan APO ULWD Objective - 378-847

Mitutoyo 20x G Plan APO ULWD Objective - 378-847

  • SKU: 378-847
$4,401.00 $4,890.00
Quote Request

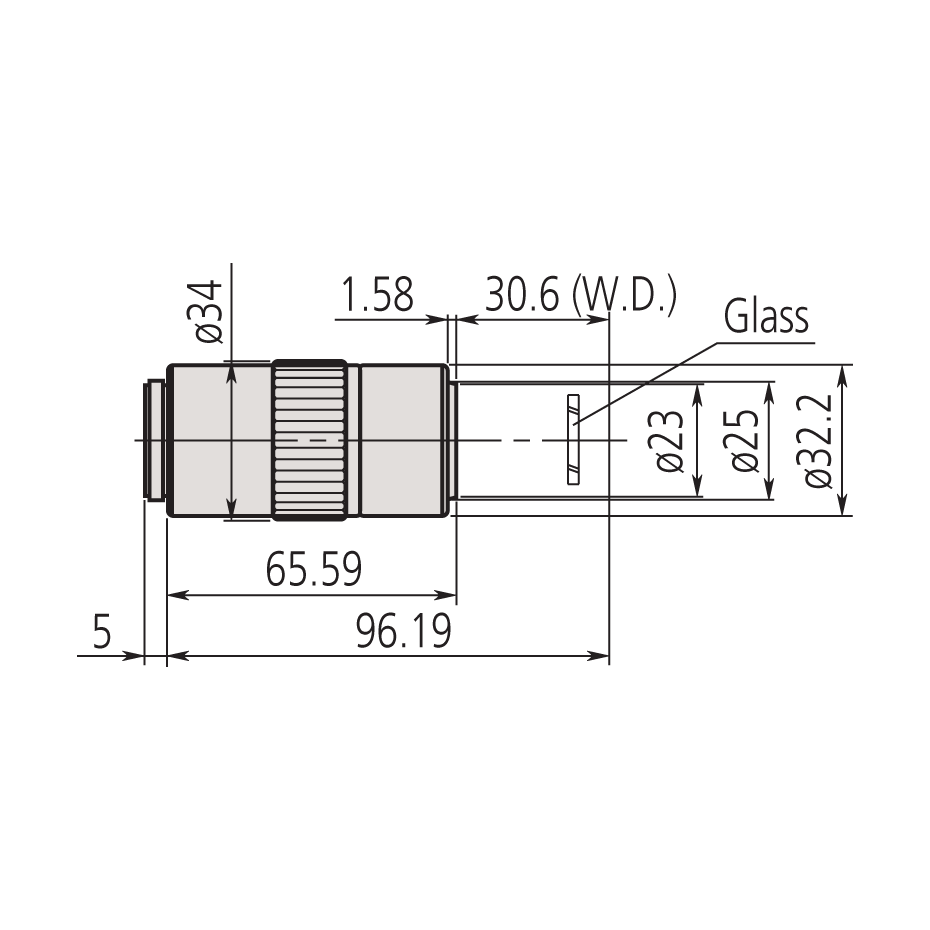

Mitutoyo 20x G Plan APO ULWD Objective - 378-847. This ultra long working distance objective is designed for observing through 3.5mm glass with its cover slip correction.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 20x
Glass Thickness: 3.5mm
N.A.: 0.28
Working Distance: 29.42mm
Focal Length: 10mm
Resolving Power: 1.0µm
Focal Depth:
3.5µm
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-847
