Mitutoyo 10x M Plan APO NUV Objective - 378-809-5
Mitutoyo 10x M Plan APO NUV Objective - 378-809-5

Mitutoyo 10x M Plan APO NUV Objective - 378-809-5

Available: In Stock
Wishlist
  • Product SKU: 378-809-5
$2,799.00 $3,110.00
Request Quote

Mitutoyo 10x Plan APO NUV Objective - 378-809-5. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 10x
N.A.: 0.28

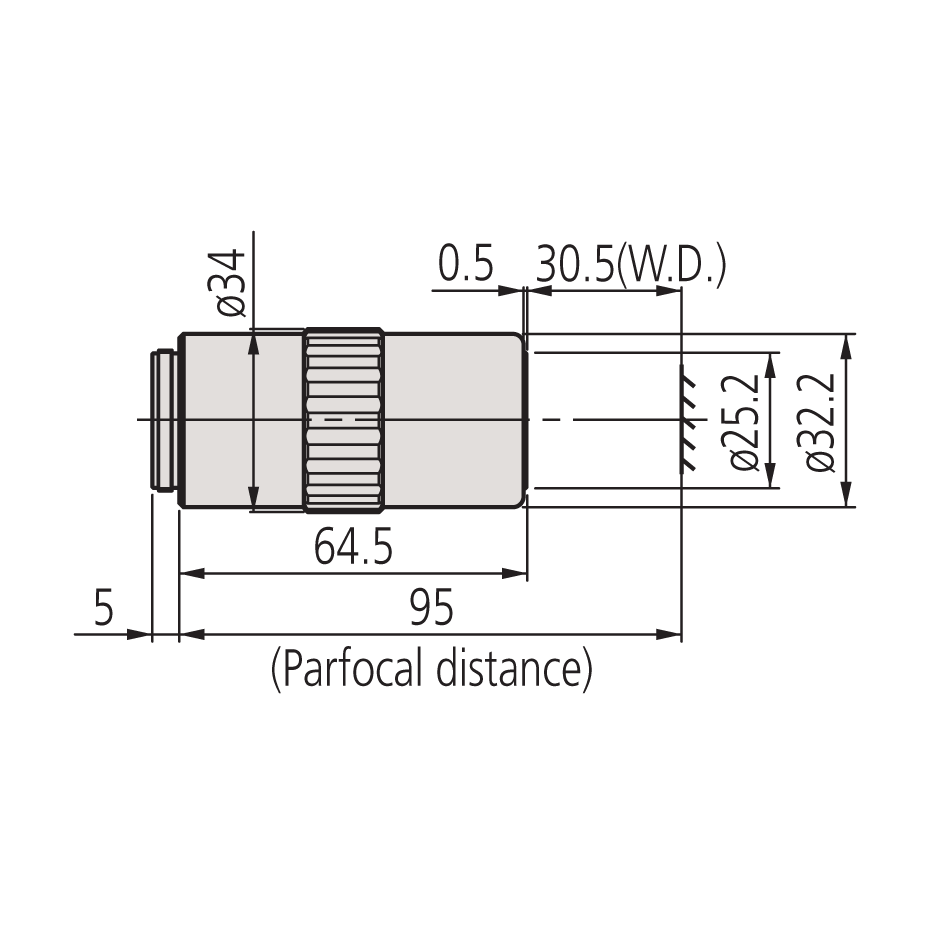

Working Distance: 30.5mm
Wavelength Range: 355nm to 620nm
Focal Length: 20mm
Resolving Power: 1µm
Focal Depth:
3.5µm
Field of View with Ø24 Eyepiece Ø2.4
Real Field of View with 1/2" Chip Camera 0.48 x 0.64
Thread Size: M26
Part Number: 378-809-5
