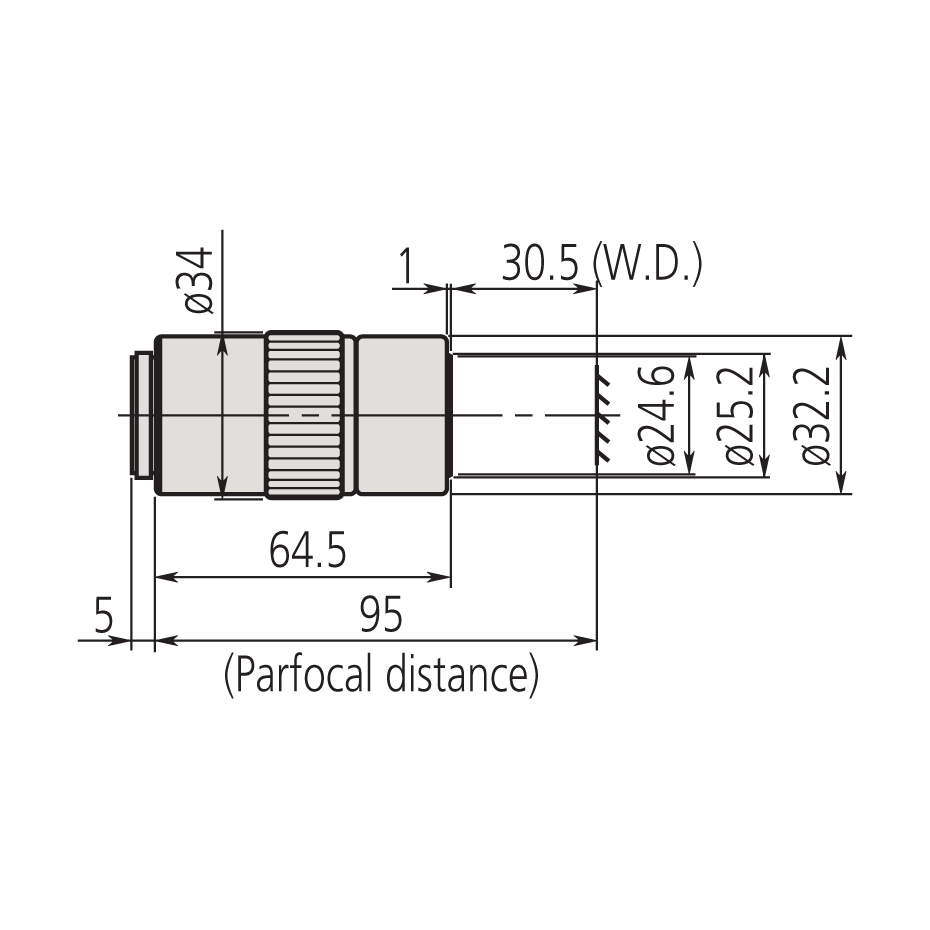

Mitutoyo 10x M Plan APO NIR Objective - 378-823-5
Mitutoyo 10x M Plan APO NIR Objective - 378-823-5

Mitutoyo 10x M Plan APO NIR Objective - 378-823-5

Available: In Stock
Wishlist
  • Product SKU: 378-823-5
$1,656.00 $1,840.00
Request Quote

Mitutoyo 10x M Plan APO NIR Objective - 378-823-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 10x
N.A.: 0.26
Working Distance: 30.5mm
Wavelength Range: 480nm to 1800nm
Focal Length: 20mm
Resolving Power: 1.1µm
Focal Depth:
4.1µm
Field of View with Ø24 Eyepiece Ø2.4
Real Field of View with 1/2" Chip Camera 0.48 x 0.64
Thread Size: M26
Part Number: 378-823-5
