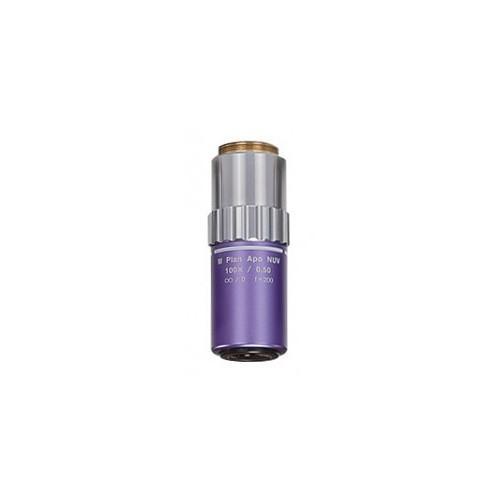

Mitutoyo 100x M Plan APO NUV Objective - 378-819-4

Mitutoyo 100x M Plan APO NUV Objective - 378-819-4

Available: In Stock
Wishlist
  • Product SKU: 378-819-4
$7,560.00 $8,400.00
Request Quote

Mitutoyo 100x Plan APO NUV Objective - 378-819-4. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 100x
N.A.: 0.50
Working Distance: 11mm
Wavelength Range: 3552m to 6202m
Focal Length: 2mm
Resolving Power: 0.6m
Focal Depth:
1.1µm
Field of View with Ø24 Eyepiece Ø0.24
Real Field of View with 1/2" Chip Camera 0.05 x 0.06
Thread Size: M26
Part Number: 378-819-4

Mitutoyo 100x Plan APO NUV Objective - 378-819-4. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 100x
N.A.: 0.50
Working Distance: 11mm
Wavelength Range: 3552m to 6202m
Focal Length: 2mm
Resolving Power: 0.6m
Focal Depth:
1.1µm
Field of View with Ø24 Eyepiece Ø0.24
Real Field of View with 1/2" Chip Camera 0.05 x 0.06
Thread Size: M26
Part Number: 378-819-4
