Mitutoyo 100x M Plan APO NIR Objective - 378-826-5
- SKU: 378-826-5
$4,842.00
$5,380.00
- Order within
Mitutoyo 100x M Plan APO NIR Objective - 378-826-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.
This objective has a new part number, 378-826-15 - please see the new part number listing.
| Specifications | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible & NIR |
| Magnification: | 100x |
| N.A.: | 0.50 |

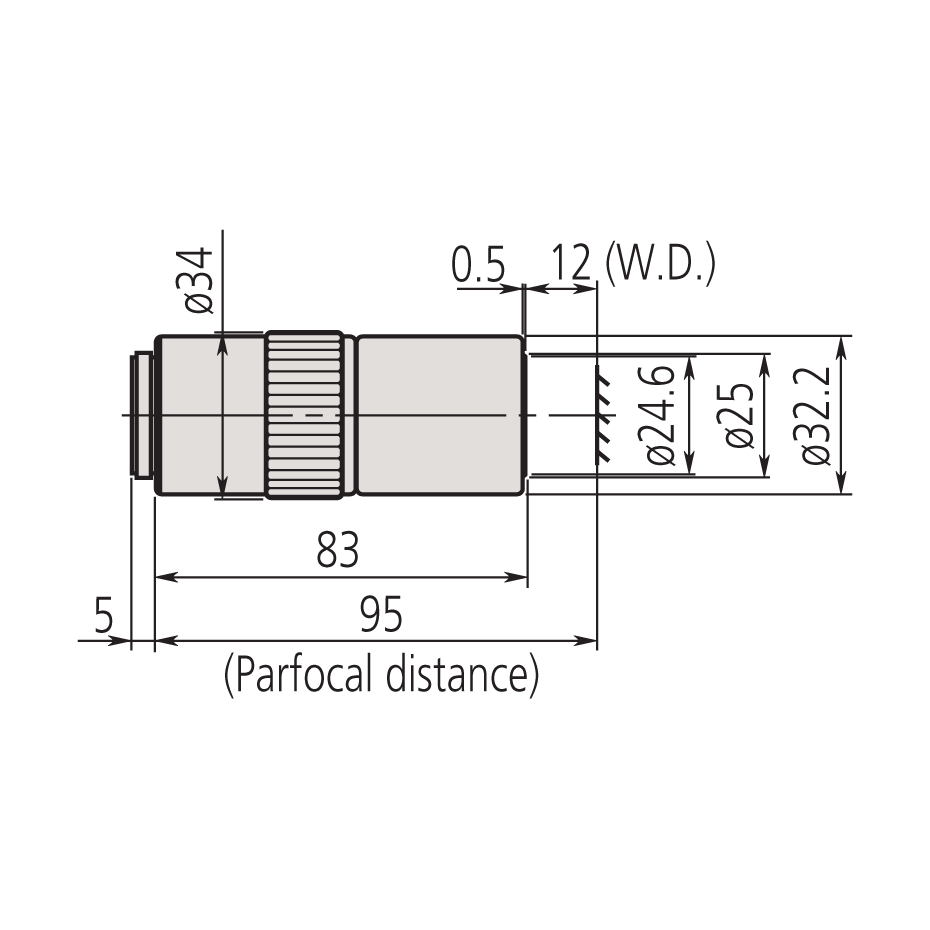

| Working Distance: | 12.0mm |
| Wavelength Range: | 480nm to 1800nm |
| Focal Length: | 2mm |
| Resolving Power: | 0.6µm |
| Focal Depth: |
1.1µm |
| Field of View with Ø24 Eyepiece | Ø0.24 |
| Real Field of View with 1/2" Chip Camera | 0.05 x 0.06 |
| Thread Size: | M26 |
| Part Number: | 378-826-5 |
Mitutoyo 100x M Plan APO NIR Objective - 378-826-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.
This objective has a new part number, 378-826-15 - please see the new part number listing.
| Specifications | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible & NIR |
| Magnification: | 100x |
| N.A.: | 0.50 |
| Working Distance: | 12.0mm |
| Wavelength Range: | 480nm to 1800nm |
| Focal Length: | 2mm |
| Resolving Power: | 0.6µm |
| Focal Depth: |
1.1µm |
| Field of View with Ø24 Eyepiece | Ø0.24 |
| Real Field of View with 1/2" Chip Camera | 0.05 x 0.06 |
| Thread Size: | M26 |
| Part Number: | 378-826-5 |
