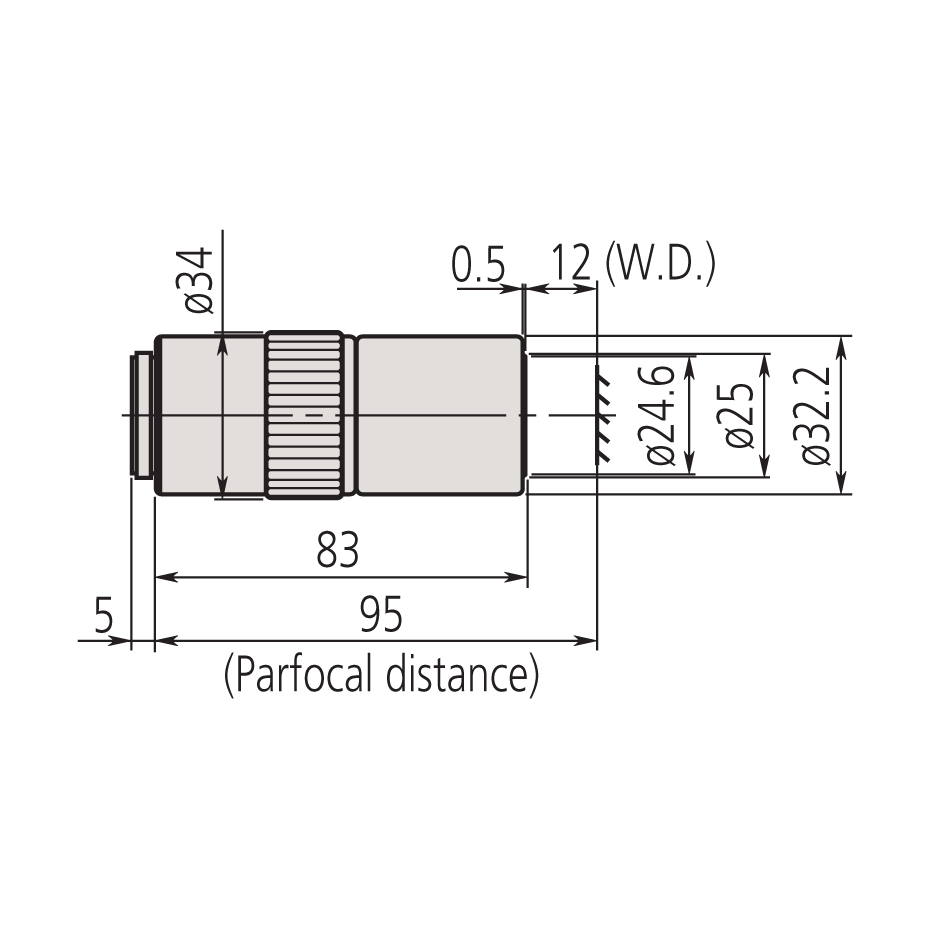

Mitutoyo 100x M Plan APO NIR Objective - 378-826-15
Mitutoyo 100x M Plan APO NIR Objective - 378-826-15

Mitutoyo 100x M Plan APO NIR Objective - 378-826-15

  • SKU: 378-826-15
$5,510.00
Quote Request

Mitutoyo 100x M Plan APO NIR Objective - 378-826-15. This objective is suitable for laser applications and provides long working distances between the lens and working surface. This is the direct replacement for 378-826-5

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 100x
N.A.: 0.50
Working Distance: 12.0mm
Wavelength Range: 480nm to 1800nm
Focal Length: 2mm
Resolving Power: 0.6µm
Focal Depth:
1.1µm
Field of View with Ø24 Eyepiece Ø0.24
Real Field of View with 1/2" Chip Camera 0.05 x 0.06
Thread Size: M26
Part Number: 378-826-15
