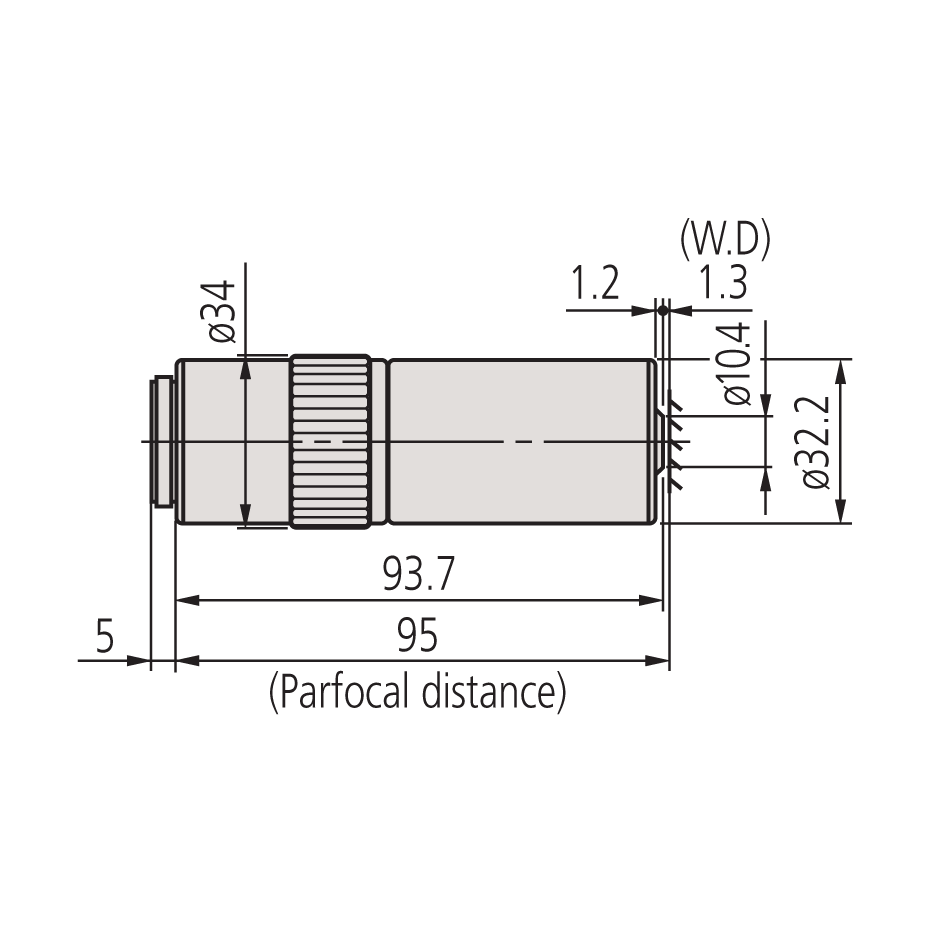

Mitutoyo 100x M Plan APO High Resolution Objective - 378-815-4

Mitutoyo 100x M Plan APO High Resolution Objective - 378-815-4

Available: In Stock
Wishlist
  • Product SKU: 378-815-4
$5,562.00 $6,180.00
Request Quote

Mitutoyo 100x M Plan APO High Resolution Objective - 378-815-4. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications. The high N.A. of this objective provides high resolution.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 100x
N.A.: 0.90
Working Distance: 1.3mm
Focal Length: 2mm
Resolving Power: 0.3µm
Focal Depth:
0.34µm
Field of View with Ø24 Eyepiece Ø0.24
Real Field of View with 1/2" Chip Camera 0.05 x 0.06
Thread Size: M26
Part Number: 378-815-4
