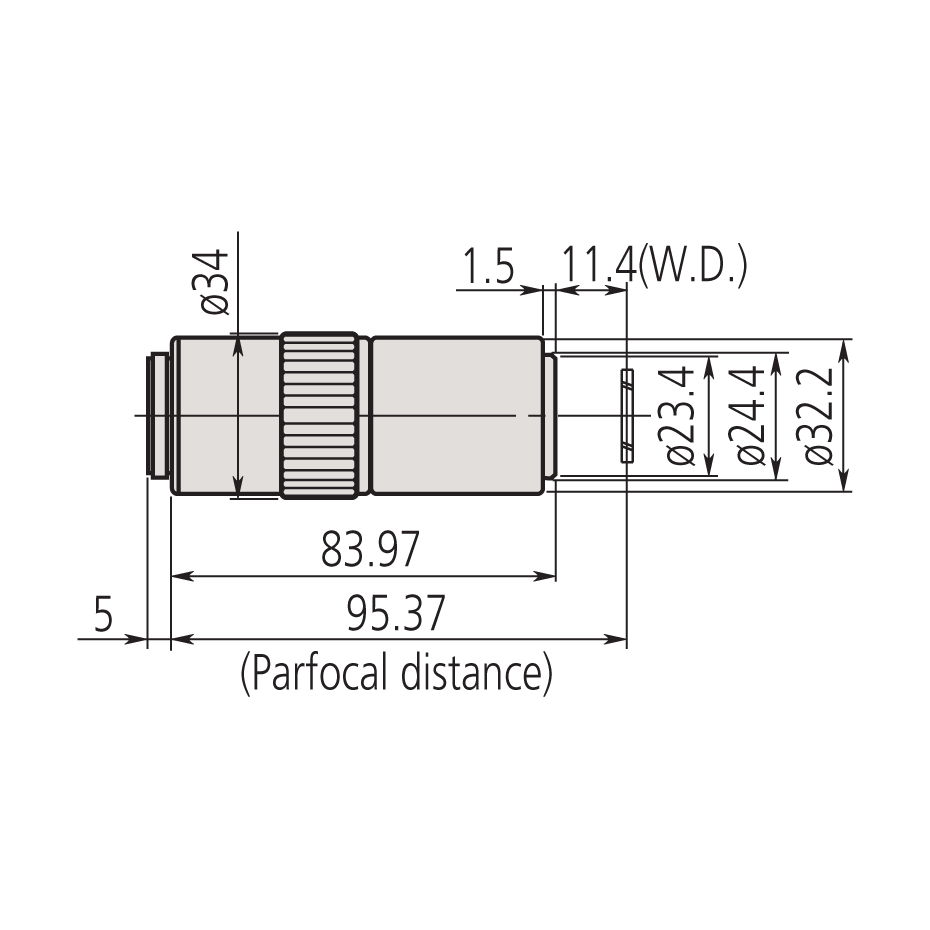

Mitutoyo 100x LCD Plan APO NUV Objective - 378-751-4

Mitutoyo 100x LCD Plan APO NUV Objective - 378-751-4

Available: In Stock
Wishlist
  • Product SKU: 378-751-4
$8,983.00 $9,981.00
Request Quote

Mitutoyo 100x LCD Plan APO NUV Objective - 378-751-4. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications. This lens has cover glass thickness compensation for glass of 1.1mm thick.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NUV
Magnification: 100x
Glass Thickness: 1.1mm
N.A.: 0.50
Working Distance: 10.03mm
Wavelength Range: 355nm to 620nm
Focal Length: 2mm
Resolving Power: 0.6µm
Focal Depth:
1.1µm
Field of View with Ø24 Eyepiece Ø0.24
Real Field of View with 1/2" Chip Camera 0.05 x 0.06
Thread Size: M26
Part Number: 378-751-4
