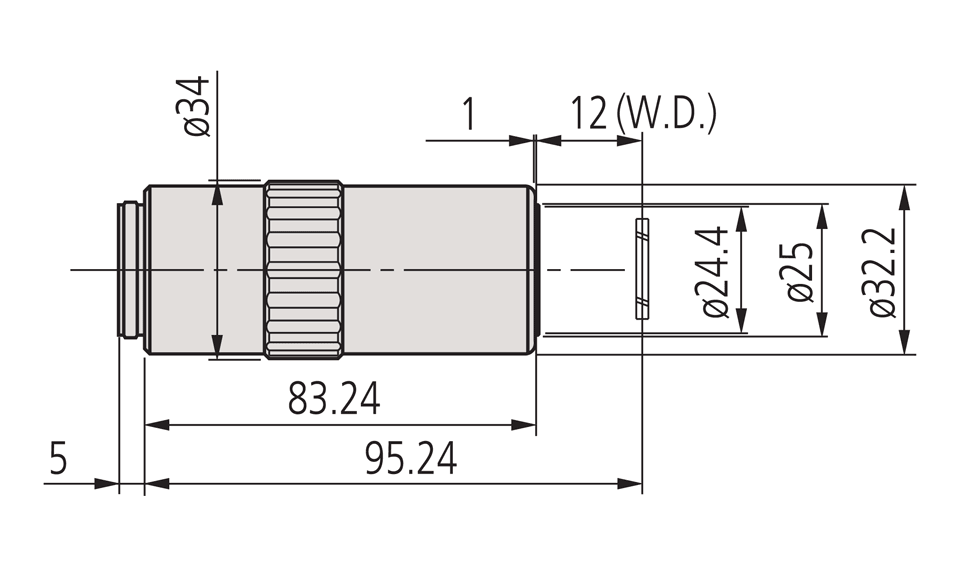

Mitutoyo 100x LCD Plan APO NIR Objective - 378-754-5
Mitutoyo 100x LCD Plan APO NIR Objective - 378-754-5

Mitutoyo 100x LCD Plan APO NIR Objective - 378-754-5

Available: In Stock
Wishlist
  • Product SKU: 378-754-5
$10,260.00 $11,400.00
Request Quote

Mitutoyo 100x LCD Plan APO NIR Objective - 378-754-5. This objective is suitable for laser applications and the long working distance allows for observation through an LCD cover-glass 0.7mm thick.

Specifications
Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 100x
Glass Thickness: 0.7mm
N.A.: 0.50
Working Distance: 11.76mm
Wavelength Range: 480nm to 1800nm
Focal Length: 2mm
Resolving Power: 0.6µm
Focal Depth:
1.1µm
Field of View with Ø24 Eyepiece Ø0.24
Real Field of View with 1/2" Chip Camera 0.05 x 0.06
Thread Size: M26
Part Number: 378-754-5
