Meiji BD-M-LED Pole Microscope Stand - Darkfield
Meiji BD-M-LED Pole Microscope Stand - Darkfield
Meiji BD-M-LED Pole Microscope Stand - Darkfield
Meiji BD-M-LED Pole Microscope Stand - Darkfield
Meiji BD-M-LED Pole Microscope Stand - Darkfield
Meiji BD-M-LED Pole Microscope Stand - Darkfield
Meiji BD-M-LED Pole Microscope Stand - Darkfield

Meiji BD-M-LED Pole Microscope Stand - Darkfield

Available: In Stock
Wishlist
  • Product SKU: BD-M-LED
$1,890.00 $2,100.00
Request Quote

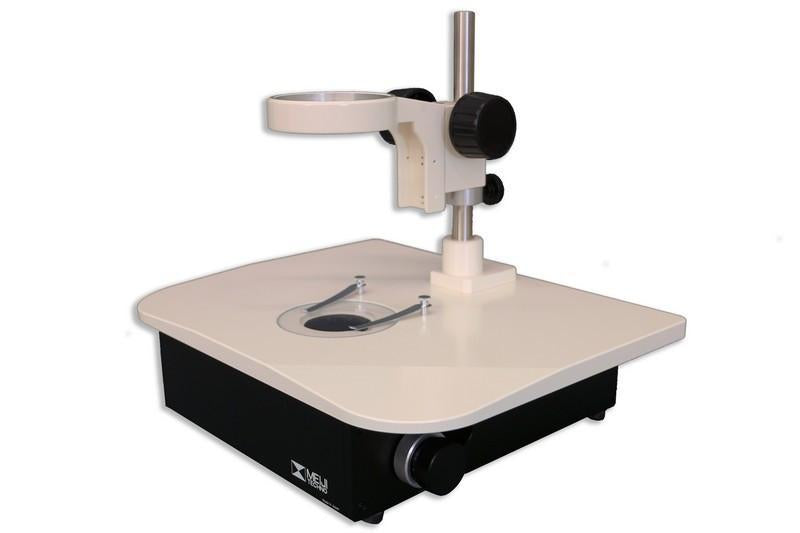

BD-M-LED is a research grade Brightfield /Darkfield Pole type stand for the EM Series stereo microscopes. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination and a sliding mirror provides tilt, as well as front to back movement which allows the user to vary illumination from Brightfield LED to Darkfield LED illumination at an appropriate angle. It can be an effective tool used for research to view living bacteria, or at low magnifications to view tissues, cells or embryo transfer where in oblique transmitted illumination is critical to the experiment. Marine biologists continue to use darkfield transmitted illumination at low powers to observe and record data about fresh and salt water organisms such as algea as well as striae in transparent material and plankton in aqueous solution. Equipped with two stage clips, 94.5 mm glass stage plate and is equipped with an automatic voltage (100v to 240v) sensing power supply and a 20mm vertical post. (Requires F focus block or any 20mm focus block.)

NOTE: F holder (shown in the photo) is not included in the system. Each product must be purchased seperately.

Dimensions: 330mm (13") wide by 280mm (11") length by 85mm (3.37") high
Pillar Height: 5.7” height -20mm pillar
Glass Stage Plate: 94.5mm Round (MA569)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: F Focus Block with 84.2 diameter opening accepts 84mm stereo body.  Rack and pinion mount allows smooth precise focusing over 55mm of travel.  Coarse focus mechanism incorporates a slip clutch and tension adjustment
Illumination Port: Built in incident and transmitted variable intensity LED illumination
Rotatable Mirror: Dual-reflection lens/mirror system provides transmitted brightfield/ pseudo-darkfield illumination
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Package Information:
   • 10 lbs
   • 17 x 14 x 9 inches

BD-M-LED is a research grade Brightfield /Darkfield Pole type stand for the EM Series stereo microscopes. It has a large stable work surface and a rotatable lens/mirror system which provides transmitted LED intensity illumination and a sliding mirror provides tilt, as well as front to back movement which allows the user to vary illumination from Brightfield LED to Darkfield LED illumination at an appropriate angle. It can be an effective tool used for research to view living bacteria, or at low magnifications to view tissues, cells or embryo transfer where in oblique transmitted illumination is critical to the experiment. Marine biologists continue to use darkfield transmitted illumination at low powers to observe and record data about fresh and salt water organisms such as algea as well as striae in transparent material and plankton in aqueous solution. Equipped with two stage clips, 94.5 mm glass stage plate and is equipped with an automatic voltage (100v to 240v) sensing power supply and a 20mm vertical post. (Requires F focus block or any 20mm focus block.)

NOTE: F holder (shown in the photo) is not included in the system. Each product must be purchased seperately.
