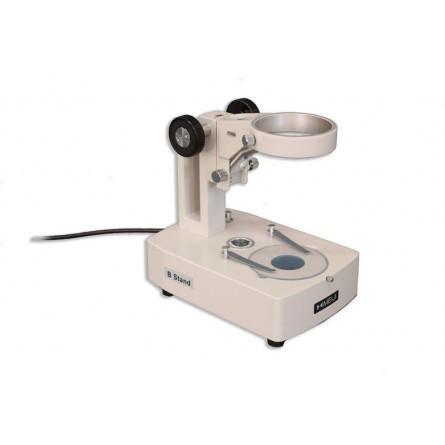

Meiji B Rigid Arm Microscope Stand - Darkfield

The B Stand is a Rigid-arm stand with a dual-reflection lens system provides incident, transmitted, or simultaneous illumination. A fully rotatable mirror in the base provides transmitted light brightfield or “Pseudo” darkfield illumination which may be operated independently or simultaneously. Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568), 94.5mm diameter clear glass stage plate and two stainless steel stage clips (MA593). The B Stand is designed for use with zoom (EMZ Series) stereo bodies. The B stand is a great complement with the EMZ, EMT. EMF microscopes, supplied with a bright 115V, 20W Halogen illumination. The B stand is a great complement with the EMZ, EMT. EMF microscopes, supplied with a bright 115V, 20W Halogen illumination.

Included:
   • B Stand Rigid-arm stand with a dual-reflection lens system provides incident, transmitted, or simultaneous illumination
   • Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
   • The B stand is a great complement with the EMZ, EMT. EMF microscopes, supplied with a bright 115V, 20W Halogen illumination
   • There are many practical applications of dark field, especially in the field of marine biology, in viewing the many specimens you cannot see using alternative techniques
   • You can use dark field to study marine organisms such as algae and plankton, diatoms, insects, fibers, hairs, yeast and protozoa as well as some minerals and crystals, thin polymers and some ceramics
   • Wattage 6V, 10 Watt Halogen
   • MA569: 94.5mm diameter clear glass stage plate
   • MA568: 94.5mm diameter reversible black and white stage plate
   • MA593: Two stainless steel stage clips
   • Incident Bulb: MA261/SL10- 115V 20W (Factory Installed)

Product Information:
   • Manufactured: 100% MADE IN JAPAN
   • Warranty: LIMITED LIFETIME WARRANTY
   • Customer Support: 1-(800) 832-0060 (U.S.A Based)

Package Information:
   • Dimensions: 245mm (10") length by 160mm (6") wide by 233mm (9") high
   • Weight: 8lbs
   • Box Size: 17 x 14 x 9
