Leica DM750 HD Digital Microscope Package
- SKU: DM750-300-HD
- Choose Your Camera
- Plan Achromat Objectives
- Rackless XY Stage
- LED Illumination
- 5 Year Mechanical & 1 Year Electrical Warranty
We created a custom Leica digital microscope package for the Leica DM750 microscope. The Leica DM750 is the ideal microscope for educational and clinical practices. We have combined the Leica DM750 with your choice of Excelis HD multi-output camera. The camera is controlled by a mouse (included) which allows you to control the on board camera features without the need for a computer while being output to a HD monitor. You can capture, edit, and play back images or videos! See our demo video tab below to view these features! The camera can also be used USB to a computer to take advantage of the free software features.
With your Leica digital microscope, select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera (AU-300-HDS or AU-600-HDS). The screen is provided with either 300 or 600 HDS option.
Leica Digital Microscope Specifications |
Head: | 45° Trinocular 360 degree rotatable & c-mount |
Eyepieces: |
10x/20 Pointer eyepiece w/ eyeguard 10x/20 Focusing eyepiece w/ eyeguard |
Objectives: | Hi Plan 4x, 10x, 40x, 100x oil objectives |
Condenser: | Abbe Condenser 0.9Dry/1.25 Oil |
Mechanical Stage: | Rackless mechanical with one hand slide holder |
Focus: | Coaxial coarse/fine focus |
Illumination: | LED illumination – 6000 K temp, 25,000 h life at full intensity |
Misc: | Dust cover, power cord, oil, manual |
Warranty: | 5 Year mechanical 1 year electrical |
AU-300-HD Excelis Lite Specifications: | |
---|---|
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
AU-300-HDS Excelis Lite Specifications: | |
---|---|
Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
AU-600-HD Excelis Camera Specifications: | |
---|---|
Mega Pixel | 6.0 M.P. |
Sensor: | SONY IMX236 |
Sensor Size: | 1/2.7” , 0.5x C-mount recommended |
Live Resolution: | 1920 x 1080 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card |
USB 2.0: 1080p, 30fps to PC or Mac | |
Exposure Time: | 0.001sec—10.0 sec |
Settings: | Auto white balance, Gain, Gamma, Saturation, Contraction |
PC Imaging Software: | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
Software Compatibility: | Windows XP, Vista, 7, 8, 10 (32 or 64 bit) |
Mac OSX (for image transfer to Mac OSX only) |
AU-600-HDS Excelis Camera Specifications: | |
---|---|
Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
Resolution (Live): | 1920X1080 6 M.P. |
Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7, 8, 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |

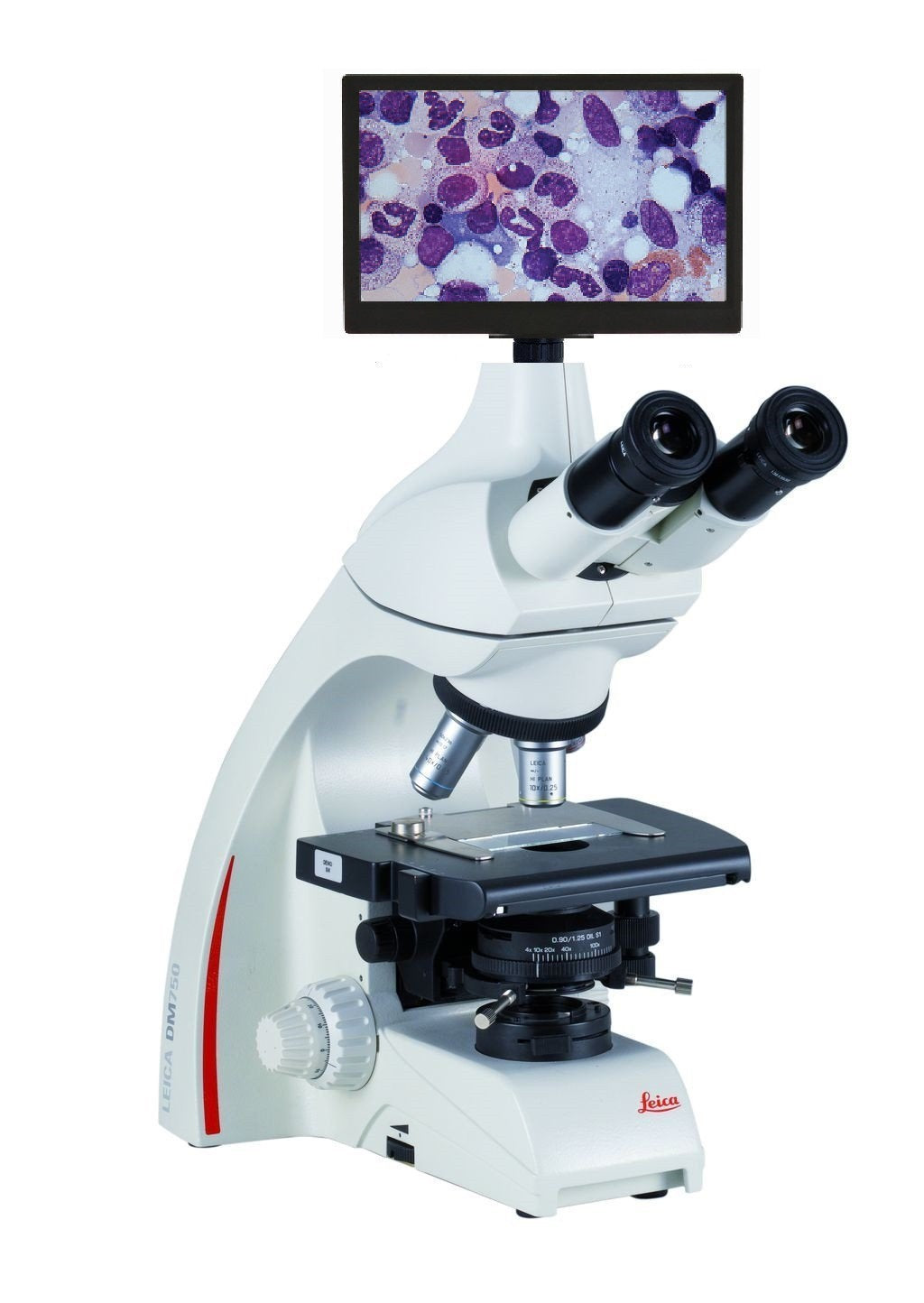

***Excelis AU-600-HDS Model Pictured***
We created a custom Leica digital microscope package for the Leica DM750 microscope. The Leica DM750 is the ideal microscope for educational and clinical practices. We have combined the Leica DM750 with your choice of Excelis HD multi-output camera. The camera is controlled by a mouse (included) which allows you to control the on board camera features without the need for a computer while being output to a HD monitor. You can capture, edit, and play back images or videos! See our demo video tab below to view these features! The camera can also be used USB to a computer to take advantage of the free software features.
With your Leica digital microscope, select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera (AU-300-HDS or AU-600-HDS). The screen is provided with either 300 or 600 HDS option.
Leica Digital Microscope Specifications |
Head: | 45° Trinocular 360 degree rotatable & c-mount |
Eyepieces: |
10x/20 Pointer eyepiece w/ eyeguard 10x/20 Focusing eyepiece w/ eyeguard |
Objectives: | Hi Plan 4x, 10x, 40x, 100x oil objectives |
Condenser: | Abbe Condenser 0.9Dry/1.25 Oil |
Mechanical Stage: | Rackless mechanical with one hand slide holder |
Focus: | Coaxial coarse/fine focus |
Illumination: | LED illumination – 6000 K temp, 25,000 h life at full intensity |
Misc: | Dust cover, power cord, oil, manual |
Warranty: | 5 Year mechanical 1 year electrical |
AU-300-HD Excelis Lite Specifications: | |
---|---|
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
AU-300-HDS Excelis Lite Specifications: | |
---|---|
Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
Image Capture: | High Speed SD Card (4GB) |
Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
AU-600-HD Excelis Camera Specifications: | |
---|---|
Mega Pixel | 6.0 M.P. |
Sensor: | SONY IMX236 |
Sensor Size: | 1/2.7” , 0.5x C-mount recommended |
Live Resolution: | 1920 x 1080 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card |
USB 2.0: 1080p, 30fps to PC or Mac | |
Exposure Time: | 0.001sec—10.0 sec |
Settings: | Auto white balance, Gain, Gamma, Saturation, Contraction |
PC Imaging Software: | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
Software Compatibility: | Windows XP, Vista, 7, 8, 10 (32 or 64 bit) |
Mac OSX (for image transfer to Mac OSX only) |
AU-600-HDS Excelis Camera Specifications: | |
---|---|
Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
Resolution (Live): | 1920X1080 6 M.P. |
Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
Image Capture: | High Speed SD Card (8GB) |
Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
Exposure Time: | 0.001 sec - 10.0 sec |
White Balance: | Auto |
Settings: | Gain, Gamma, Saturation, Contraction |
Built-in Software: | Cloud 1.0 |
PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
System Compatibility: | Windows XP, Vista 7, 8, 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
Power Supply: | DC12V/1A |
Warranty: | 1 year |
***Excelis AU-600-HDS Model Pictured***
