Leica DM500 4K Digital Microscope Package

Recently viewed

Leica DM500 4K Digital Microscope Package
Leica DM500 4K Digital Microscope Package

Leica DM500 4K Digital Microscope Package

  • SKU: DM500-4K
$4,005.00 $4,218.00
Sreen
Request Quote

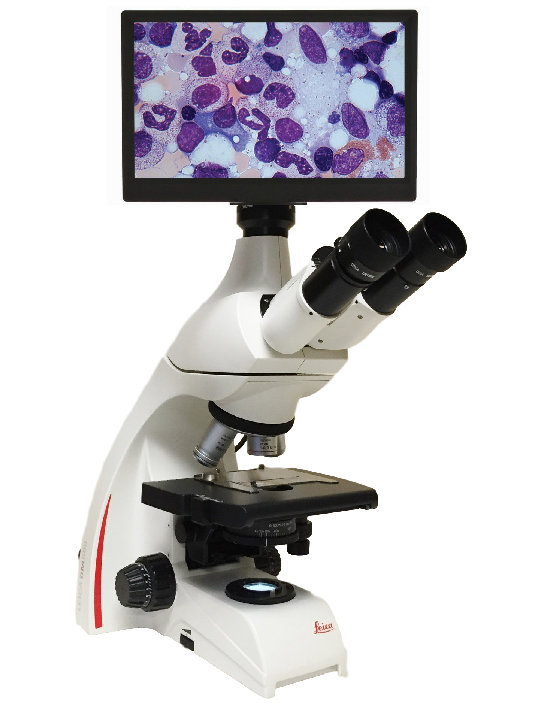

The Leica DM500 with trinocular viewing head, 10x eyepieces and Plan 4x, 10x, 40x, 100x Oil objectives. This digital package comes complete with the View4K camera with your choice, with or without viewing screen.



Leica DM500 Specifications

Head: Trinocular Viewing Head w/ C-Mount
Eyepieces: 10x/20 mm Eyepieces, 1 Focusing
Objectives: Plan 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder - easy load one hand
Condenser: Fixed 1.25 N.A. condenser with markings for each objective. - Slot for phase or darkfield
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination



Camera Specifications:

Screen: Optional 11.6" Viewing Screen
Resolution (Live): 4K (3840 x 2160)
Mega Pixels: 8.0 M.P.
Sensor: 1/1.8" Sony IMX334 - CMOS
Pixel Size: 2.0 x 2.0μ
Sensitivity: 505mV @ 1/30s (f5.6)
Shutter: Rolling
Frame Rate:

HDMI 60 FPS @ (3840 x 2160)

HDMI 60 FPS @ (1920 x 1080)

WiFi, GE 30 FPS @ (3840 x 2160)

Image & Video Capture:

HDMI - Capture to removable SD card

PC - Capture w/ software

WiFi - Capture w/ APP

Exposure Time: 0.001 sec - 10.0 sec
Output Modes: HDMI, WiFi, USB, LAN (Network)
HDMI Compatibility: Any HDMI input monitor, projector, TV (4K Not Required)

Computer

Compatibility:

Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
MAC via WiFi

Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed

PC Software:

Windows:

Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping

Mac:

Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Warranty: 1 year

The Leica DM500 with trinocular viewing head, 10x eyepieces and Plan 4x, 10x, 40x, 100x Oil objectives. This digital package comes complete with the View4K camera with your choice, with or without viewing screen.



Leica DM500 Specifications

Head: Trinocular Viewing Head w/ C-Mount
Eyepieces: 10x/20 mm Eyepieces, 1 Focusing
Objectives: Plan 4x, 10x, 40x, 100x Oil
Stage: Mechanical stage with slide holder - easy load one hand
Condenser: Fixed 1.25 N.A. condenser with markings for each objective. - Slot for phase or darkfield
Focus: Coaxial coarse/fine focus controls
Illumination: LED illumination



Camera Specifications:

Screen: Optional 11.6" Viewing Screen
Resolution (Live): 4K (3840 x 2160)
Mega Pixels: 8.0 M.P.
Sensor: 1/1.8" Sony IMX334 - CMOS
Pixel Size: 2.0 x 2.0μ
Sensitivity: 505mV @ 1/30s (f5.6)
Shutter: Rolling
Frame Rate:

HDMI 60 FPS @ (3840 x 2160)

HDMI 60 FPS @ (1920 x 1080)

WiFi, GE 30 FPS @ (3840 x 2160)

Image & Video Capture:

HDMI - Capture to removable SD card

PC - Capture w/ software

WiFi - Capture w/ APP

Exposure Time: 0.001 sec - 10.0 sec
Output Modes: HDMI, WiFi, USB, LAN (Network)
HDMI Compatibility: Any HDMI input monitor, projector, TV (4K Not Required)

Computer

Compatibility:

Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
MAC via WiFi

Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed

PC Software:

Windows:

Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping

Mac:

Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Warranty: 1 year
