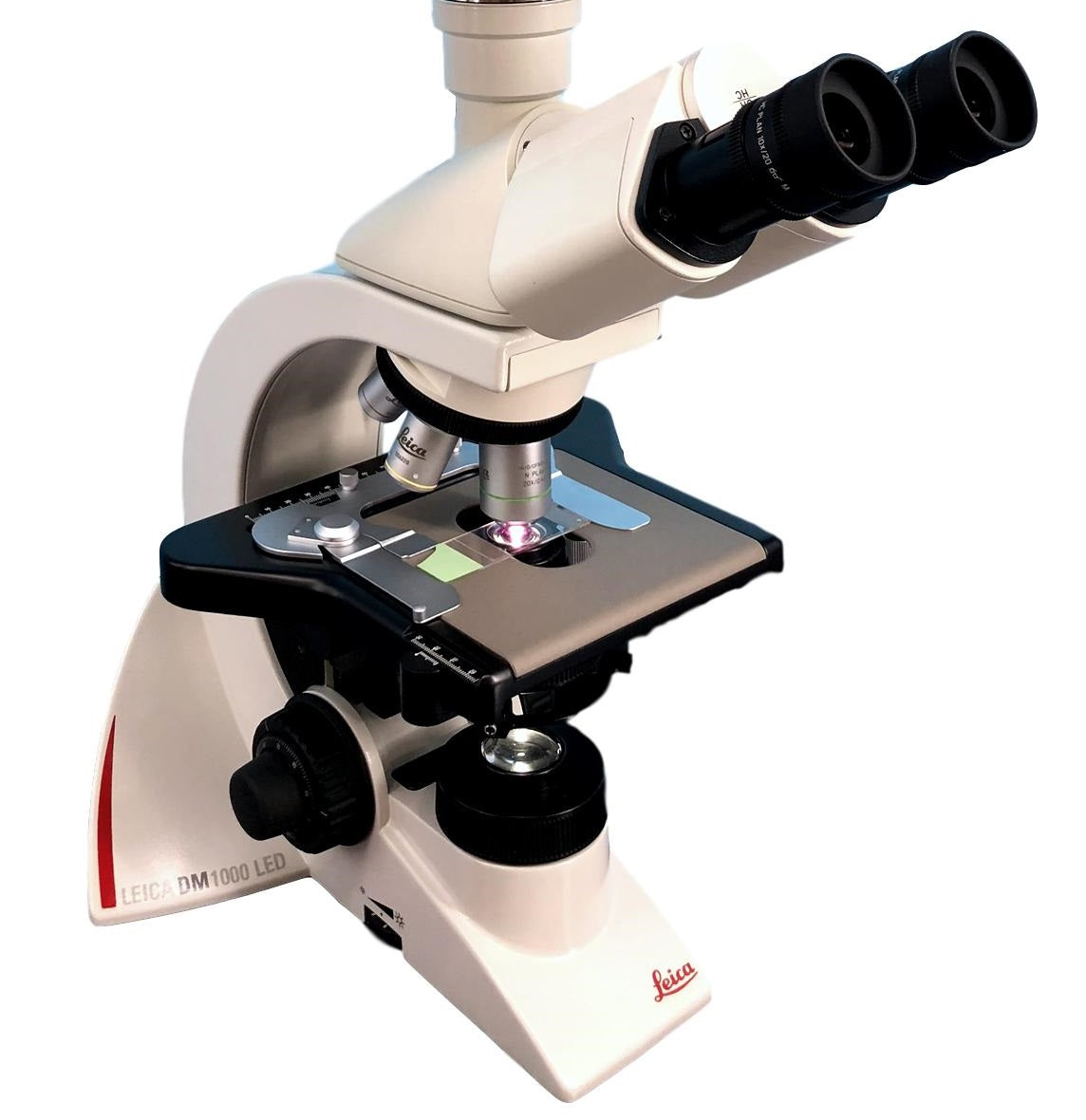

Leica DM1000 Dermatology MOHS Microscope

Recently viewed

Leica DM1000 Dermatology MOHS Microscope
Leica DM1000 Dermatology MOHS Microscope
Leica DM1000 Dermatology MOHS Microscope
Leica DM1000 Dermatology MOHS Microscope

Leica DM1000 Dermatology MOHS Microscope

  • SKU: DM1000-DERM-B
$4,185.00 $4,651.00
  • Binocular, Trinocular, or Ergonomic Binocular Head
  • 2x Objective Included
  • Ergo Ceramic Stage
  • High Quality Leica Optics
  • 5 Year Mechanical & 1 Year Electrical Warranty
Head
Request Quote

The Leica DM1000 Dermatology Mohs surgery microscope is designed with ergonomic features, and produces crisp, sharp images. Configured for dermatology/pathology/MOHS with a low power 2.5x objective for scanning. The diffusing slider allows for use of the 2.5x objective without having to remember to flip a condenser top in or out. We also provide Hi Plan 4x, 10x, and 40x objectives, additional objectives can be added if desired. You have the option to purchase this with a binocular, ergonomic tilting 0 -35 degree binocular head, or trinocular head. The ergo stage with ceramic plate is designed to withstand high volume use. The microscope offers LED illumination.

Specifications
Head:

Choose:

Binocular Tube HC -/44  - 11505193

Trinocular

Ergonomic Binocular Tilting 0 - 35 degrees

Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

N Plan 2.5x

Hi Plan 4x, 10x, 40x

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens & diffusing slider - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical



The Leica DM1000 Dermatology Mohs surgery microscope is designed with ergonomic features, and produces crisp, sharp images. Configured for dermatology/pathology/MOHS with a low power 2.5x objective for scanning. The diffusing slider allows for use of the 2.5x objective without having to remember to flip a condenser top in or out. We also provide Hi Plan 4x, 10x, and 40x objectives, additional objectives can be added if desired. You have the option to purchase this with a binocular, ergonomic tilting 0 -35 degree binocular head, or trinocular head. The ergo stage with ceramic plate is designed to withstand high volume use. The microscope offers LED illumination.

Specifications
Head:

Choose:

Binocular Tube HC -/44  - 11505193

Trinocular

Ergonomic Binocular Tilting 0 - 35 degrees

Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

N Plan 2.5x

Hi Plan 4x, 10x, 40x

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens & diffusing slider - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical
