Leica DM1000 Clinical Microscope

Recently viewed

Leica DM1000 Clinical Microscope
Leica DM1000 Clinical Microscope
Leica DM1000 Clinical Microscope
Leica DM1000 Clinical Microscope

Leica DM1000 Clinical Microscope

  • SKU: DM1000-B-HI
$4,135.00 $4,595.00
  • Fully Customizable
  • Hi Plan or N Plan Objectives
  • Ceramic Stage
  • Kohler LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Head
Objectives
Request Quote
The Leica DM1000 LED microscope is built to meet the demands of high volume laboratories. Formerly known as Leitz, now Leica, the company has been producing high quality reliable instruments since 1847. The Leica DM1000 LED clinical microscope was built with the user's comfort in mind, offering ergonomic features and is easy to operate. Select from our per-configured option or request a quote to customize your Leica DM1000 clinical microscope today. This microscope as is comes configured with a binocular viewing head with 10x/22mm FOV eyepieces. You can also choose between a trinocular, or binocular ergonomic tilting binocular head. You can choose between Hi Plan or N Plan objectives. The ergo stage comes with a XY stage stalk which can be left or right handed. This microscope comes with kohler LED illumination. You can add the Leica ICC50 W camera to this microscope at anytime. You do not need a trinocular head, it fits between the head and body of the microscope and can output HDMI, USB, or WiFi. Check out the Leica DM1000 digital package



Specifications
Head:

Choose:

Binocular Tube HC -/44  - 11505193

Ergonomic Tilting Binocular - 0-35 degrees tilt - 11501504

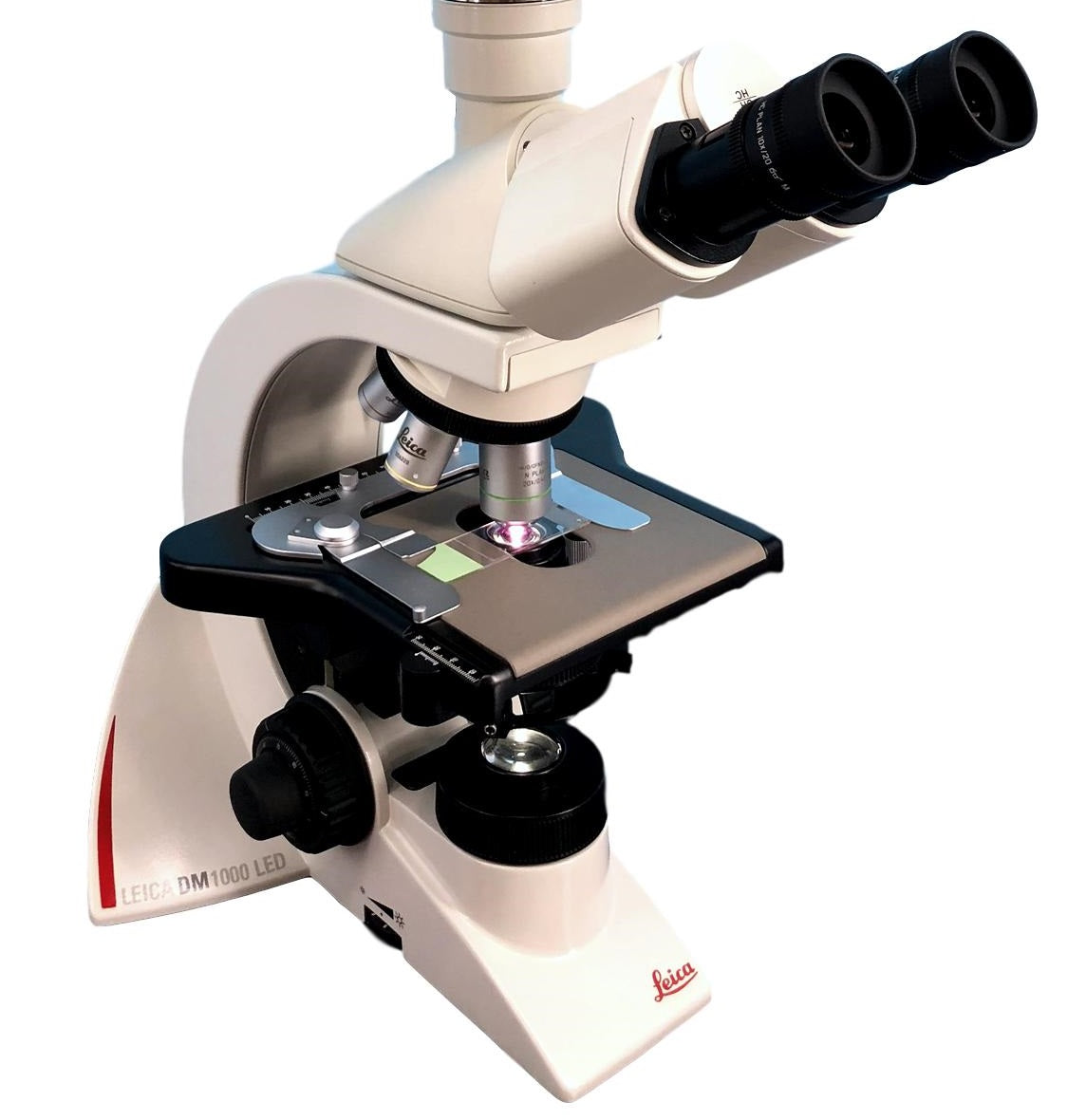

Trinocular (Not pictured)

Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 4x, 10x, 40x, 100x Oil

Or

N Plan 5x, 10x, 40x, 100x Oil

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical
The Leica DM1000 LED microscope is built to meet the demands of high volume laboratories. Formerly known as Leitz, now Leica, the company has been producing high quality reliable instruments since 1847. The Leica DM1000 LED clinical microscope was built with the user's comfort in mind, offering ergonomic features and is easy to operate. Select from our per-configured option or request a quote to customize your Leica DM1000 clinical microscope today. This microscope as is comes configured with a binocular viewing head with 10x/22mm FOV eyepieces. You can also choose between a trinocular, or binocular ergonomic tilting binocular head. You can choose between Hi Plan or N Plan objectives. The ergo stage comes with a XY stage stalk which can be left or right handed. This microscope comes with kohler LED illumination. You can add the Leica ICC50 W camera to this microscope at anytime. You do not need a trinocular head, it fits between the head and body of the microscope and can output HDMI, USB, or WiFi. Check out the Leica DM1000 digital package



Specifications
Head:

Choose:

Binocular Tube HC -/44  - 11505193

Ergonomic Tilting Binocular - 0-35 degrees tilt - 11501504

Trinocular (Not pictured)

Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 4x, 10x, 40x, 100x Oil

Or

N Plan 5x, 10x, 40x, 100x Oil

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical & 1 Year Electrical

Leica DM1000 Brochure
