Leica DM1000 w/ ICC50 W Camera - HDMI, WiFi, USB
Leica DM1000 w/ ICC50 W Camera - HDMI, WiFi, USB
Leica DM1000 w/ ICC50 W Camera - HDMI, WiFi, USB
Leica DM1000 w/ ICC50 W Camera - HDMI, WiFi, USB

Leica DM1000 w/ ICC50 W Camera - HDMI, WiFi, USB

Available: In Stock
  • Binocular or Ergonomic Binocular
  • USB, HDMI, WiFi Output HD Camera
  • Hi Plan or N Plan Objectives
  • Fully Customizable
  • Kohler LED Illumination
Wishlist
  • Product SKU: DM1000-ICC50-B-HI
$6,395.00
Request Quote

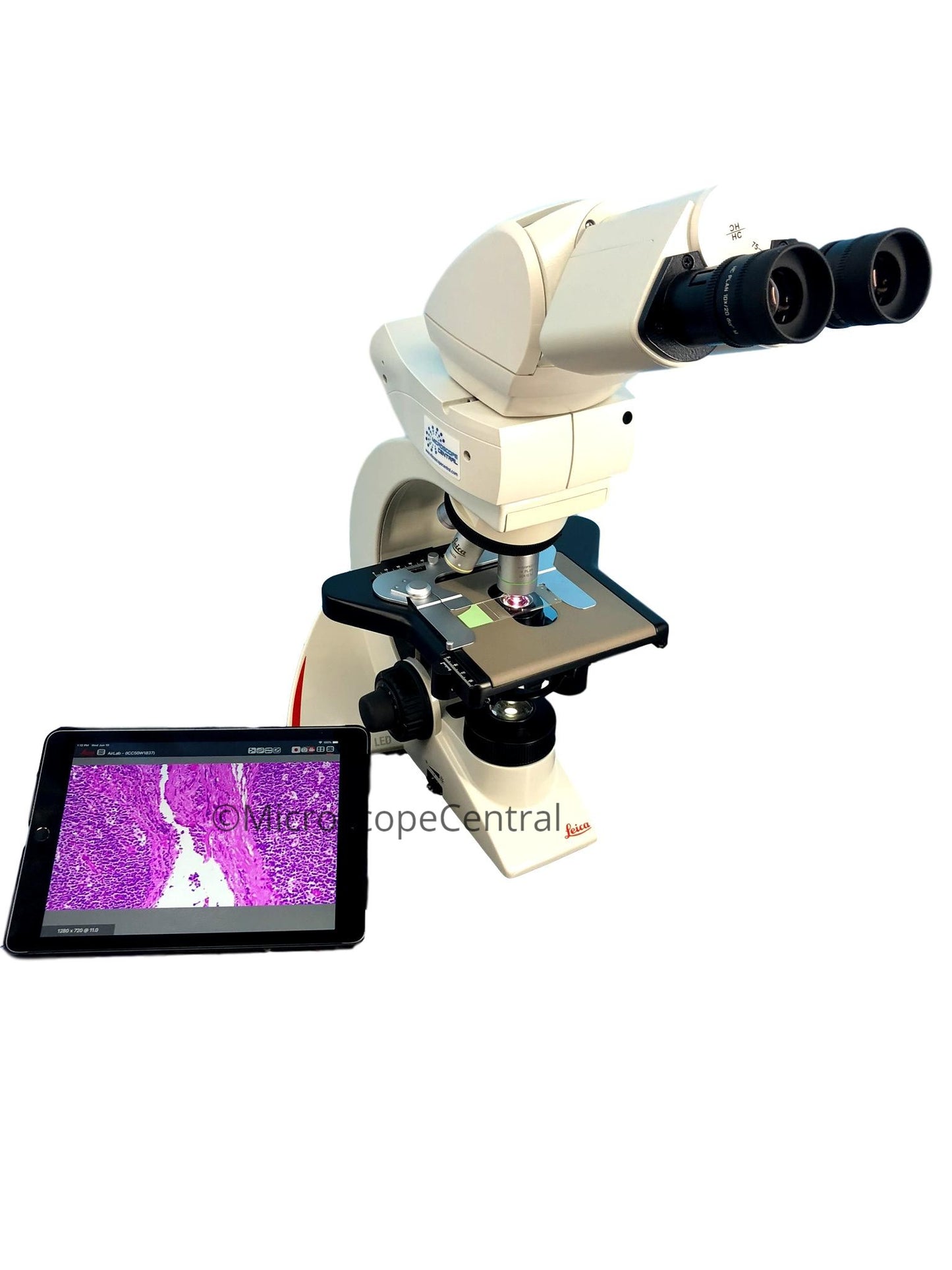

The Leica DM1000 LED microscope is a high quality clinical grade microscope that is built to meet the demands of high volume laboratories. Paired with the Leica ICC50 W camera you have a complete high definition multi-output microscope. The Leica ICC50 W can output USB to a computer, HDMI to a monitor, or WiFi to any iOS or Android device. The camera mounts between the head and body of the microscope, providing high image quality, and fast FPS. Compared to a traditional c-mount camera, the image does not need to pass through the head before getting to the camera sensor. The microscope is ergonomic controls and features to make it appropriate for long use. This microscope is highly configurable and we can further customize this microscope with various objectives and heads. We provide the option of a standard binocular head, or an ergonomic tilting binocular head. The microscope comes standard with 10x eyepieces providing a large 22mm field of view. You have your choice of Hi Plan or N Plan 4x, 10x, 40x, and 100x oil objectives. We can add a 2.5x  and or 20x lens for pathology applications. The ceramic stage provides durability and allows the slide to move with ease. The ergo stage comes with a XY stage stalk which can be left or right handed. This microscope comes with kohler LED illumination.



Specifications
Head: Binocular or Ergo Tilting Binocular - *Ergo Head Pictured*
Eyepieces: HC Plan 10x/22 Br. M Eyepieces  - 11507807
Nosepiece: Reversed, quintuple
Objectives:

Hi Plan 4x, 10x, 40x, 100x Oil

Or

N Plan 5x, 10x, 40x, 100x Oil

Stage: Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153
Condenser: Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231
Focusing: Coarse & fine focus knobs - 11888134
Illumination: Koehler LED Variable
Accessories: Dust cover, instruction manual, power cord
Warranty: 5 Year Mechanical 1 Year Electrical



ICC50 W Specifications:
Exposure time: 1 msec – 500 msec
Live image: 30 fps maximum – depends on mode and resolution setting
Full frame image acquisition: 5.0 megapixels max.
Movie clip: 1,920 x 1,080 max.
Color depth: 24-bit
Data format: JPEG / TIFF / BMP / MP4 (choices depend on capture device)
Operating systems: Windows 7, 8, Windows Vista, Macintosh OS X, Mobile devices (iOS 7, 8 and Android 4.2+)
Software: Leica AirLab (mobile devices), Leica LAS EZ (PC), Leica LAS (PC), Leica Acquire (Mac)
Minimum Computer Configuration: PC / Mac, Intel Core 2 Duo, > 2.4 GHz, 4 GB RAM, 24-bit graphics, 1,248 × 1,024
Minimum Display Specification: 1,920 x 1,080 resolution, HDMI connection, DVI connection possible with HDMI/DVI adapter cable (not provided)
Mics. Includes HDMI cable
