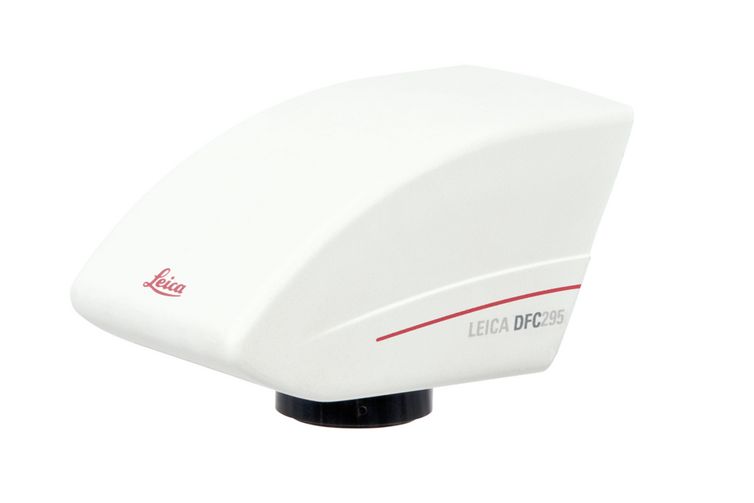

Leica DFC295 Digital Microscope Camera - 12730469

Leica DFC295 Digital Microscope Camera - 12730469

The Leica DFC295 digital microscope camera offers 3.0 M.P. 2048x1536 pixels resolution and produces high-quality color images for industrial or life science applications. The camera...

$3,703.00
Request Quote
Add to wishlist

The Leica DFC295 digital microscope camera offers 3.0 M.P. 2048x1536 pixels resolution and produces high-quality color images for industrial or life science applications. The camera delivers live images at 25 frames per second making it easy to focus while viewing on your computer screen. The connection output to a computer is a single firewire-B cable. This camera can be used on ANY microscope with a standard c-mount interface. The included Leica LAS software gives you the ability to view a live image, capture images/videos, measure, annotate, and much more! Furthermore the Twain interface allows 3rd party software applications to setup and control the camera!

Leica Microscope Camera Specifications
Mega Pixels: 3.1 M.P.
Sensor: ½” CMOS  - 0.5x or 0.55x Recommended C-Mount
Sensor Resolution: 2048 x 1536 pixel
Sensor Grade/Size: 6.55mm x 4.92mm
Pixel Size: 3.2μm x 3.2μm
Colour Depth:
30 Bit
Data Format: JPEG/ TIFF/ BMP
Operating Systems: Windows 7, 8.1 Macintosh OS X 10.9
Leica Software: Leica LAS Software
Output Method: FireWire-B  IEEE1394-B 9-pin
Power Supply: Via USB 2.0
Recommended Computer Specs:

Intel Core 2 Duo 2.4 GHz, or faster

2 GB RAM, high res graphic card with 128 MB or 256 MB RAM, Direct X V9c or V10

FireWire-B port or free PCI-express slot

DFCTwain, Leica LAS Software

Windows 7 Prof. or Ultimate, 32 or 64-bit

Windows Vista SP2, 32-bit only

Windows XP, SP3, 32-bit only



The Leica DFC295 digital microscope camera offers 3.0 M.P. 2048x1536 pixels resolution and produces high-quality color images for industrial or life science applications. The camera delivers live images at 25 frames per second making it easy to focus while viewing on your computer screen. The connection output to a computer is a single firewire-B cable. This camera can be used on ANY microscope with a standard c-mount interface. The included Leica LAS software gives you the ability to view a live image, capture images/videos, measure, annotate, and much more! Furthermore the Twain interface allows 3rd party software applications to setup and control the camera!

Leica Microscope Camera Specifications
Mega Pixels: 3.1 M.P.
Sensor: ½” CMOS  - 0.5x or 0.55x Recommended C-Mount
Sensor Resolution: 2048 x 1536 pixel
Sensor Grade/Size: 6.55mm x 4.92mm
Pixel Size: 3.2μm x 3.2μm
Colour Depth:
30 Bit
Data Format: JPEG/ TIFF/ BMP
Operating Systems: Windows 7, 8.1 Macintosh OS X 10.9
Leica Software: Leica LAS Software
Output Method: FireWire-B  IEEE1394-B 9-pin
Power Supply: Via USB 2.0
Recommended Computer Specs:

Intel Core 2 Duo 2.4 GHz, or faster

2 GB RAM, high res graphic card with 128 MB or 256 MB RAM, Direct X V9c or V10

FireWire-B port or free PCI-express slot

DFCTwain, Leica LAS Software

Windows 7 Prof. or Ultimate, 32 or 64-bit

Windows Vista SP2, 32-bit only

Windows XP, SP3, 32-bit only



Leica DFC295 Brochure
