AmScope 2.8MP USB3.0 CCD Fluorescence Digital Camera
![]()
![]()
![Accu-Scope 3000 LED Microscope - Microscope Central
- 2]()
![Accu-Scope 3000 Digital Microscope Package]()
![Accu-Scope EXC-120 Microscope]()
Sensor: Sony ICX674AQG (color)
Sensor Type: CCD
Sensor Size: 10.7x9.2mm
Pixel Size: 4.54
Resolution: 2.8MP
Frame Rate: 18fps @ 1932x1092, 15fps @ 1940x1460
Sensitivity: 800mV
Connectivity: USB 3.0
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Advanced software for Windows:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Life-time free software upgrades

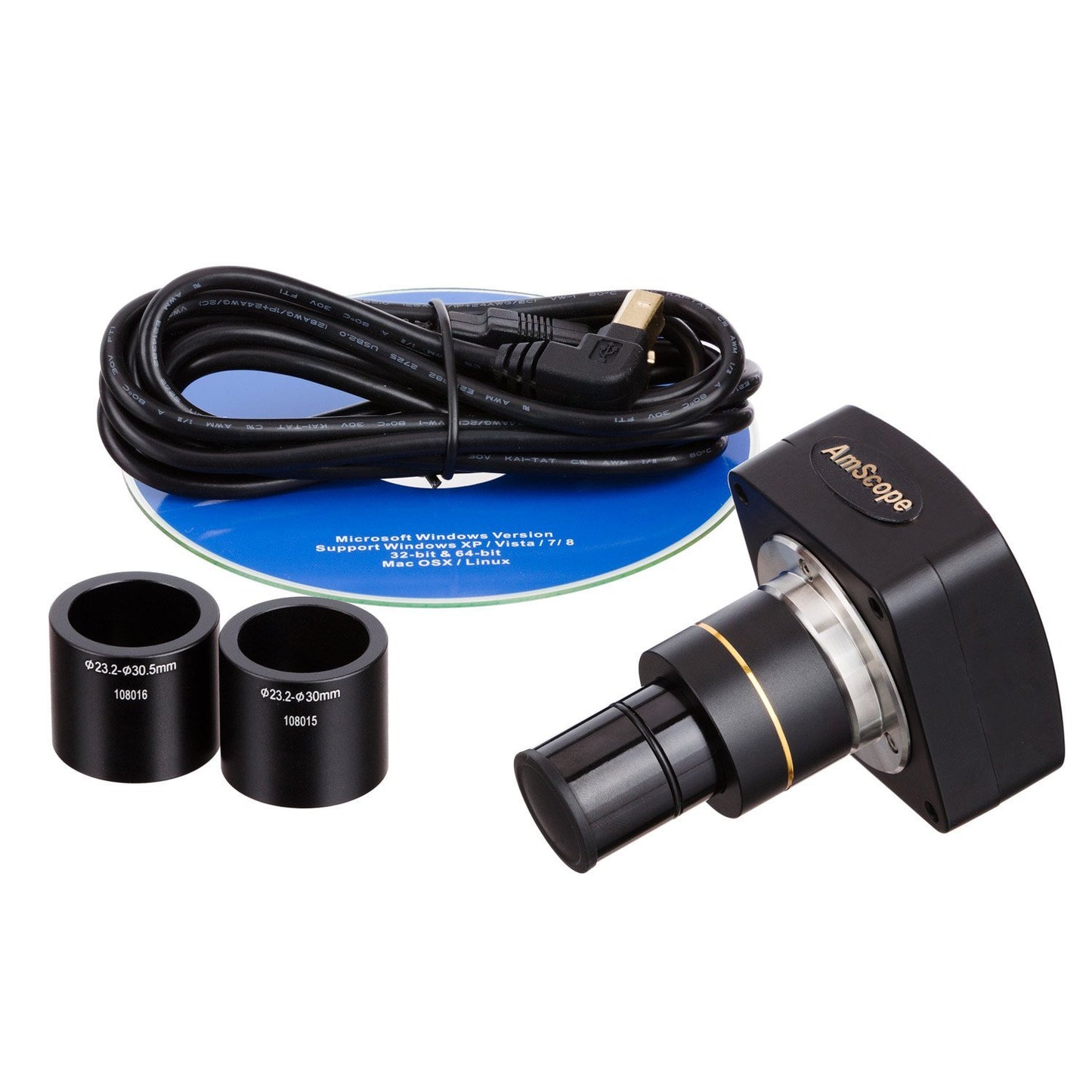

One 2.8MP USB3.0 Digital Camera
One Reduction Lens
One 6' (1.8m) USB Cable
Two Adapters: 30mm and 30.5mm
One CD with Software and User's Instructions
Sensor: Sony ICX674AQG (color)
Sensor Type: CCD
Sensor Size: 10.7x9.2mm
Pixel Size: 4.54
Resolution: 2.8MP
Frame Rate: 18fps @ 1932x1092, 15fps @ 1940x1460
Sensitivity: 800mV
Connectivity: USB 3.0
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Advanced software for Windows:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Life-time free software upgrades
One 2.8MP USB3.0 Digital Camera
One Reduction Lens
One 6' (1.8m) USB Cable
Two Adapters: 30mm and 30.5mm
One CD with Software and User's Instructions
![Unitron LED Quadrant Ring Light - 15854]()
![Unitron LED Quadrant Ring Light - 15854]()
![AccuCam 3.0 M.P. Microscope Eyepiece Camera]()
![AccuCam 3.0 M.P. Microscope Eyepiece Camera]()
![Nikon E200 Microscope Bulb - 3 Pack 6V 20W]()
![Leica S Series Stereo Microscope Objectives]()
![Leica S Series Stereo Microscope Objectives]()
![Eyepieces for Meiji EMZ Microscope Series]()
Unsure Which Microscope?
Check Out Our Buying Tips
Confused?
Our Experts Can Help Suggest The Best Microscope For Your Needs
Featured
Accu-Scope 3000 LED Microscope
$1,122.00
$936.00
Accu-Scope 3000 Digital Microscope Package
$2,368.00
$1,977.00
Accu-Scope EXC-120 LED Microscope
$771.00
$643.00
AmScope 2.8MP USB3.0 CCD Fluorescence Digital Camera
- SKU: MU283-CCD-FL
$2,013.99
$2,416.99
The MU283-CCD-FL is a highly-sensitive 2.3-megapixel CCD digital camera. The large sensor provides an extremely high signal-to-noise ratio, delivering excellent results in low-light applications such as fluorescence and dark-field microscopy. With exposure times up to one hour, The USB 3.0 interface allows for maximum transfer-rates.
With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Camera Specifications:
Software Specifications:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Contents:
The MU283-CCD-FL is a highly-sensitive 2.3-megapixel CCD digital camera. The large sensor provides an extremely high signal-to-noise ratio, delivering excellent results in low-light applications such as fluorescence and dark-field microscopy. With exposure times up to one hour, The USB 3.0 interface allows for maximum transfer-rates.
With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
Camera Specifications:
Software Specifications:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Contents:
