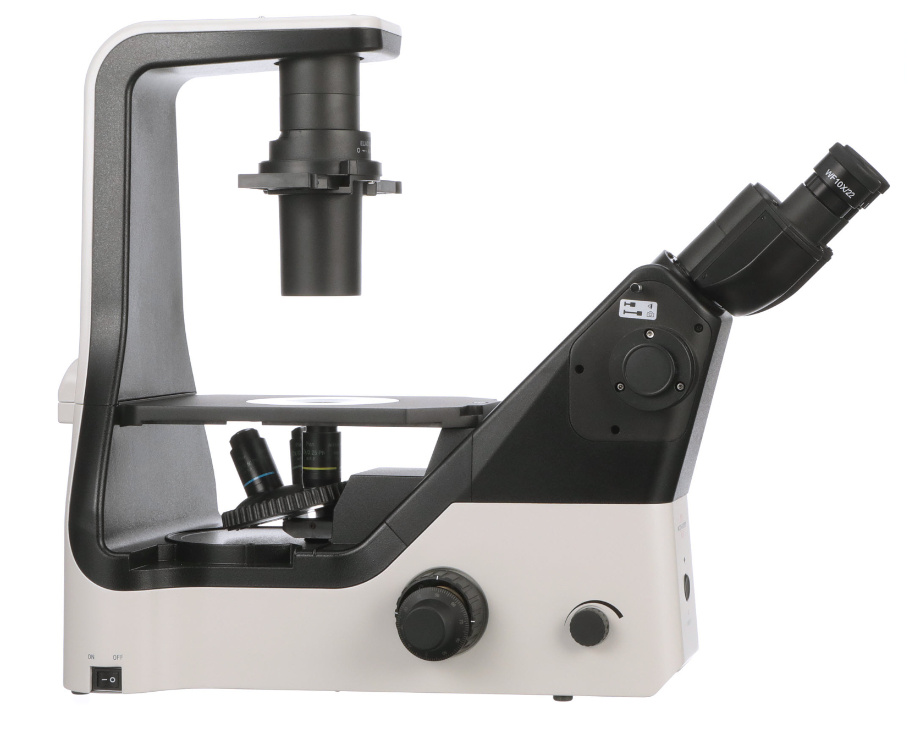

Accu-Scope EXI-410 Inverted Phase Contrast Tissue Culture Microscope

Recently viewed

Accu-Scope EXI-410 Inverted Phase Contrast Tissue Culture Microscope
Accu-Scope EXI-410 Inverted Phase Contrast Tissue Culture Microscope

Accu-Scope EXI-410 Inverted Phase Contrast Tissue Culture Microscope

  • SKU: EXI-410-PH
$3,218.00 $3,854.00
  • Binocular w/ Side Photo Port
  • Infinity Plan Phase Objectives
  • ELWD Condenser
  • Variable LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Request Quote

 The Accu-Scope EXI-410 microscope is suitable for routine tissue culture and research applications. Designed to meet the demands of laboratory use, this microscope is easy to use while providing high contrast images. Incorporating the latest in LED illumination, and NIS60 Infinity corrected long working distance objectives provides brighter, and sharper images than its competitors. The binocular viewing head is fully rotatable, providing a 35mm increase / decrease in viewing height to accommodate a multi user environment. A side photo port allows you to add a camera without blocking the stage/specimen line of sight. A pair of 10x eyepieces provide you with a 22mm field of view, and come with roll down eyeguards for added comfort. The quintuple nosepiece comes standard with LWD Infinity Plan Achromat Phase contrast objectives, with the option to upgrade to Semi-Apochromatic objective lenses. For further enhanced contrast you can purchase the emboss contrast slider, or upgrade to hoffman modulation contrast. A plain stage comes standard on the EXI-410, and a XY mechanical stage with various specimen holders for petri dishes, slides, and multiwell plates can be added. The ELWD condenser has an N.A. of 0.3 with a slot for the phase contrast slider. The 3 watt S-LED variable intensity illumination provides over 20,000 hours of constant use. The Accu-Scope EXI-410 microscope can be fully customized to meet the demands of your laboratory.


Specifications
Head: Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; binocular head rotates to raise/lower viewing position by 35mm
Photo Port: Left side camera port with light split - 100/0 or 0/100
Eyepieces: WF10x/22mm eyepieces with eyeguards
Nosepiece: Side facing quintuple
Objectives: NIS60 Infinity Plan 4x, Plan Phase 10x & 20x
Stage: Fixed plain stage 170mm(X) × 250mm(Y); 300mm wide with auxiliary stages installed; Optional mechanical stage and specimen holders
Condenser: ELWD condenser, N.A. 0.3 working distance 75mm
Focus: Coaxial Coarse & fine focus
Illumination: Variable 3 watt S-LED illumination
Accessories: Dust Cover, Power Cord, Manual
Warranty: 5 Year Electrical & Mechanical
