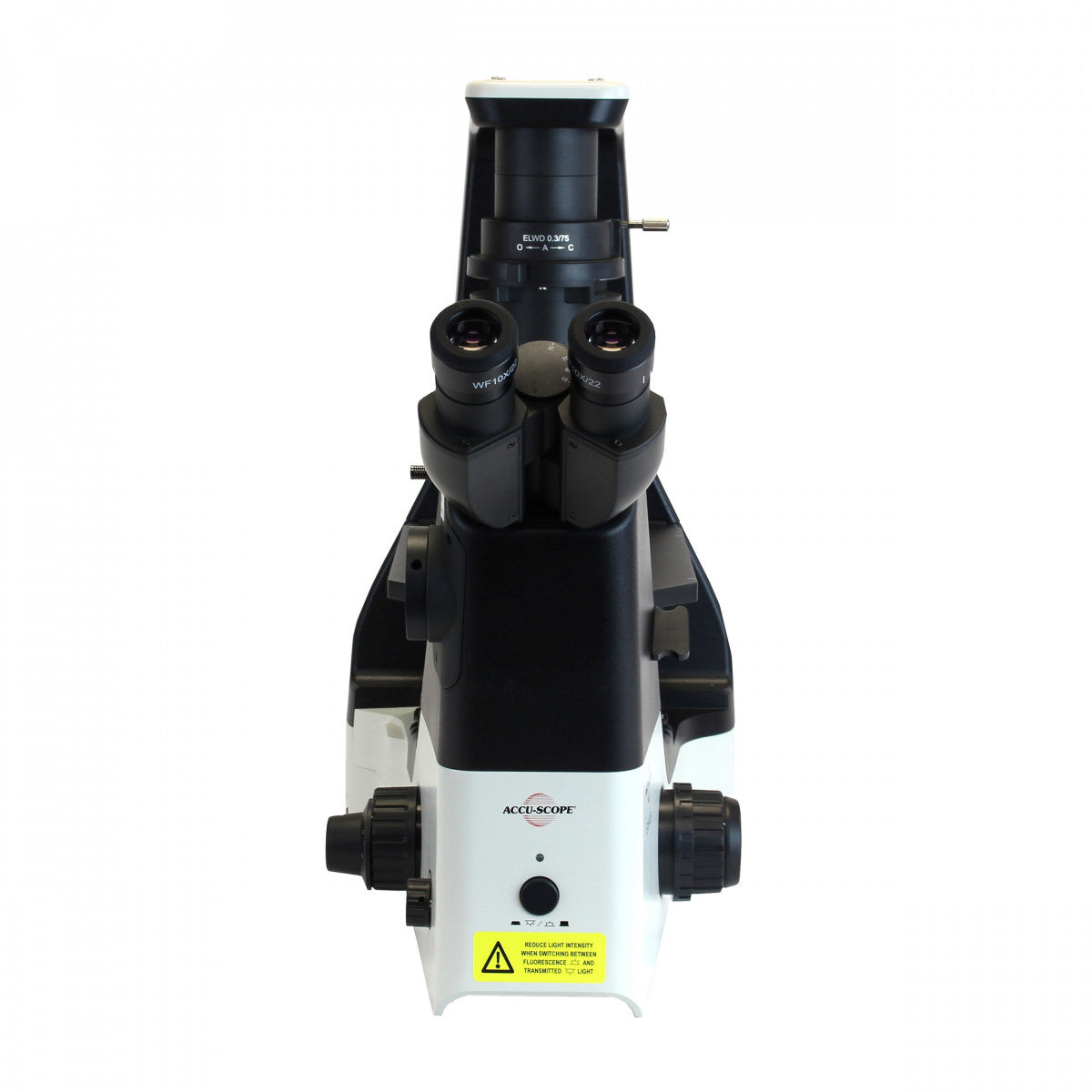

Accu-Scope EXI-410 Inverted Phase Contrast LED Fluorescence Microscope
- SKU: EXI-410-FL-PA-1
- Binocular w/ Side Photo Port
- Plan Achromat or S-APO Phase Objectives
- LED Fluorescence Illumination
- Fully Customizable
- 5 Year Mechanical & Electrical Warranty
The Accu-Scope EXI-410 inverted phase contrast LED fluoresce microscope is an advanced research grade microscope incorporating the latest in optical and LED technology. The newly developed LED fluoresce illumination is compact, reliable, and consistent. With LED fluorescence illumination you no longer have to wait for warm up / cool down, or worry about bulb changes! The Infinity corrected NIS60 objectives provide brighter and crisper images than its competitors. The microscope comes standard with a binocular viewing head and a pair of 10x eyepieces with a 22mm field of view. The side mounted camera port allows for the addition of a camera. The side facing nosepiece can hold up to five objectives. You can choose between Infinity Corrected LWD Plan Achromat Phase or Infinity Corrected LWD S-APO Fluor Phase Objectives. The ELWD condenser has an N.A. of 0.3 with a slot for the phase contrast slider. The included contrast shield secures around the condenser for enhanced fluorescence illumination by reducing ambient light. The integrated LED fluorescence illumination can be configured with up to three different wavelengths. This microscope can be fully customized to meet your specific needs.
Specifications | |
---|---|
Head: | Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; binocular head rotates to raise/lower viewing position by 35mm |
Photo Port: | Left side camera port with light split - 100/0 or 0/100 |
Eyepieces: | WF10x/22mm eyepieces with eyeguards |
Nosepiece: | Side facing quintuple |
Objectives: |
NIS60 Infinity Plan 4x, Plan Phase 10x & 20x -or- NIS60 Infinity S-APO Fluor Phase 4x, 10x, 20x Additional Objectives Available |
Stage: | Fixed plain stage 170mm(X) × 250mm(Y); 300mm wide with auxiliary stages installed; Optional mechanical stage and specimen holders |
Fluorescence: |
EPI Fluorescence LED Illuminator: Up To 3 Wavelengths Contrast Shield *See wavelength options below* |
Condenser: | ELWD condenser, N.A. 0.3 working distance 75mm |
Focus: | Coaxial Coarse & fine focus |
Illumination: | Variable 3 watt S-LED illumination |
Accessories: | Dust Cover, Power Cord, Manual |
Warranty: | 5 Year Electrical & Mechanical |
Part Number | Filter Options: |
410-3900 | DAPI, Exciter: AT350/50x, Dichroic: AT410DC, Emitter: AT460/50m |
410-39002 | GFP, FITC, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m |
410-39004 | TRITC, Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m |
410-39010 | Texas Red, Exciter: AT560/40x, Dichroic: AT600DC, Emitter: AT635/60m |
410-39007 | Cy5, Exciter: AT620/50x, Dichroic: AT655DC, Emitter: AT690/50m |
410-39009 | Acridine Orange, Di-8-ANEPPS, Exciter: AT480/30x, Dichroic: AT505DC, Emitter:AT620/60m |
The Accu-Scope EXI-410 inverted phase contrast LED fluoresce microscope is an advanced research grade microscope incorporating the latest in optical and LED technology. The newly developed LED fluoresce illumination is compact, reliable, and consistent. With LED fluorescence illumination you no longer have to wait for warm up / cool down, or worry about bulb changes! The Infinity corrected NIS60 objectives provide brighter and crisper images than its competitors. The microscope comes standard with a binocular viewing head and a pair of 10x eyepieces with a 22mm field of view. The side mounted camera port allows for the addition of a camera. The side facing nosepiece can hold up to five objectives. You can choose between Infinity Corrected LWD Plan Achromat Phase or Infinity Corrected LWD S-APO Fluor Phase Objectives. The ELWD condenser has an N.A. of 0.3 with a slot for the phase contrast slider. The included contrast shield secures around the condenser for enhanced fluorescence illumination by reducing ambient light. The integrated LED fluorescence illumination can be configured with up to three different wavelengths. This microscope can be fully customized to meet your specific needs.
Specifications | |
---|---|
Head: | Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; binocular head rotates to raise/lower viewing position by 35mm |
Photo Port: | Left side camera port with light split - 100/0 or 0/100 |
Eyepieces: | WF10x/22mm eyepieces with eyeguards |
Nosepiece: | Side facing quintuple |
Objectives: |
NIS60 Infinity Plan 4x, Plan Phase 10x & 20x -or- NIS60 Infinity S-APO Fluor Phase 4x, 10x, 20x Additional Objectives Available |
Stage: | Fixed plain stage 170mm(X) × 250mm(Y); 300mm wide with auxiliary stages installed; Optional mechanical stage and specimen holders |
Fluorescence: |
EPI Fluorescence LED Illuminator: Up To 3 Wavelengths Contrast Shield *See wavelength options below* |
Condenser: | ELWD condenser, N.A. 0.3 working distance 75mm |
Focus: | Coaxial Coarse & fine focus |
Illumination: | Variable 3 watt S-LED illumination |
Accessories: | Dust Cover, Power Cord, Manual |
Warranty: | 5 Year Electrical & Mechanical |
Part Number | Filter Options: |
410-3900 | DAPI, Exciter: AT350/50x, Dichroic: AT410DC, Emitter: AT460/50m |
410-39002 | GFP, FITC, Exciter: AT480/30x, Dichroic: AT505DC, Emitter: AT535/40m |
410-39004 | TRITC, Exciter: AT540/25x, Dichroic: AT565DC, Emitter: AT605/55m |
410-39010 | Texas Red, Exciter: AT560/40x, Dichroic: AT600DC, Emitter: AT635/60m |
410-39007 | Cy5, Exciter: AT620/50x, Dichroic: AT655DC, Emitter: AT690/50m |
410-39009 | Acridine Orange, Di-8-ANEPPS, Exciter: AT480/30x, Dichroic: AT505DC, Emitter:AT620/60m |
LWD Infinity Plan Achromat Phase Contrast Objectives
LWD Infinity S-APO Phase Objectives
Hoffman Modulation Contrast Objectives
Hoffman Modulation Condenser & Sliders
