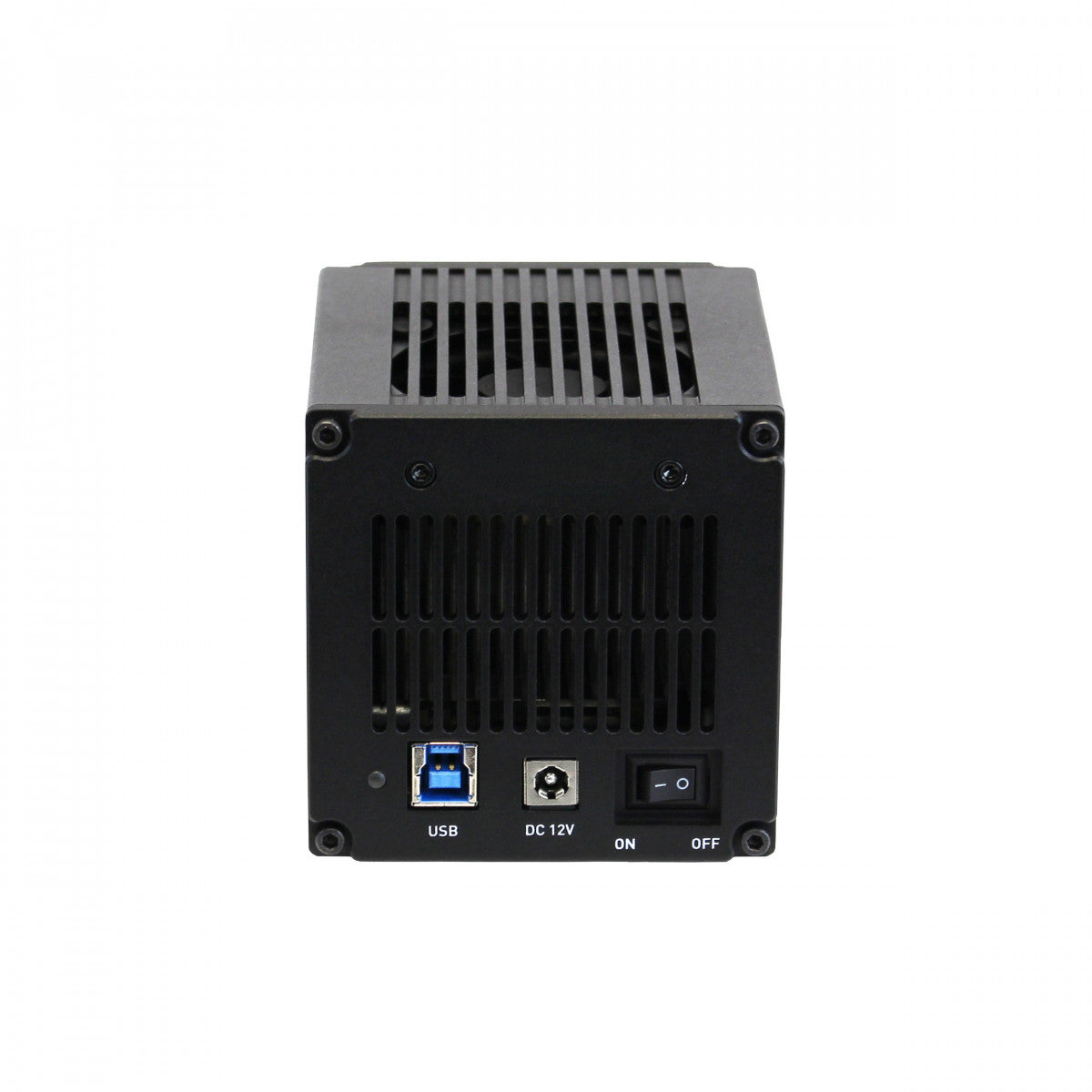

Accu-Scope Excelis MPX-20RC Microscope Camera
Accu-Scope Excelis MPX-20RC Microscope Camera
|
SKU: AU-20RC-CMOS
Couldn't load pickup availability
Description
The new Excelis™ MPX-20RC color camera delivers excellent color performance and superb low-light sensitivity for microscopy imaging in research applications. A Sony Exmor™ back-illuminated CMOS sensor is at the core of the MPX-20RC and incorporates cooling technology borrowed from much more expensive scientific CMOS cameras. The result is a high resolution color camera with fast frame rates that is truly suitable for both brightfield and fluorescence imaging. The large 1" sensor delivers a massive 20MP image for viewing fine detail in samples. Lightning fast data transfer across a USB 3.0 cable ensures stunning live views of the specimen. The new CaptaVision+ software also brings a new dimension to imaging with real-time stitching, real-time intelligent flatfield correction, depth of field fusion, dynamic measurements, and much more! This camera is NDAA 899 compliant!
- Excellent color and fast frame rates
- Deep cooled camera sensor for remarkably low noise
- High sensitivity for fluorescence imaging
- Real-time stitching (via CaptaVision+)
- Depth of field fusion (via CaptaVision+)
- Intelligent flatfield correction (via Captavision+)
- Sony Exmor™ IMX183 color CMOS sensor
- View full 20MP live images at 14fps (faster frame rates at lower resolution)
- New CaptaVision+ Imaging Software (included) delivers full camera control, advanced image processing, customizable user interface, static and dynamic measurements with layers, and more (requires PC; not included).
- Standard C-mount easily adapts to most microscopes; 1.0x camera adapter recommended.
- 1-year warranty
- In the box: Excelis MPX-20RC Camera, USB 3.0 Cable, power adapter and cable, CaptaVision+ PC Imaging Software
| Excelis MPX-20RC (AU-20RC-CMOS) | |
|---|---|
| Sensor | 1" Sony STARVIS IMX183 color CMOS, 2.4µm pixels |
| Quantum Efficiency | 84% @ 535nm |
| Dynamic/Static Resolution | 5472x3648 |
| Frame Rate | 14fps @ full frame (5472x3648), 30fps @ 2736x1824, 30fps @ 1824x1216 |
| Shutter | Rolling |
| Readout Noise | <1.0e- |
| Full Well Capacity | 3000e- (HDR) |
| Bit Depth | 16bit/8bit |
| Cooling | Forced air (Ambient at +25°C): -15°C |
| Binning | 2x2, 3x3, 4x4 |
| Image Transmission | High speed via USB 3.0 to PC |
| Exposure Time | Manual or Auto / 18μs—1hour |
| White Balance | Automatic and Manual |
| Other Settings | Gain, Gamma, Noise Reduction, Flatfield Correction, and more |
| PC Imaging Software | CaptaVision+ Imaging Software (for PC and Mac OS; Linux under development) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield correction; extended depth of focus (focus stacking); real-time image stitching; fluorescence image settings; fluorescence multi-color channel mixer merge; HDR (High Dynamic Range) function Image Types: JPG, PNG, TIF and DICOM (not available for Mac OS) |
| Output Mode | USB3.0 (compatible with USB2.0) |
| System Requirements (for PC Imaging Software) | Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher (USB 3.0 recommended) |
| Power Supply | 12V with dedicated power supply |
| Lens Mount | C-Mount lens adapter, 1.0x recommended |
Brochure
Accu-Scope MPX-20RC BrochureReviews
