Dage MTI DC-330 3CCD Color Digital Camera with Controller and Cables
Dage MTI DC-330 3CCD Color Digital Camera with Controller and Cables
Dage MTI DC-330 3CCD Color Digital Camera with Controller and Cables
Dage MTI DC-330 3CCD Color Digital Camera with Controller and Cables

Dage MTI DC-330 3CCD Color Digital Camera with Controller and Cables

$2,500.00
Request Quote
  • Order within
Dage MTI DC330 3 Chip Digital Camera
This camera for microscopes is brand new and in its original packaging!

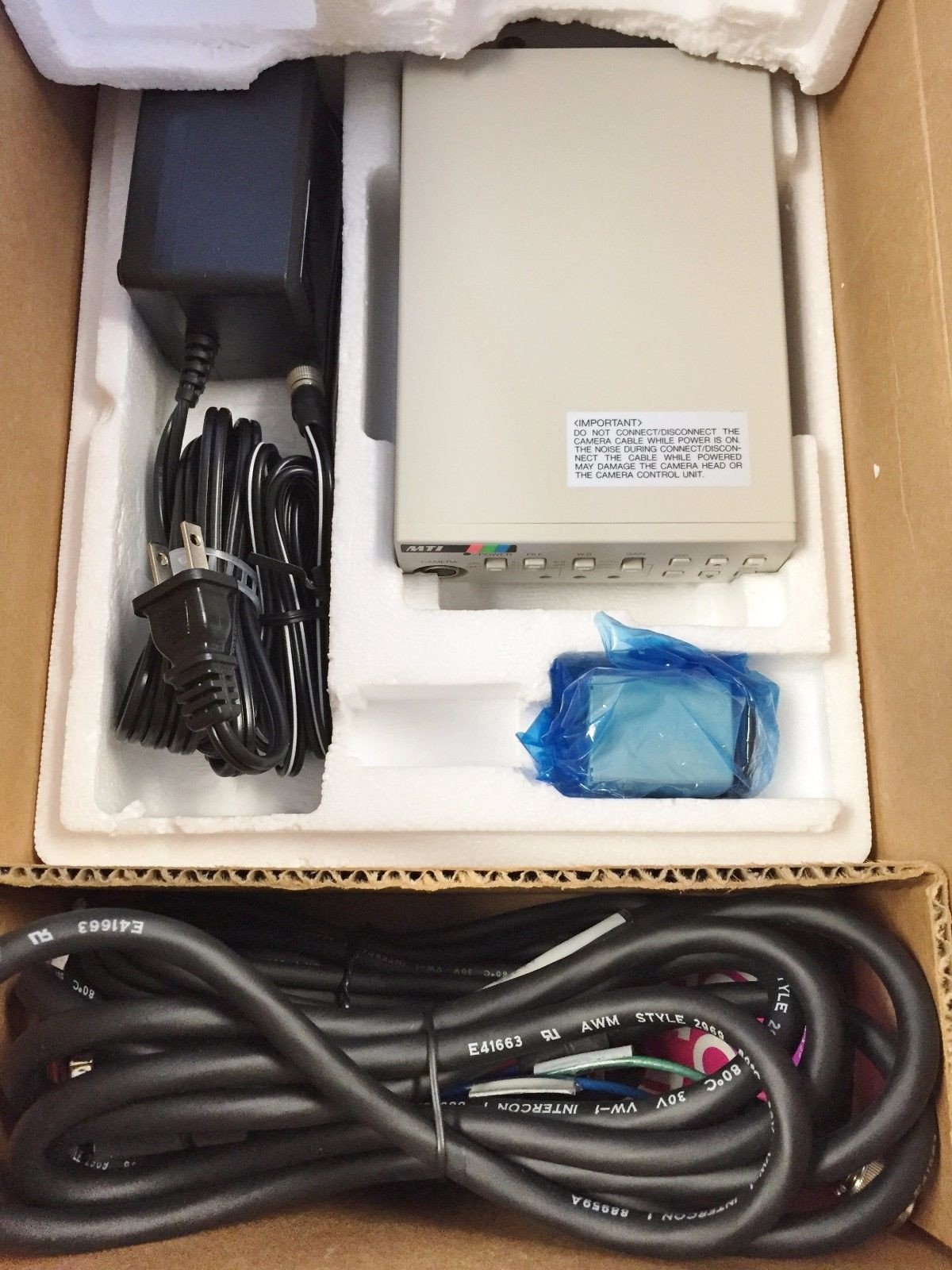

This Dage MTI camera is brand new, old stock. It has been tested for good working order and comes complete with Camera, Digital Camera Controller, power cord, camera cable (18-pin to 18-pin), RGB cable and S-Video cable. Original documentation and manual are included.
  • 10-bit, digital processing - Resolves more grey and color information
  • Resolution up to 750 TV lines
  • On-chip integration to 8 seconds (256 frames)
    • Ideal for use in fluorescence microscopy
  • Digital horizontal and verticle detail enhancement
  • On screen programming for 41 internal camera functions
  • Three user-defined memories retain camera settings
  • Camera for microscope features an RS-232c interface
  • Automatic color shading correction
  • RGB, Y/C, NTSC, or B/W video outputs
Dage MTI Specifications
Imaging Elements 1/3", 410,000 pixel, microlens interline CCD (x3)
Effective Pixels 768 (H) x 494 (V)
Resolution Color Y/C 750 TV lines
RGB 570 TV lines
Monochrome 750 TV lines
Signal-to-Noise Ratio 62 dB / 10 bit DSP circuitry
Minimum Subject Resolution 8 lux @ f2.2, +18 dB gain, 50 IRE output
Scan Frequency 15.734 kHz horizontal, 59.94 Hz vertical
Scan Type 2:1 interlaced, NTSC
Inputs/Outputs RGB, Sync out 9 pin
Y/C out, B/W out 9 pin, S video 4 pin
NTSC, B/W out BNC
Sync in 9 pin, BNC
Output Impedance 75 ohms
Synchronization Method Internal or external (automatic switching)
White Balance Manual, auto, or auto tracking
Electronic Shutter Settings 8 step manual to 1/10,000 second
Auto shutter to 1/50,000 second
Manual Gain 1 dB increments to +18 dB
AGC Maximum selectable for +3, +6, +9, +12, +18 db
Horizontal Detail Frequencies Low=2.8 mHz, Norm=3.5 mHz, High=4.2 mHz
Operating Temperatures -10 degress C tp +50 degrees C
Operating Humidity 30% to 90%
Dimensions Head: 32mm (W) x 41mm (H) x 40mm (D)
CCU: 110m (W) x 40mm (H) x 155mm (D)
Weight Head: 2.1 ozs., CCU: 1.47 lbs
Lens Mount 16mm C mount
Power Supply Unit 12 VDC at 700 mA
