Unitron ZoomHD Digital Zoom Inspection System On Track Stand w/ Monitor
Unitron ZoomHD Digital Zoom Inspection System On Track Stand w/ Monitor
Unitron ZoomHD Digital Zoom Inspection System On Track Stand w/ Monitor

Unitron ZoomHD Digital Zoom Inspection System On Track Stand w/ Monitor

  • SKU: 14711-TS
$1,945.00 $2,115.00
  • Live Real Time
  • 0.7x - 5x Zoom w/ Click Stops
  • 4.0 M.P. Camera
  • Easily Capture Image & Videos
  • LED Ring Light
Request Quote

The Unitron ZoomHD comes complete with an integrated 12" HD monitor on a tracking stand. The monitor allows for real time, live specimen examination and displays the on-board features of the system for an all-in-one solution. Using the included wireless mouse you can control the camera settings, capture images, and more. The ZoomHD offers a 0.7x - 5.0x magnification range with click stops at 1x, 2x, 3x, 4x, and 5x magnifications. The integrated LED ring light has 56 bright LED bulbs which are easily adjustable to provide the right amount of illumination for your sample. This system is ideal for quality control, inspection, or even dissection.

Live HD Images for Rapid Inspection

The 2.0 megapixel CMOS camera of the ZoomHD delivers crisp, sharp images for lightning-fast live viewing or captured photos. The ZoomHD connects to the integrated 12” HD monitor with its included HDMI cable. Wide Dynamic Range (WDR) enables visualization of more detail in the sample.

Wide 7:1 Zoom Range

The ZoomHD offers a 0.7x – 5.0x magnification range with click stops at 1x, 1.5x, 2x, 3x, 4x and 5x. Magnification can be easily adjusted on the front of the microscope.

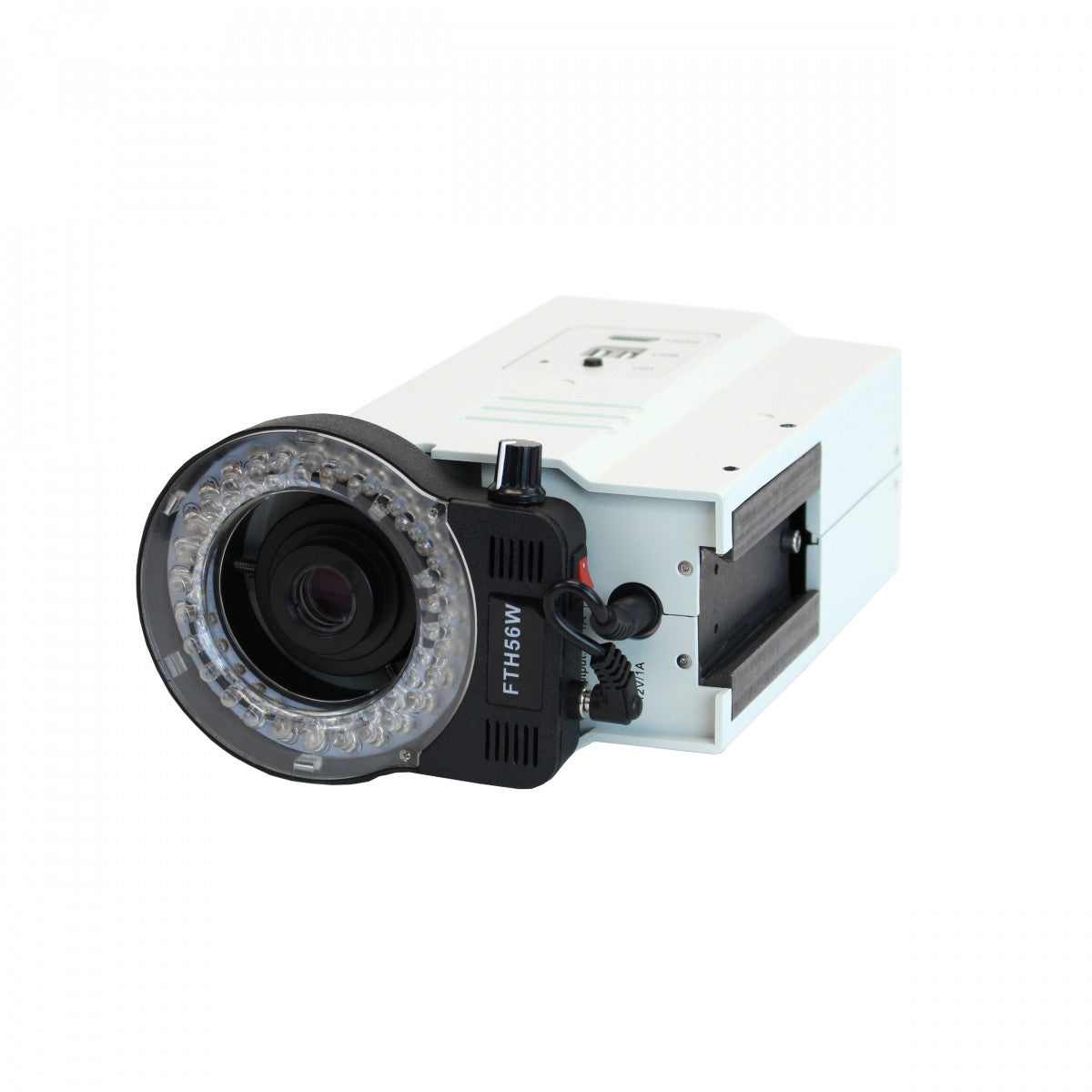

Integrated LED Ring Light

A ring light is integrated into the ZoomHD microscope. 56 bright LEDs
provide brilliant, even illumination across the field of view. Use the adjust-able intensity to provide the right amount of illumination for your sample.

On-screen Camera Control — No PC required!

The ZoomHD features built-in camera that can be readily controlled using just the on-board software and included wireless mouse. Save images directly to a user-supplied USB flash drive. No need for a PC!



Specifications
Zoom Body: Zoom lens 0.7x—5.0x with click stops
Objectives: 1x objective (included), W.D. 105mm, FOV 25mm-3.5mm
Illumination: Integrated LED ring light with 56 LEDs, adjustable intensity, color temperature 5000-5500K
Camera: Built-in 2.0 MP CMOS camera with HDR adjustment
Features: Built-in camera and software; on-screen controls (with optional monitor) for rapid inspection
Input / Output Modes: HDMI Output ● USB 2.0 (2) Included: HDMI cable with models requiring user-supplied HD monitor; wireless mouse (all models)
Storage: USB drive (not included)
Stand: Track Stand
Monitor Format: HD ready (available with integrated HD monitor or user-supplied monitor)
Power Supply: 100/240v; 50/60Hz; 12V, 3.3A power consumption
Dimensions: 260mm x 320mm x 622mm
Warranty: 5 Year Mechanical & Electrical
