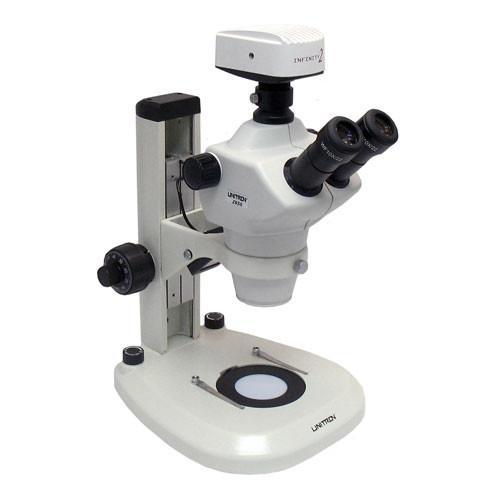

Unitron Z850 Zoom Stereo Microscope Series

Unitron

$770.00  $1,026.00

Request Quote

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.

The Unitron Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

Specifications
Head: Binocular OR Trinocular 50/50 Split viewing head - 0.8x to 5.0x zoom range, inclined at 45°, 115 mm working distance, interpupillary distance adj. 52-75mm, glass lens shield
Eyepieces: Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view
Zoom Range: 0.8x-5x (8x-50x)
Objectives:

Optional Objectives:

0.5x, 0.7x, 2.0x

Stands:

Plain Focusing Stand - 125mm black and white stage plate

Pole Stand - Rack and pinion focusing arm with 125mm black and white stage plate

Coaxial Coarse and Fine LED Stand - Variable LED incident (12v/2w) and transmitted (12v4w) coaxial coarse & fine focusing stand with stage clips, universal power supply.  Frosted, clear glass, black & white stage plates

LED Stand - Variable LED incident (12v/2w) and transmitted (12v4w) focusing stand with stage clips, universal power supply.  Frosted, clear glass, black & white stage plates

E-LED Stand - Variable LED incident and transmitted focusing stand with stage clips, universal power supply

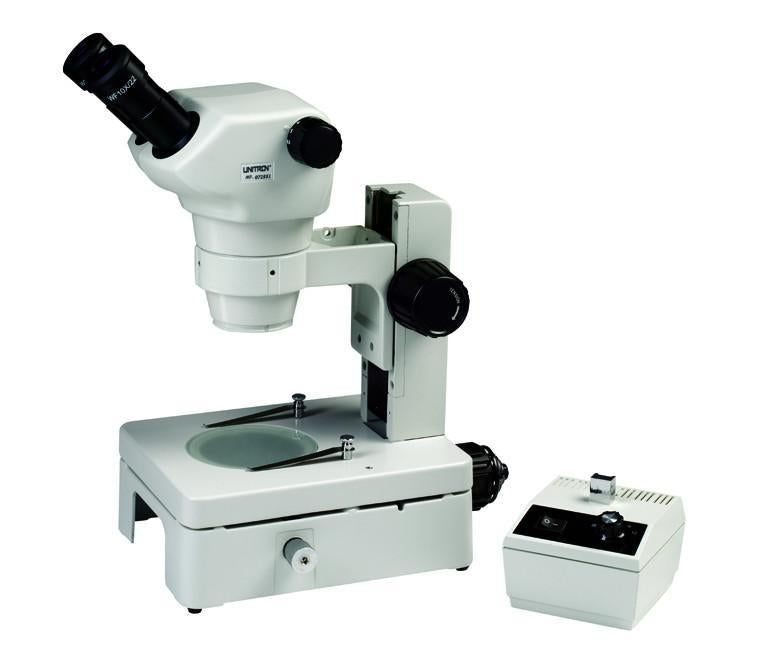

Diascopic Stand - Diascopic focusing stand with rear mount to accept halogen illuminator.  6v15w external variable halogen illuminator

Diascopic Stand w/Fiber Optic -  Diascopic focusing stand with rear mount and adapter to accept 1/2" light guide. Dolan Jenner MI-150 150w fiber optic illuminator with 15" light guide

Boom Stand - Bonder arm focusing mount, boom stand

Ball Bearing Boom Stand - Bonder arm focusing mount, ball bearing boom stand

Flex Arm Stand - Bonder arm focusing mount, flexible articulating arm stand with c-clamp mount

Accessories: Dust cover and instruction manual included
Warranty: 5 year warranty for parts and labor

Please Contact Us for all additional parts and accessories

 Brochure
