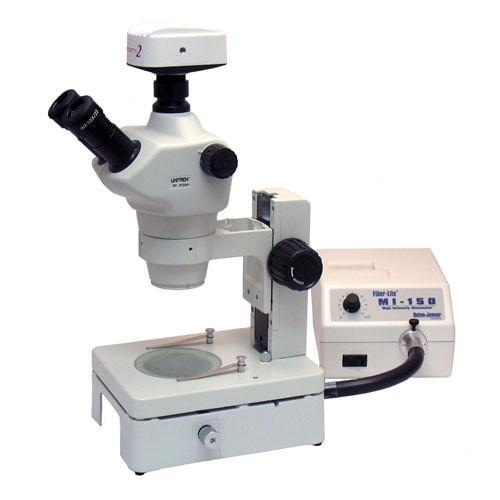

Unitron Z850 Embryo Transplant Digital Microscope - Fiber Optic

Recently viewed

Unitron Z850 Embryo Transplant Digital Microscope - Fiber Optic

Unitron Z850 Embryo Transplant Digital Microscope - Fiber Optic

  • SKU: 13133-LED-300-HD
$2,671.00
Camera
Fiber Optic
Request Quote

The Unitron Z850 Embryo Transplant Digital Microscope has a 0.8x - 5.0x zoom range and comes complete with your multi-output HD camera of choice.

 Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera (AU-300-HDS or AU-600-HDS).





Specifications
Head: Binocular OR Trinocular 50/50 Split viewing head
Eyepieces: Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view
Zoom Range: 0.8x-5x (8x-50x)

Working Distance:

 115mm
Stand:

Diascopic stand with tiltable mirror

150 Watt fiber optic halogen illuminator OR LED fiber optic illuminator

Accessories: Dust cover, power cord, instruction manual
Warranty: 5 year mechanical, 1 year electrical



AU-300-HD & AU-300-HDS Excelis Lite Specifications:
Screen:

AU-300-HDS - Comes with 11.6" Retina Display Screen

AU-300-HD - Output to your own HDMI screen or USB to computer

Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 AU-600-HD & AU-600-HDS Excelis Camera Specifications:
Screen:

AU-600-HDS - Comes with 11.6" Retina Display Screen

AU-600-HD - Output to your own HDMI screen or USB to computer

Mega Pixel 6.0 M.P.
Sensor: SONY IMX236
Sensor Size: 1/2.7” , 0.5x C-mount recommended
Live Resolution: 1920 x 1080
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001sec—10.0 sec
Settings: Auto white balance, Gain, Gamma, Saturation, Contraction
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and
annotation; flat field correction; extended depth of focus (focus
stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
Software Compatibility: Windows XP, Vista, 7, and 8 (32 or 64 bit)
Mac OSX (for image transfer to Mac OSX only)
