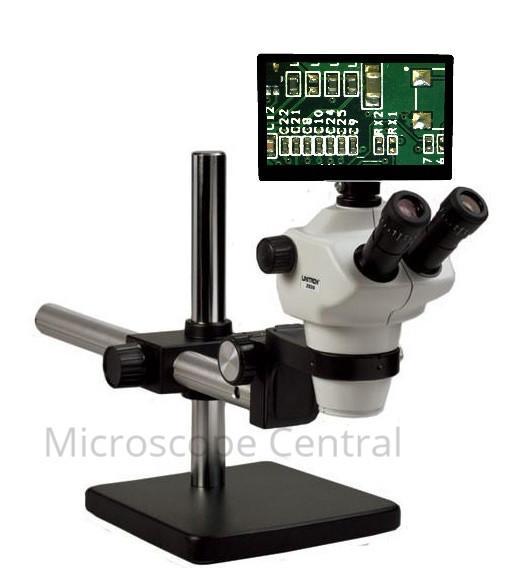

Unitron Z850 Boom Stand Digital Stereo Microscope 0.8x - 5.0x

Unitron Z850 Boom Stand Digital Stereo Microscope 0.8x - 5.0x

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications...

$1,946.00
Request Quote
Add to wishlist

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.  The Unitron Z850 offers a wide zoom range from 0.8x - 5.0x.

This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and  display a live image on a HD monitor to capture images/videos to the removable SD card.

Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS).

Microscope Specifications:
Head: Trinocular viewing head, inclined 45°, rotatable 360° w/ c-mount adapter
Eyepieces:        WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards
Magnification:  0.8x to 5.0x zoom range (8x -50x with 10x eyepieces)
Stand:

Regular boom stand

or

Ball bearing boom stand for smoother operation

Accessories: Dust Cover & Manual
Warranty: 5 Year Mechanical 5 Year Electrical



AU-300-HD Excelis Lite Specifications
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



AU-300-HDS Excelis Lite Specifications
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 AU-600-HD Excelis Camera Specifications
Mega Pixel 6.0 M.P.
Sensor: SONY IMX236
Sensor Size: 1/2.7” , 0.5x C-mount recommended
Live Resolution: 1920 x 1080
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001sec—10.0 sec
Settings: Auto white balance, Gain, Gamma, Saturation, Contraction
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and
annotation; flat field correction; extended depth of focus (focus
stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
Software Compatibility: Windows XP, Vista, 7, and 8 (32 or 64 bit)
Mac OSX (for image transfer to Mac OSX only)



AU-600-HDS Excelis Camera Specifications
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
