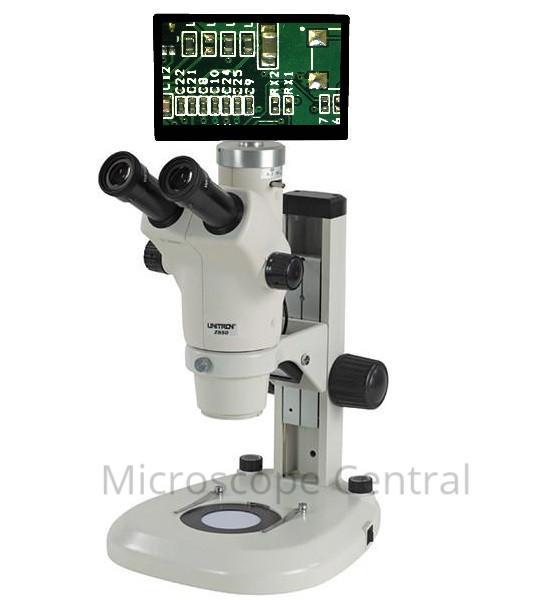

Unitron Z650HR LED Stand Digital Stereo Microscope 0.6x - 5.0x
Unitron Z650HR LED Stand Digital Stereo Microscope 0.6x - 5.0x

Unitron Z650HR LED Stand Digital Stereo Microscope 0.6x - 5.0x

  • SKU: 13431-300-HD
$2,855.00 $3,173.00
Camera
Quote Request

The Unitron Z650HR delivers higher resolution, higher contrast, and brighter images for industrial, biomedical, and educational applications than traditional Greenough stereo microscopes. The Z650HR features a 8:1 zoom ratio with a 0.6x-5x zoom range and a working distance of 115mm.

This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and  display a live image on a HD monitor to capture images/videos to the removable SD card.

Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS).

Microscope Specifications:
Head: Trinocular viewing head, 30 degree incline, 0/100 light split, with 0.55x built-in c-mount lens
Eyepieces: Widefield 10x eyepieces with built-in diopter adjustment (paired), 23mm field of view
Zoom Range: 0.6x -5x
Working Distance: 115mm
Stand: Variable 5 Watt LED incident & transmitted stand with glass plate and black/white plate
Accessories: Dust cover and instruction manual included
Warranty: 5 Year

AU-300-HD Excelis Lite Specifications
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



AU-300-HDS Excelis Lite Specifications
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year



 AU-600-HD Excelis Camera Specifications
Mega Pixel 6.0 M.P.
Sensor: SONY IMX236
Sensor Size: 1/2.7” , 0.5x C-mount recommended
Live Resolution: 1920 x 1080
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001sec—10.0 sec
Settings: Auto white balance, Gain, Gamma, Saturation, Contraction
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and
annotation; flat field correction; extended depth of focus (focus
stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
Software Compatibility: Windows XP, Vista, 7, and 8 (32 or 64 bit)
Mac OSX (for image transfer to Mac OSX only)



AU-600-HDS Excelis Camera Specifications
Screen: Mountable 11.6" Retina HD Display (mounting hardware included)
Resolution (Live): 1920X1080   6 M.P.
Sensor: 1/2.7" (0.5x C-mount recommended); SONY IMX236
Frame Rate: HDMI (60fps); USB 2.0 (30fps)
Image Capture: High Speed SD Card (8GB)
Video Capture: HDMI: 1080p, 60fps to SD Card
USB 2.0: 1080p, 30fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
