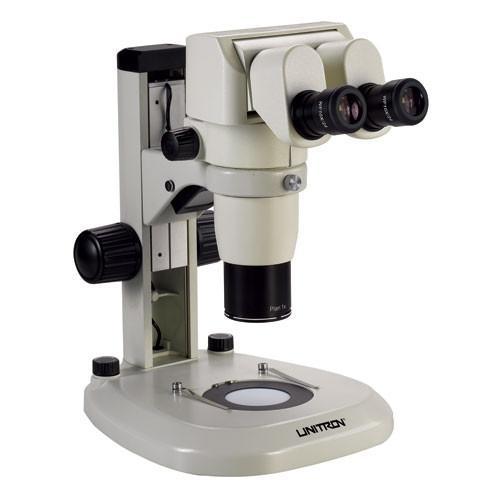

Unitron Z10 / Z8 / Z6 Zoom Stereo Microscope Series on E-LED Stand

Unitron Z10 / Z8 / Z6 Zoom Stereo Microscope Series on E-LED Stand

The UNITRON Z10 Series is a modular system designed to deliver exceptional ergonomic and optical performance. The Z10 Series is an ideal choice for medical...

Vendor :Unitron

Type :Microscope

$2,012.00
Request Quote
Add to wishlist

The UNITRON Z10 Series is a modular system designed to deliver exceptional ergonomic and optical performance. The Z10 Series is an ideal choice for medical device manufacturer’s, industrial inspection and assembly, quality control, OEM integration and research applications.

The Z10 Series offers a high depth of focus and resolution up to 289 lpm. Systems can be configured with a 10:1 (Z10), 8:1 (Z8) or a 6.3:1 (Z6) zoom ratio providing flexibility and value.

Specifications
Head: Binocular viewing head, inclined at 20° OR Ergo tilting (0° - 35°) binocular viewing head
Eyepieces: WF10x eyepieces with built-in diopter adjustment (paired), 24mm field of view - accepts 26.5mm reticle.
Magnification:

Z10 - 0.8x - 8x (8x-80x)

Z8 - 0.8x - 6.4x (8x-64x)

Z6 - 0.8x - 5x (8x-50x)

Objectives: 1.0x plan achromat objective, N.A. 0.09 (Included)
Working Distance: 78mm
Stand:                                 E-LED Stand, variable LED incident and transmitted illumination coarse focusing stand with 100mm of travel; ø76mm pod holder, stage clips, universal power supply
Accessories: Dust cover, eyeguards and instruction manual.
Warranty: 1 year electrical & 5 year mechanical
