  • SKU: 15000-BF-AU-300-HD
$10,060.00 $12,738.00
  • Choose With or Without Screen
  • Heavy Duty Microscope
  • 5x, 10x, 20x, 50x Objectives
  • Large XY Stage
  • 5 Year Mechanical Warranty
Camera
Request Quote

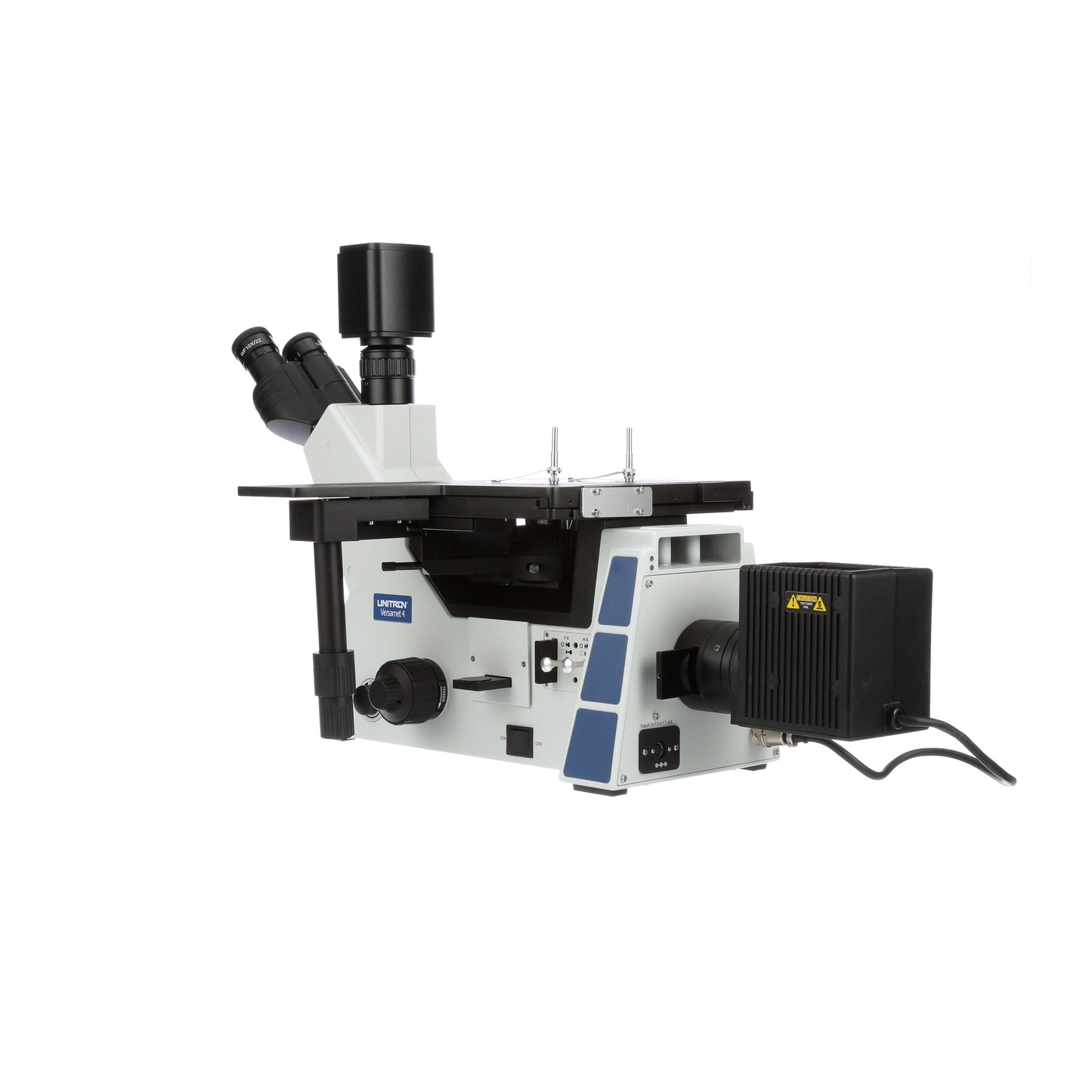

The Unitron Versamet 4 inverted metallurgical microscope is a solid robust microscope for metallurgy, smelt, heat treatment, raw material inspection, material processing, food safety evaluation, medical/clinical testing, and geological testing applications. The microscope comes standard with a trinocular viewing head and 10x/22mm FOV eyepieces. Also included are infinity M LWD Plan Achromat 5x, 10x, 20x, and semi-apo 50x objectives. The microscope is quipped with an encoded nosepiece and an ECO infrared sensor which helps save energy turning the microscope light off when not in use. To help reduce glare and reflection a simple polarizer and analyzer are included.

You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC. If you do not select the screen, you can still output HDMI to your own screen off to the side, or USB to a computer. The screen serves as an all-in-one streamlined solution. The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. In HDMI mode on-board software pops up on your screen allowing you to control the camera with the included mouse. The camera can also output to a PC for use with the free feature rich software -  image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: 45° inclined trinocular viewing head with 50-75mm interpupillary adjustment. Viewing 100% binocular or 100% trinocular
Eyepieces: WF10x/22mm focusing eyepieces with roll-down eyeguards
Objectives: Infinity M LWED Plan Achromat 5x, 10x, 20xR and semi-apo 50x objectives

Nosepiece: Encoded quintuple revolving nosepiece
Polarizer/Analyzer: Simple polarizer/analyzer -  blue, green, and LBD filters
Stage: Integrated three layer rackless mechanical stage right hand coaxial controls, movement range 50 x 50mm. ø12mm and ø25mm teardrop stage plate inserts, crescent-shaped stage plate insert to allow for rotation of high magnification objectives
Focusing: Coaxial coarse and fine adjustment
Illuminator: 12v 100w Halogen
Warranty: Five Year warranty.



AU-300-HD Excelis Lite Specifications:
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Screen: Optional 11.6" Viewing Screen
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 Year
