  • Product SKU: 15000-BD
$10,000.00 $11,650.00
Request Quote

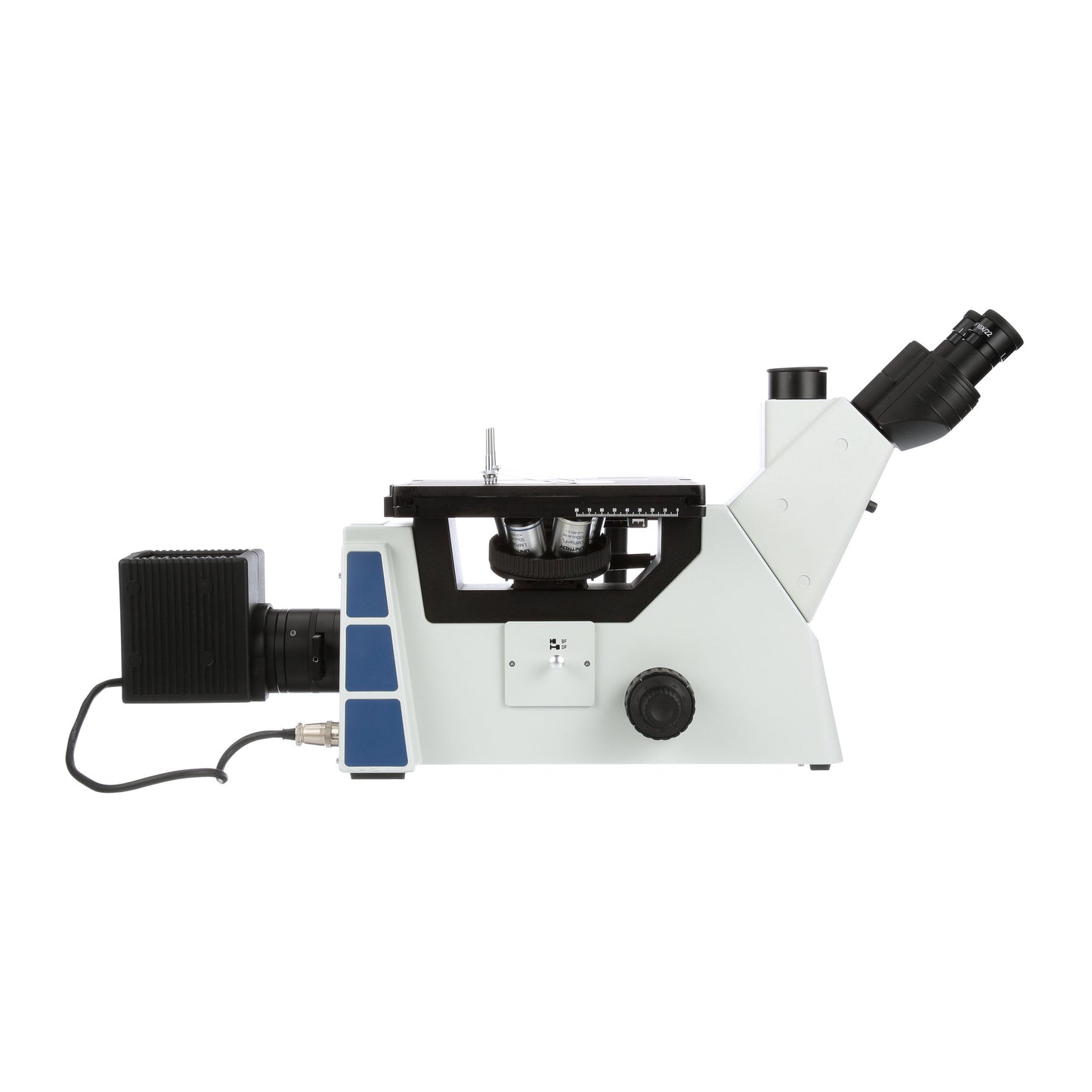

The Unitron Versamet 4 inverted metallurgical microscope is a solid robust microscope for metallurgy, smelt, heat treatment, raw material inspection, material processing, food safety evaluation, medical/clinical testing, and geological testing applications. This option is for the brightfield / darkfield configuration.The microscope comes standard with a trinocular viewing head and 10x/22mm FOV eyepieces. Also included are infinity M LWD Plan Achromat Brightfield / Darkfield 5x, 10x, 20x, and semi-apo 50x objectives. The microscope is quipped with an encoded nosepiece and an ECO infrared sensor which helps save energy turning the microscope light off when not in use. To help reduce glare and reflection a simple polarizer and analyzer are included.

Specifications
Head: 45° inclined trinocular viewing head with 50-75mm interpupillary adjustment. Viewing 100% binocular or 100% trinocular
Eyepieces: WF10x/22mm focusing eyepieces with roll-down eyeguards
Objectives: Infinity M LWED Plan Achromat Brightfield / Darkfield 5x, 10x, 20xR and semi-apo 50x objectives

Nosepiece: Encoded quintuple revolving nosepiece
Polarizer/Analyzer: Simple polarizer/analyzer -  blue, green, and LBD filters
Stage: Integrated three layer rackless mechanical stage right hand coaxial controls, movement range 50 x 50mm. ø12mm and ø25mm teardrop stage plate inserts, crescent-shaped stage plate insert to allow for rotation of high magnification objectives
Focusing: Coaxial coarse and fine adjustment
Illuminator: 12v 100w Halogen
Warranty: Five Year warranty.



The Unitron Versamet 4 inverted metallurgical microscope is a solid robust microscope for metallurgy, smelt, heat treatment, raw material inspection, material processing, food safety evaluation, medical/clinical testing, and geological testing applications. This option is for the brightfield / darkfield configuration.The microscope comes standard with a trinocular viewing head and 10x/22mm FOV eyepieces. Also included are infinity M LWD Plan Achromat Brightfield / Darkfield 5x, 10x, 20x, and semi-apo 50x objectives. The microscope is quipped with an encoded nosepiece and an ECO infrared sensor which helps save energy turning the microscope light off when not in use. To help reduce glare and reflection a simple polarizer and analyzer are included.

Specifications
Head: 45° inclined trinocular viewing head with 50-75mm interpupillary adjustment. Viewing 100% binocular or 100% trinocular
Eyepieces: WF10x/22mm focusing eyepieces with roll-down eyeguards
Objectives: Infinity M LWED Plan Achromat Brightfield / Darkfield 5x, 10x, 20xR and semi-apo 50x objectives

Nosepiece: Encoded quintuple revolving nosepiece
Polarizer/Analyzer: Simple polarizer/analyzer -  blue, green, and LBD filters
Stage: Integrated three layer rackless mechanical stage right hand coaxial controls, movement range 50 x 50mm. ø12mm and ø25mm teardrop stage plate inserts, crescent-shaped stage plate insert to allow for rotation of high magnification objectives
Focusing: Coaxial coarse and fine adjustment
Illuminator: 12v 100w Halogen
Warranty: Five Year warranty.
